Network Settings

IP address, IP subnet, IP gateway, and Device Description are

configured through the web interface. IP address and subnet

defaults to 192.168.0.100 and 255.255.255.0. Connection

to the web interface requires an Ethernet crossover cable,

power to the flow meter, and a PC with a web browser.

Typing http://192.168.0.100 in the address bar will allow

connection to the flow meter’s web interface for editing.
Access to the flow meter’s data requires the entry of a

username and password. The flow meter’s default username

is admin and the password is blank from the factory.

OTE:

N

Changing the IP address will require use of the

new number when trying to access the web page.

Each meter must be setup with a unique IP address

when trying to network multiple units. Important!

When changes are made to the IP address, the

new number must be retained by the user for

future access.

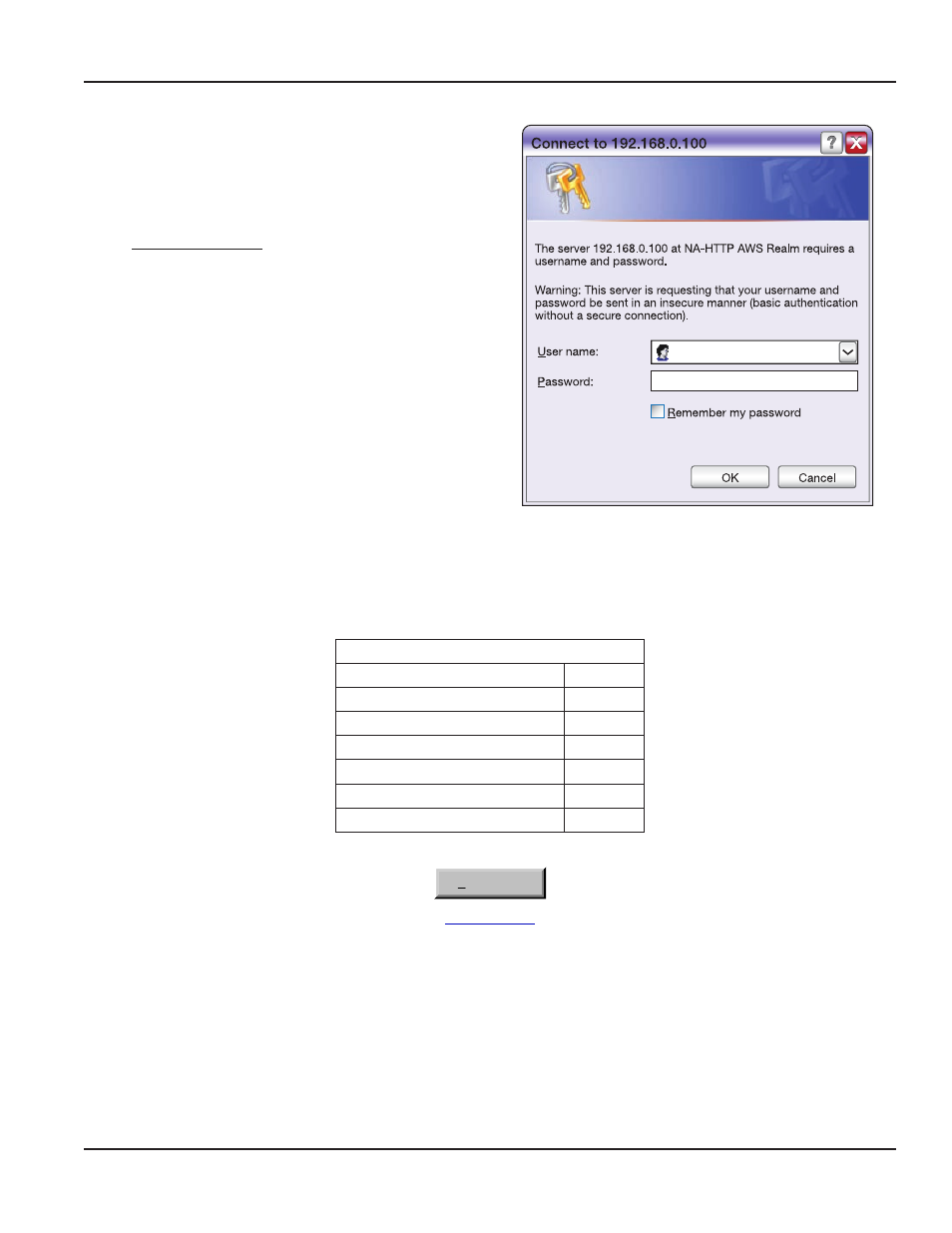

Figure 57: Network login screen

Main Page

The Main Page refreshes itself every 5 seconds and provides real time data from the meter.

AIN PAGE

Enter location information here

Device Values

Signal Strength

22.8

Flow Rate

100.4

Net Totalizer

1659.1

Positive Totalizer

1659.1

Negative Totalizer

0.0

Temp 1

26.5

Temp 2

48.7

This page will automatically refresh every 5 seconds

R eset Totalize rs

Configuration

COMMUNICATIONS PROTOCOLS
