ALARM OUTPUTS

The flow rate output permits output changeover at two separate flow rates allowing operation with an adjustable switch

deadband.

Figure 27

illustrates how the setting of the two set points influences rate alarm operation.

A single-point flow rate alarm would place the ON setting slightly higher than the OFF setting allowing a switch deadband to

be established. If a deadband is not established, switch chatter (rapid switching) may result if the flow rate is very close to the

switch point.

Minimum

Flow

Maximum

Flow

Output ON

Set OFF

Set ON

Deadband

Output OFF

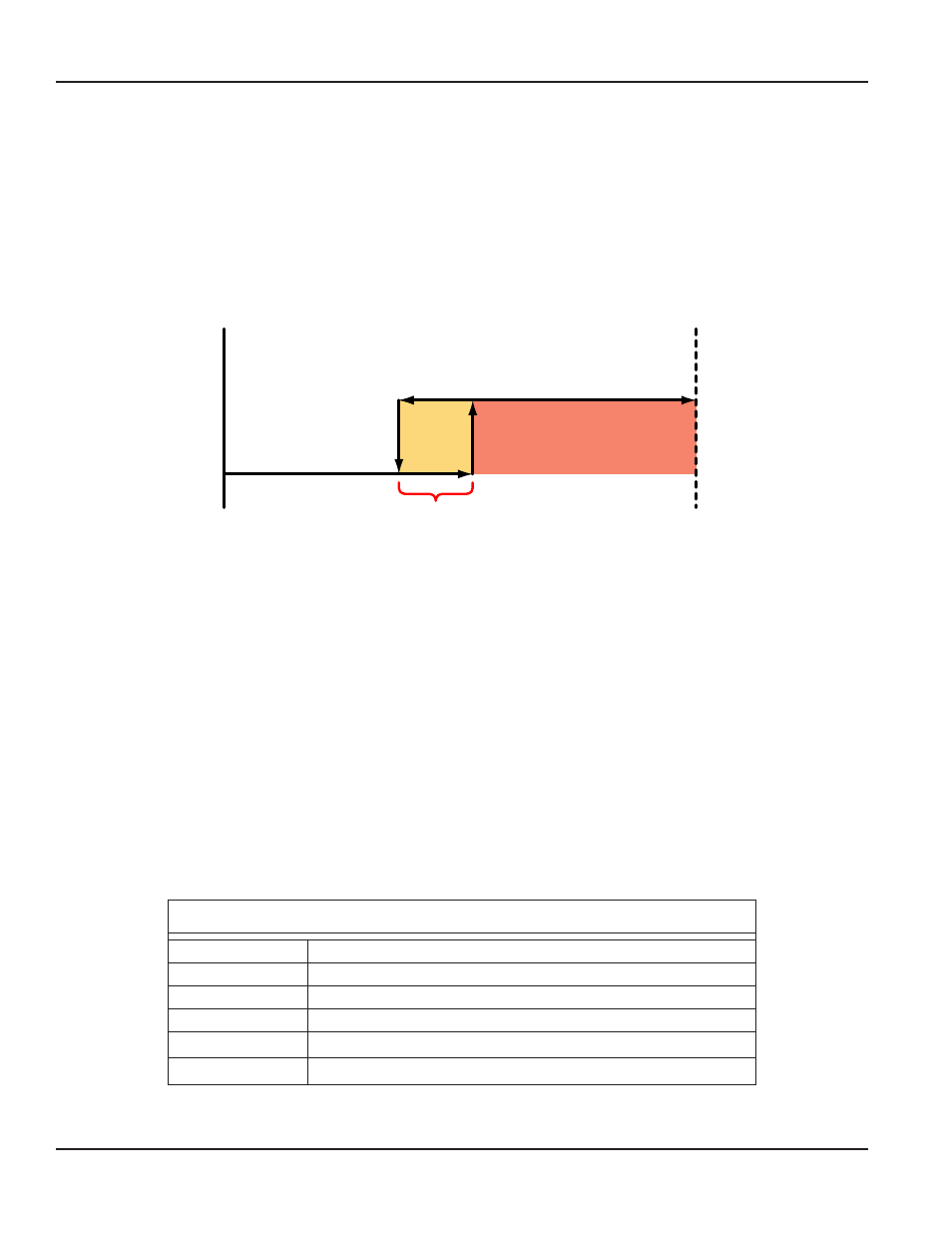

Figure 27: Single point alarm operation

OTE:

N

All control outputs are disabled when USB cable is connected.

Batch/Totalizer Output for Flow Only Version

Totalizer mode configures the output to send a 100 mSec pulse each time the display totalizer increments divided by the TOT

MULT. The TOT MULT value must be a whole, positive, numerical value. This output is limited to 1 Hz maximum.
For example, if the totalizer exponent TOTL E is set to E0 ×1 and the totalizer multiplier TOT MULT is set to 1, then the output

will pulse each time the totalizer increments one count, or each single, whole measurement unit totalized.
If the totalizer exponent TOTL E is set to E2 ×100 and the totalizer multiplier TOT MULT is set to 1, then the control output will

pulse each time the display totalizer increments or once per 100 measurement units totalized.
If the totalizer exponent TOTL E is set to E0 ×1 and the totalizer multiplier TOT MULT is set to 2, the control output will pulse

once for every two counts that the totalizer increments.

Totalizer Output Option for Energy Meter

Energy units can be ordered with a totalizer pulse output option. This option is installed in the position where the Ethernet

option would normally be installed.
Optional Totalizing Pulse Specifications

Optional Energy Usage Totalizing Pulse Output

Signal

One pulse for each increment of the totalizers least significant digit.

Type

Opto-isolated, open collector transistor

Pulse Width

30 mSec, maximum pulse rate 16 Hz.

Voltage

28V DC maximum.

Current

100 mA maximum (current sink).

Pullup Resistor

2.8 …10 k Ohms

OTE:

N

The totalizer pulse output option and the Ethernet communications output can not be installed in the same energy

unit at the same time.
