TOP VIEW

OF PIPE

W-Mount

V-Mount

Z-Mount

TOP VIEW

OF PIPE

TOP VIEW

OF PIPE

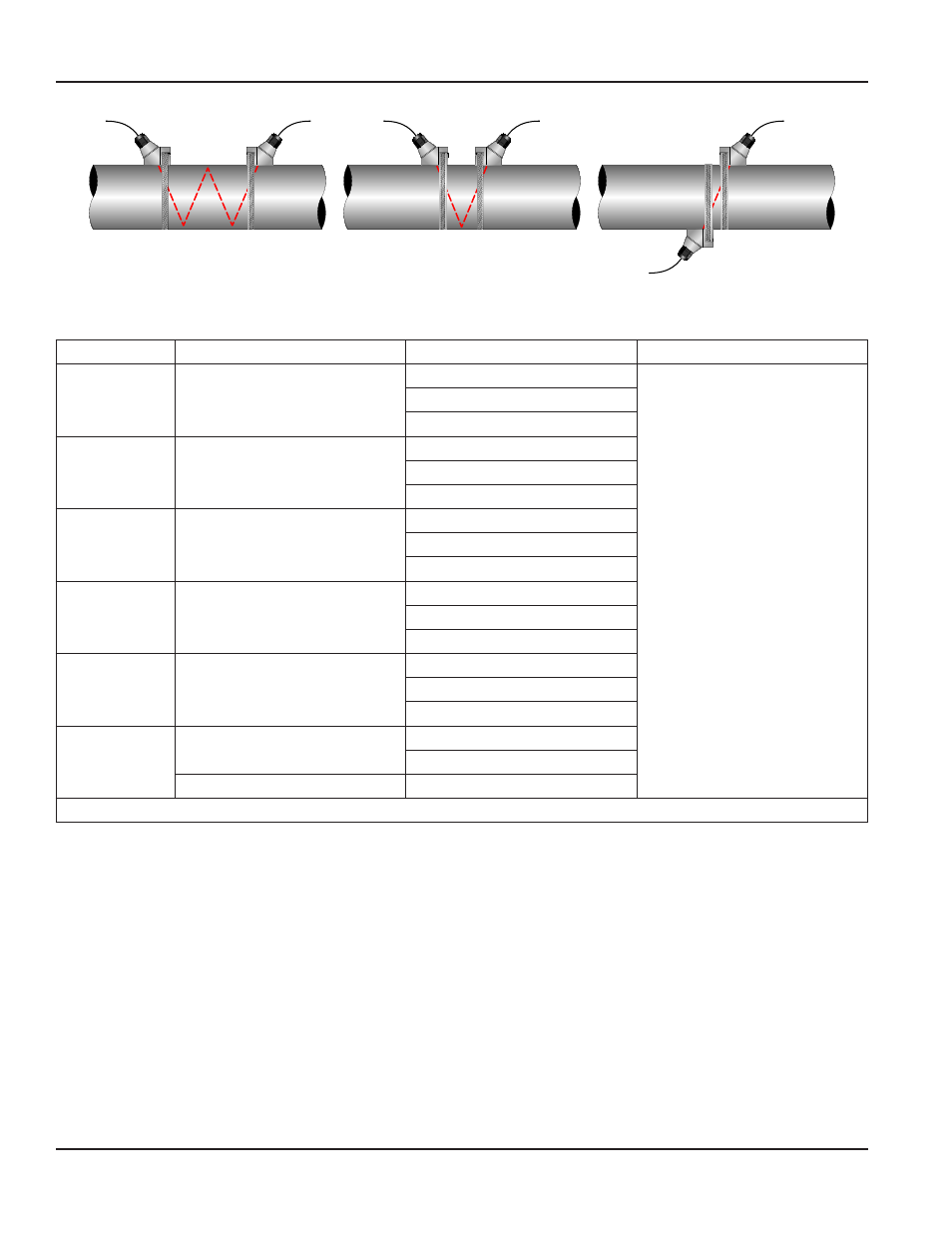

Figure 9: Transducer mounting modes — DTTN, DTTL and DTTH

Size

Frequency Setting

Transducer

Mounting Mode

1/2

2 MHz

DTTSnP

V

DTTSnC

DTTSnT

3/4

2 MHz

DTTSnP
DTTSnC

DTTSnT

1

2 MHz

DTTSnP
DTTSnC

DTTSnT

1-1/4

2 MHz

DTTSnP
DTTSnC

DTTSnT

1-1/2

2 MHz

DTTSnP
DTTSnC

DTTSnT

2

1 MHz

DTTSnP
DTTSnC

2 MHz

DTTSnT

DTTS transducer designation refers to both DTTS and DTTC transducer types.

Table 3: Transducer mounting modes — DTTS / DTTC

For pipes 24 inch (600 mm) and larger the DTTL transducers using a transmission frequency of 500 kHz are recommended.
DTTL transducers may also be advantageous on pipes between 4…24 inches if there are less quantifiable complicating

aspects such as – sludge, tuberculation, scale, rubber liners, plastic liners, thick mortar, gas bubbles, suspended solids,

emulsions, or pipes that are perhaps partially buried where a V-mount is required/desired, etc.
