Frequency Output [Flow Only Models]

The frequency output is an open-collector transistor circuit that outputs a pulse waveform that varies proportionally with flow

rate. This type of frequency output is also know as a “Rate Pulse” output. The output spans from 0 Hz, normally at zero flow

rate to 1000 Hz at full flow rate (configuration of the MAX RATE parameter is described in detail in the flow meter configuration

section of this manual).

90-265 VAC
AC Neutral
Signal Gnd.

Control 2
Frequency Out
4-20 mA Out
Reset Total

10k

+V

1

2

3

4

O

N

Control 1

SW4 Closed
SW4 Open

Frequency Output

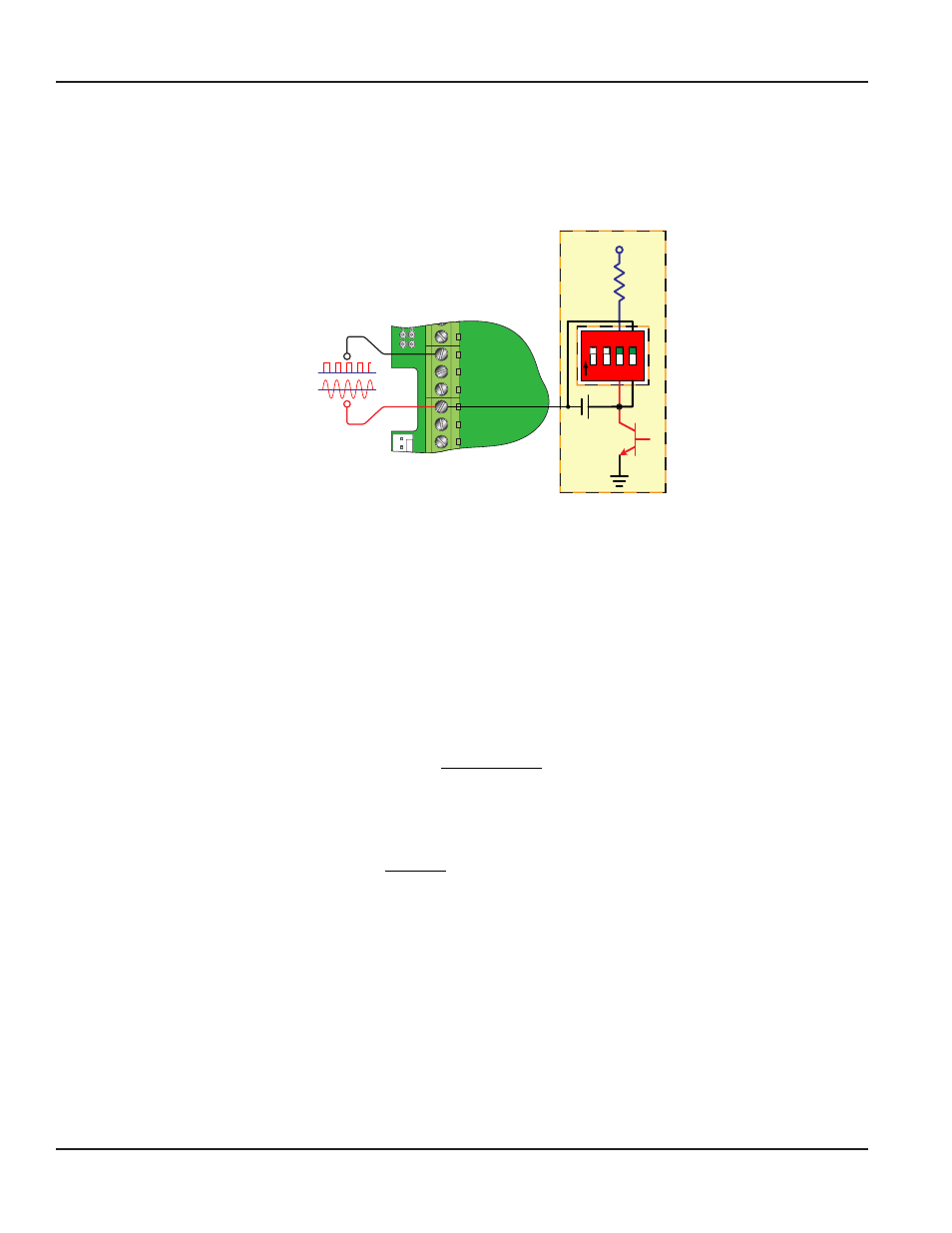

Figure 29: Frequency output switch settings

The frequency output is proportional to the maximum flow rate entered into the meter. The maximum output frequency is

1000 Hz.

OTE:

N

When USB programming cable is connected, the RS485 and frequency outputs are disabled.

If, for example, the MAX RATE parameter was set to 400 gpm then an output frequency of 500 Hz (half of the full scale

frequency of 1000 Hz) would represent 200 gpm.
In addition to the control outputs, the frequency output can be used to provide total information by use of a K factor. A K

factor simply relates the number of pulses from the frequency output to the number of accumulated pulses that equates to a

specific volume.
For this meter the relationship is described by the following equation. The 60,000 relates to measurement units in volume/

min. Measurement units in seconds, hours or days would require a different numerator.

60,000

K factor

Full Scale Units

=

A practical example would be if the MAX RATE for the application were 400 gpm, the K factor (representing the number of

pulses accumulated needed to equal one gallon) would be:

60,000

150

400

Pulses Per Gallon

gpm

K factor =

=

If the frequency output is to be used as a totalizing output, the flow meter and the receiving instrument must have identical K

factor values programmed into them to ensure that accurate readings are being recorded by the receiving instrument. Unlike

standard mechanical flow meters such as turbines, gear or nutating disk meters, the K factor can be changed by modifying

the MAX RATE flow rate value.

OTE:

N

For a full treatment of K factors please see the

APPENDIX

of this manual.

There are two frequency output types available:
1. Turbine meter simulation – This option is utilized when a receiving instrument is capable of interfacing directly with a

turbine flow meter’s magnetic pickup. The output is a relatively low voltage AC signal whose amplitude swings above and

below the signal ground reference. The minimum AC amplitude is approximately 500 mV peak-to-peak. To activate the

turbine output circuit, turn SW4 OFF.

ALARM OUTPUTS
