DC Power Connections

The flow meter may be operated from a 10…28V DC source, as long

as the source is capable of supplying a minimum of 5 Watts of power.
Connect the DC power to 10…28V DC In, power gnd., and chassis

gnd., as in Figure 1.6.

OTE:

N

DC powered versions are protected by an automatically

resetting fuse. This fuse does not require replacement.

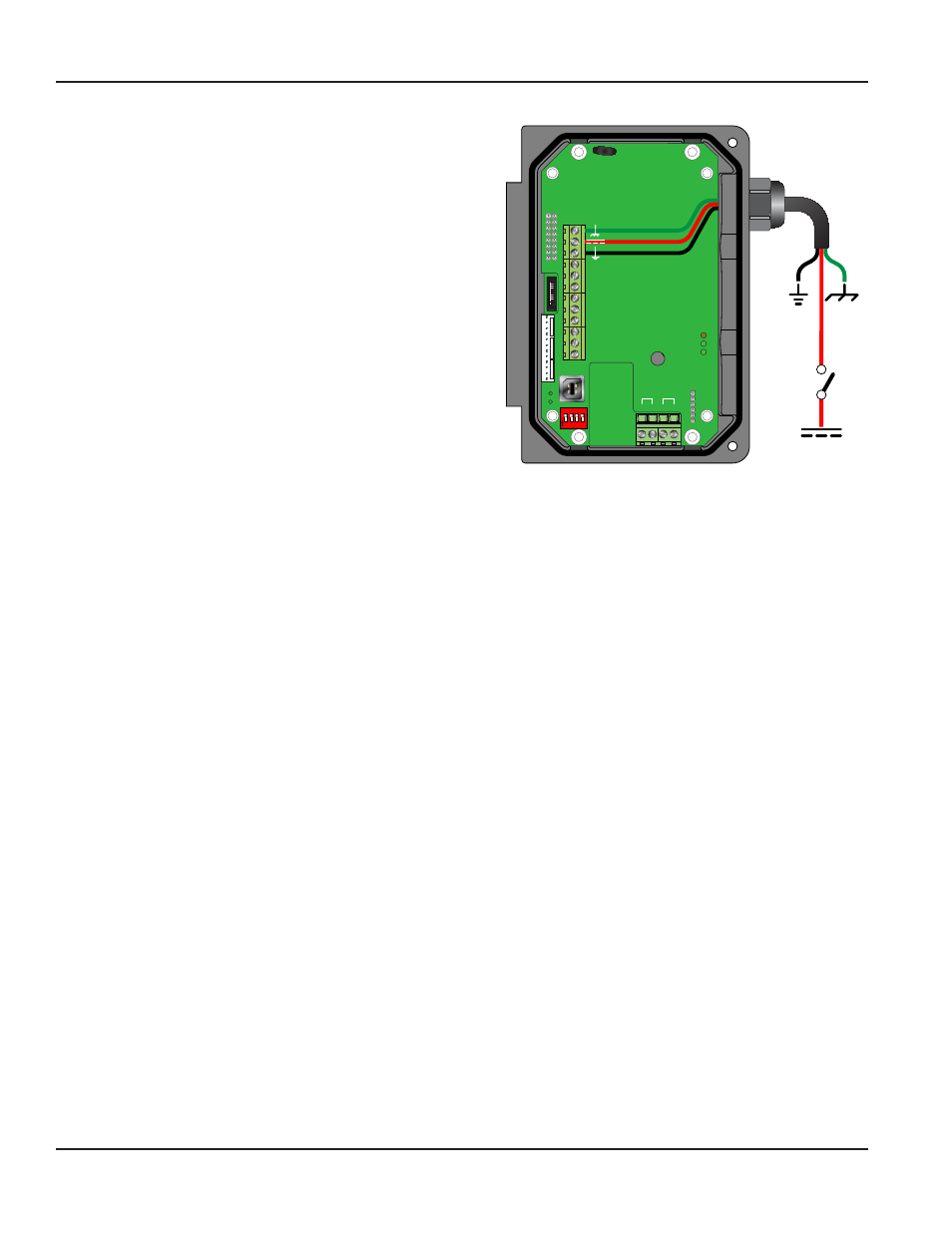

Figure 8: DC Power connections

10 - 28 VDC

Power Gnd.

D

ownstr

eam

Upstr

eam

+

+

- -

Modbus

TFX Rx

TFX Tx

1

2

3

4

O

N

Signal Gnd.
Control 1
Control 2
Frequency Out
4-20 mA Out
Reset Total
RS485 Gnd
RS485 A(-)
RS485 B(+)

10…28 VDC

Power

Ground

Chassis

Ground

10 - 28 VDC

Power Gnd.

Switch

or

Circuit

Breaker

TRANSMITTER INSTALLATION

Page 16

March 2014
