Extron Electronics DMP 128 User Guide User Manual
Page 45

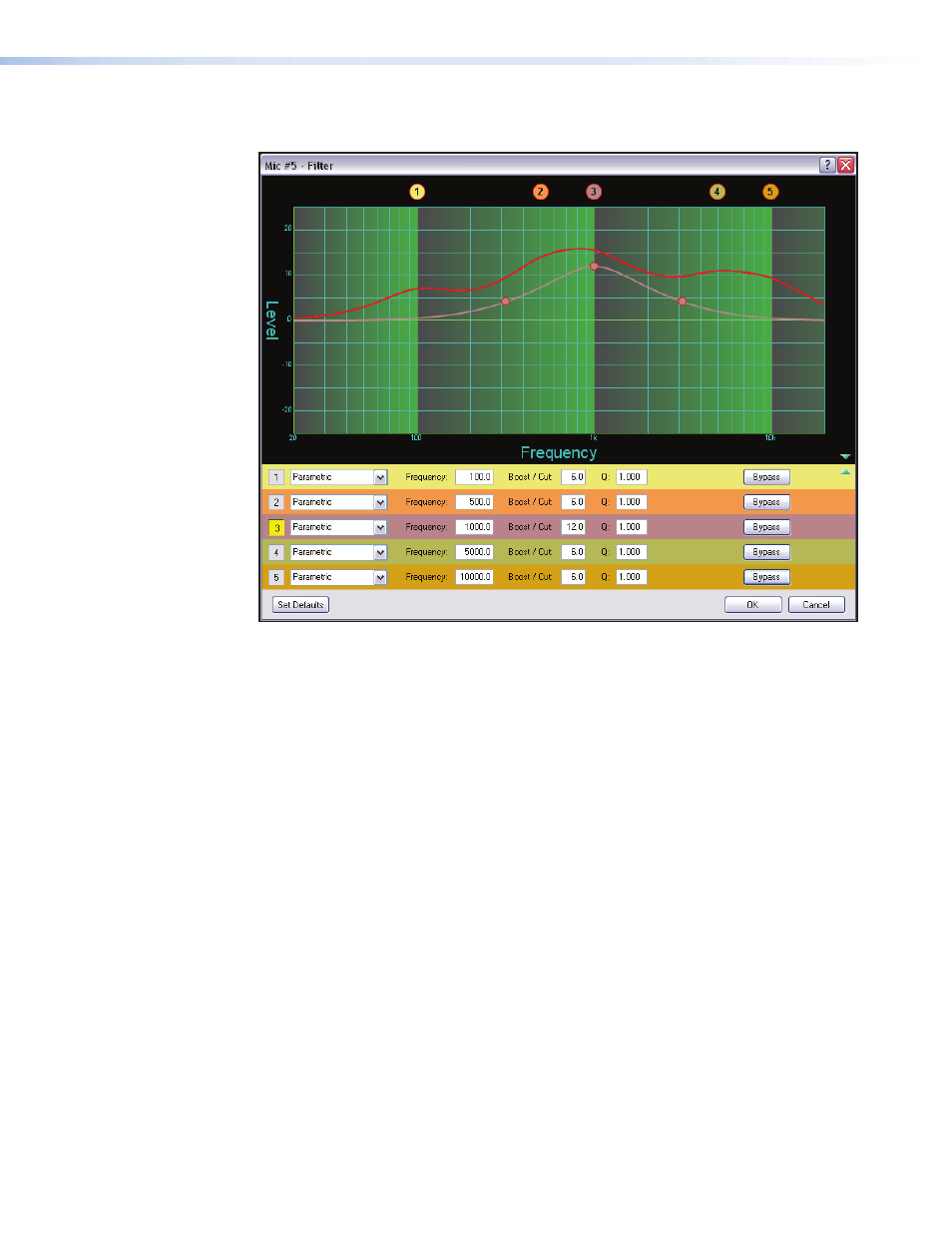

The overall frequency response is now shown as a solid red line with the filter in focus
located in row 3 (see figure 30 below) shown in the color of its table row.
Figure 30.
All Parametric Filters Active
The parametric filter allows frequency selection accurate to 0.1 Hz and either 6 or 12 dB
of slope.
DMP 128 • Software Control
39
