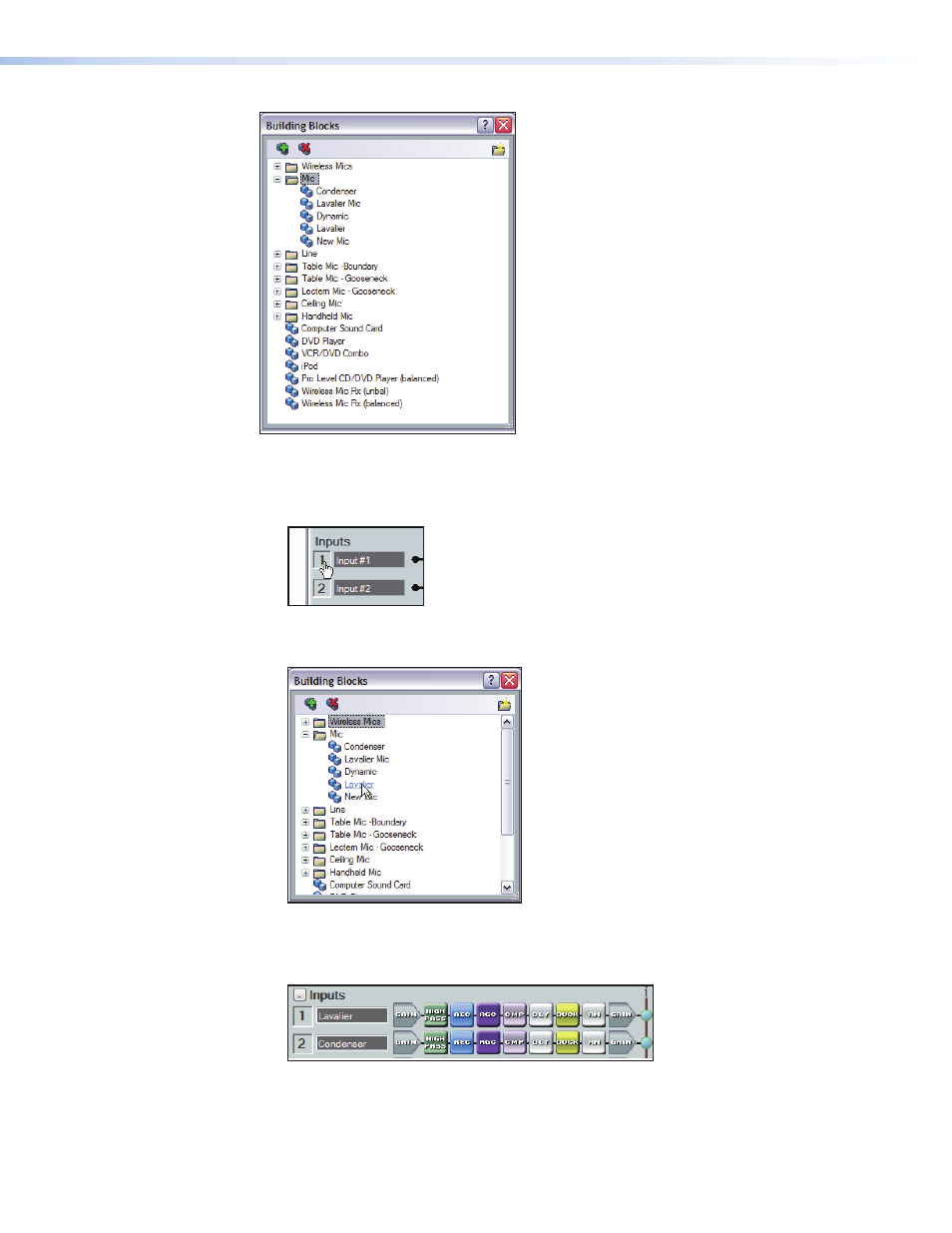

Figure 65. Building Blocks Dialog Box
The following steps select a lavalier microphone configuration for input #1.
1. Click the Input 1 box.
The Building Blocks dialog box (see figure 65) opens.
2. Select Lavalier by placing the mouse over the text Lavalier.
The selected text changes color and is underlined. Click the selection.
3. The input channel loads the pre-configured processor blocks, sets the gain, and
names the channel Lavalier.
The building blocks can be renamed and processor blocks further customized according
to the requirements of the system.
DMP 128 • Software Control 106
