Rate Limiting
You can set up every port ‘s frame limitation type and bandwidth rate.

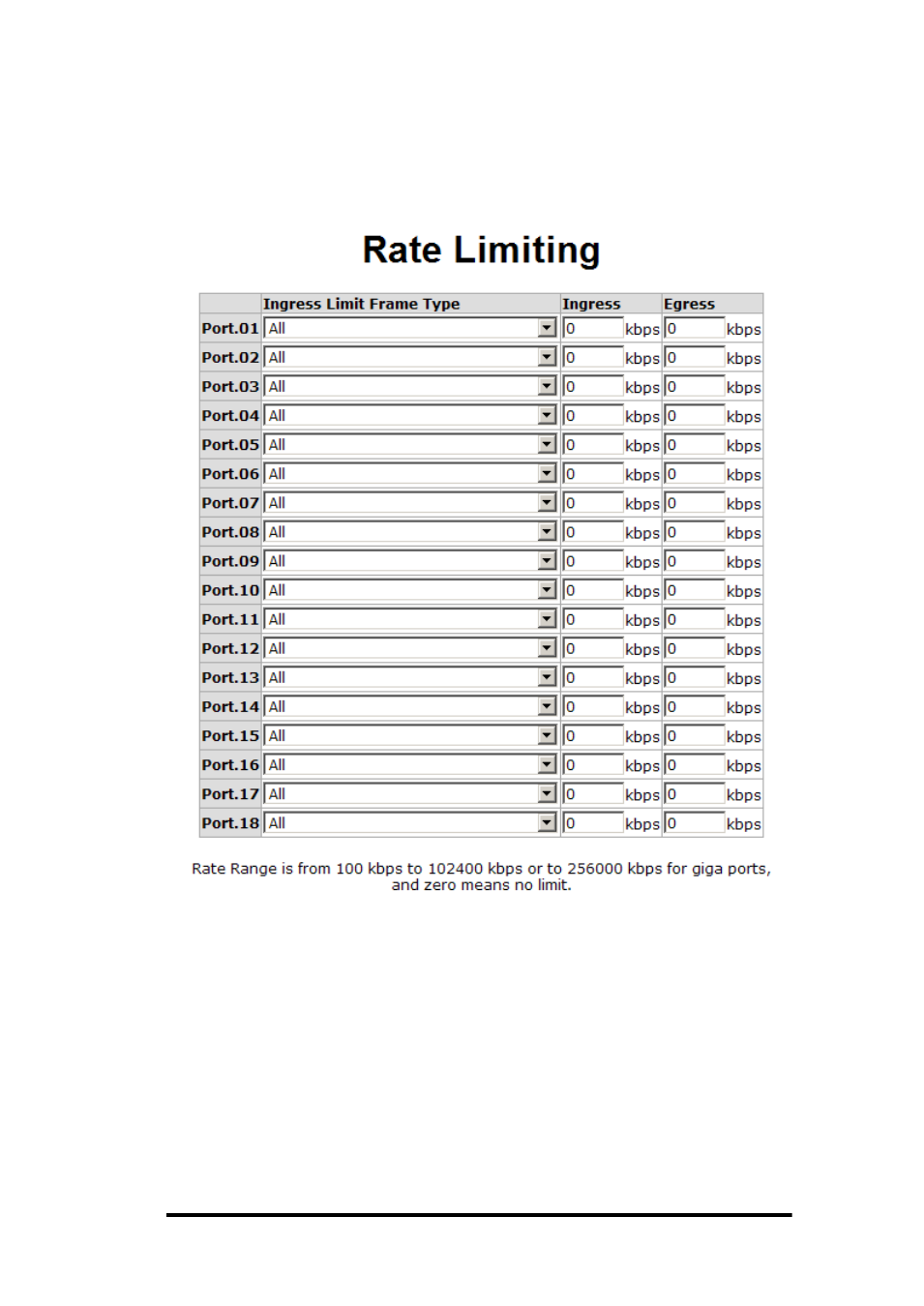

Rate Limiting interface
 Ingress Limit Frame type: Select the frame type you want to filter. The
frame types have 4 options for selecting: All,
Broadcast/Multicast/Flooded Unicast, Broadcast/Multicast, and
Broadcast only.
The four frame type options are for ingress frames limitation. The
egress rate only supports
‗All‘ type.
 All the ports support port ingress and egress rate control. For example,
