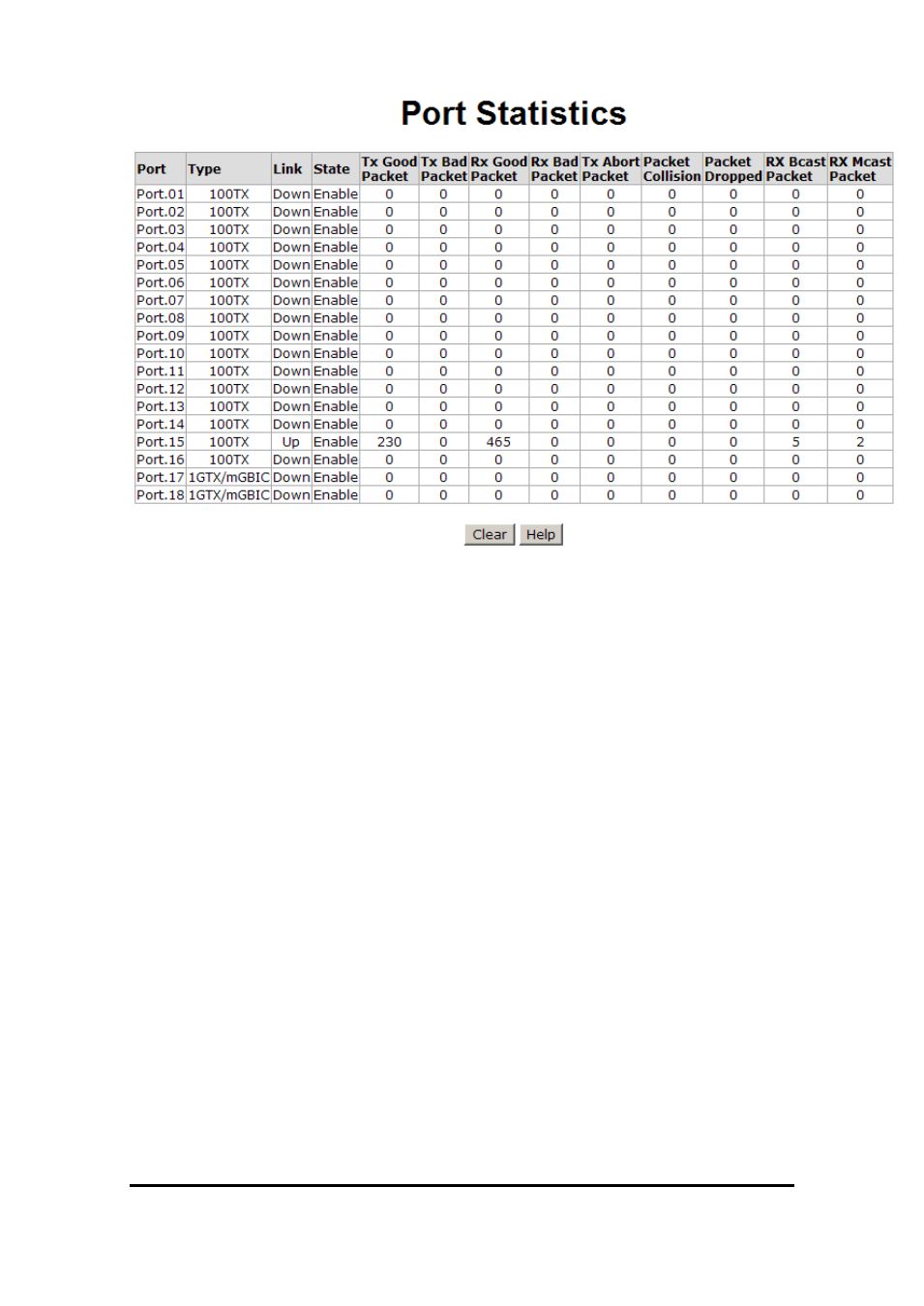

Port Statistics interface
Port Control
In Port control, you can view and set the operation mode of each port.
1. Port: Select the port that you want to configure.
2. State: Current port status. The port can be set to disable or enable
mode. If the port state is set as ‗Disable‘, it will not receive or transmit
any packet.
3. Negotiation: Auto and Force. Being set as Auto, the speed and duplex
mode are negotiated automatically. When you set it as Force, you have
to assign the speed and duplex mode manually.
4. Speed: It is available for selecting when the Negotiation column is set
as Force. When the Negotiation column is set as Auto, this column is
read only.
5. Duplex: It is available for selecting when the Negotiation column is set
as Force. When the Negotiation column is set as Auto, this column is
read only.
