Wall Mount Plate Mounting
Follow the below steps to mount the industrial switch with wall mount plate.
1. Remove the DIN-Rail from the industrial switch; loose the screws to
remove the DIN-Rail
2. Place the wall mount plate on the rear panel of the industrial switch
3. Use the screws to screw the wall mount plate on the industrial switch
4. Use the hook holes at the corners of the wall mount plate to hang the
industrial switch on the wall
5. To remove the wall mount plate, reverse steps above

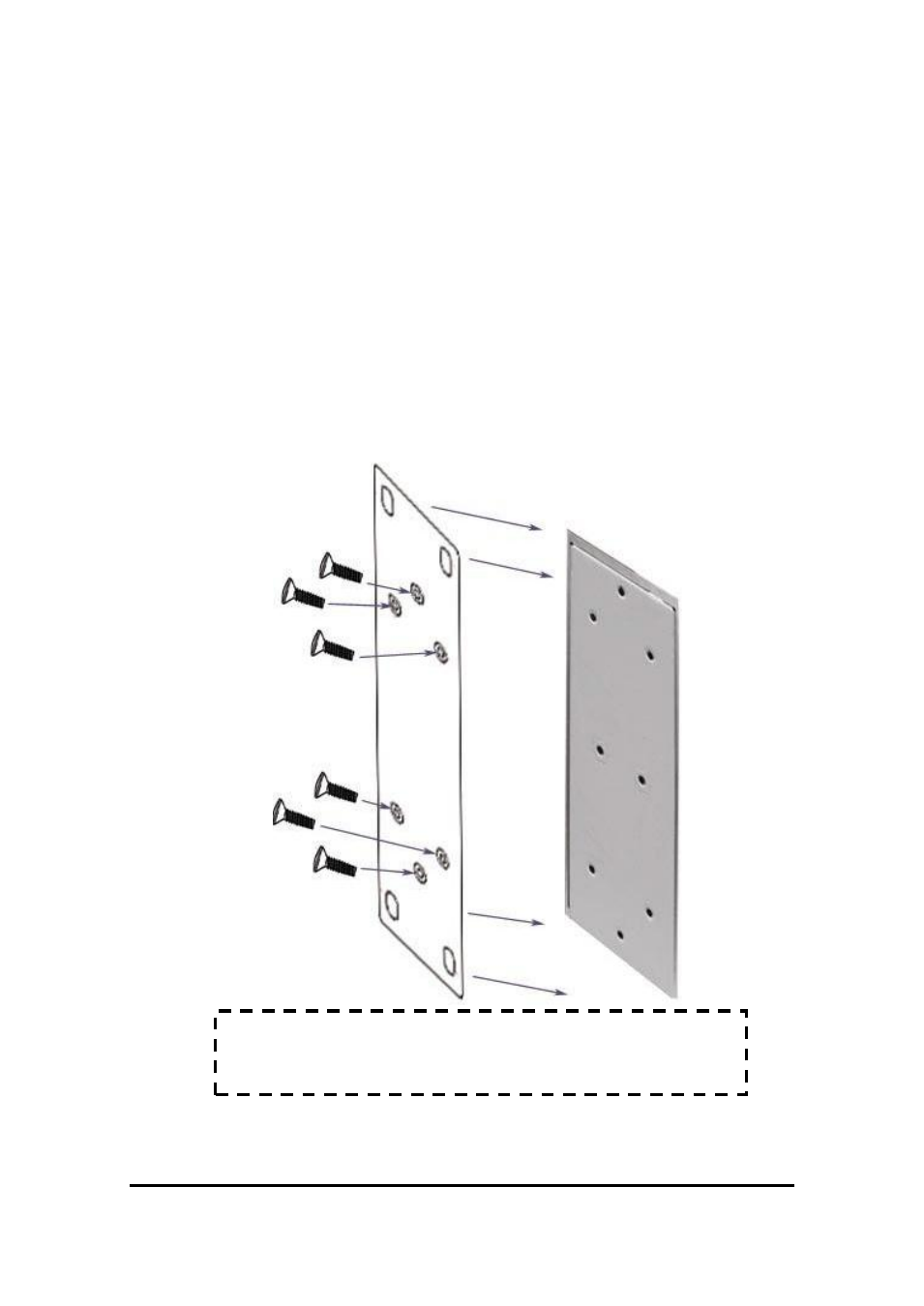

Screwing the wall mount plate on the Industrial media
converter
