Console Management

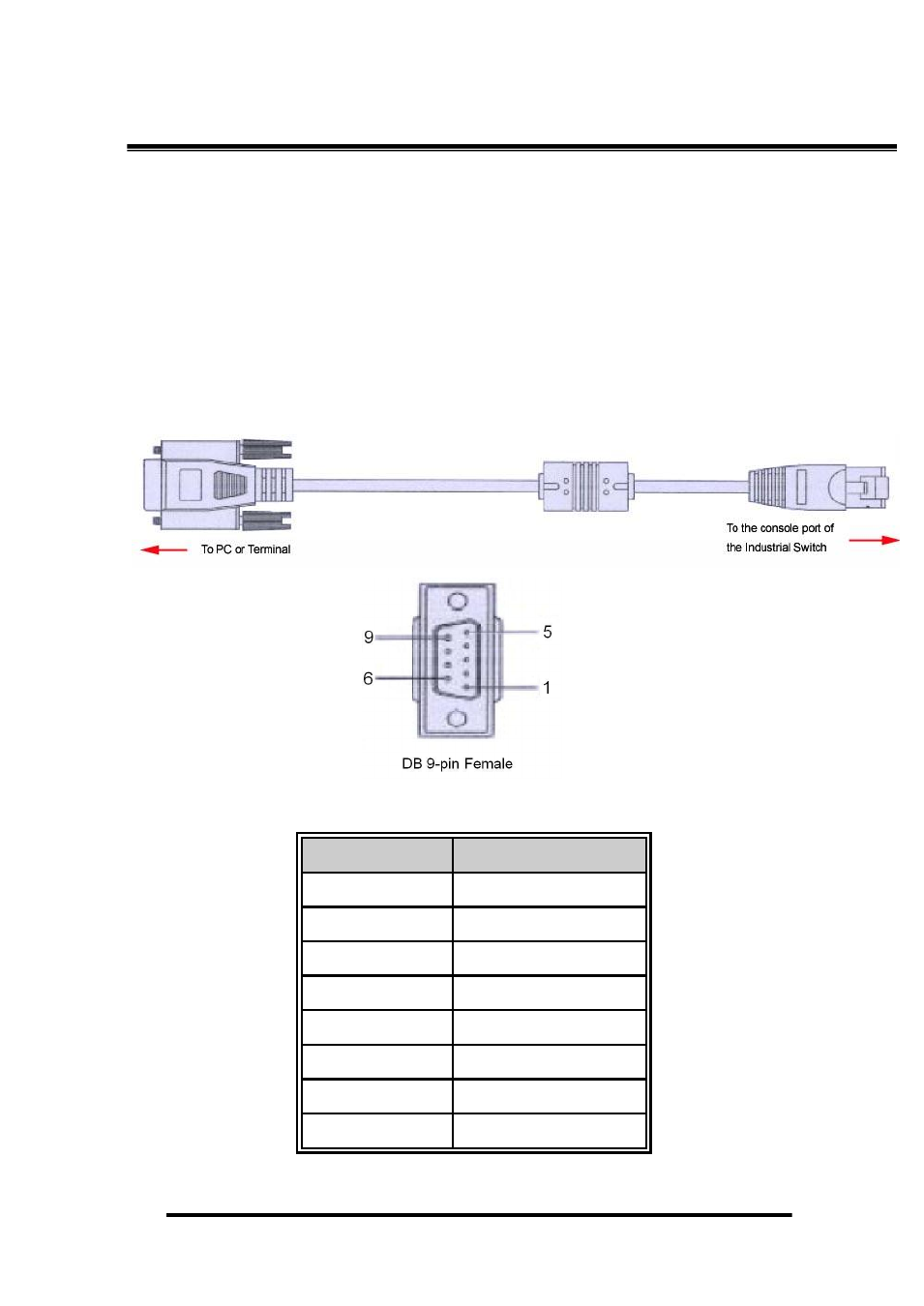

Connecting to the Console Port
The supplied cable which one end is RS-232 connector and the other end is
RJ-45 connector. Attach the end of RS-232 connector to PC or terminal and
the other end of RJ-45 connector to the console port of the switch. The
connected terminal or PC must support the terminal emulation program.
Pin Assignment
DB9 Connector RJ-45 Connector
NC 1 Orange/White
2 2 Orange
3 3 Green/White
NC 4 Blue
5 5 Blue/White
NC 6 Green
NC 7 Brown/White
NC 8 Brown
