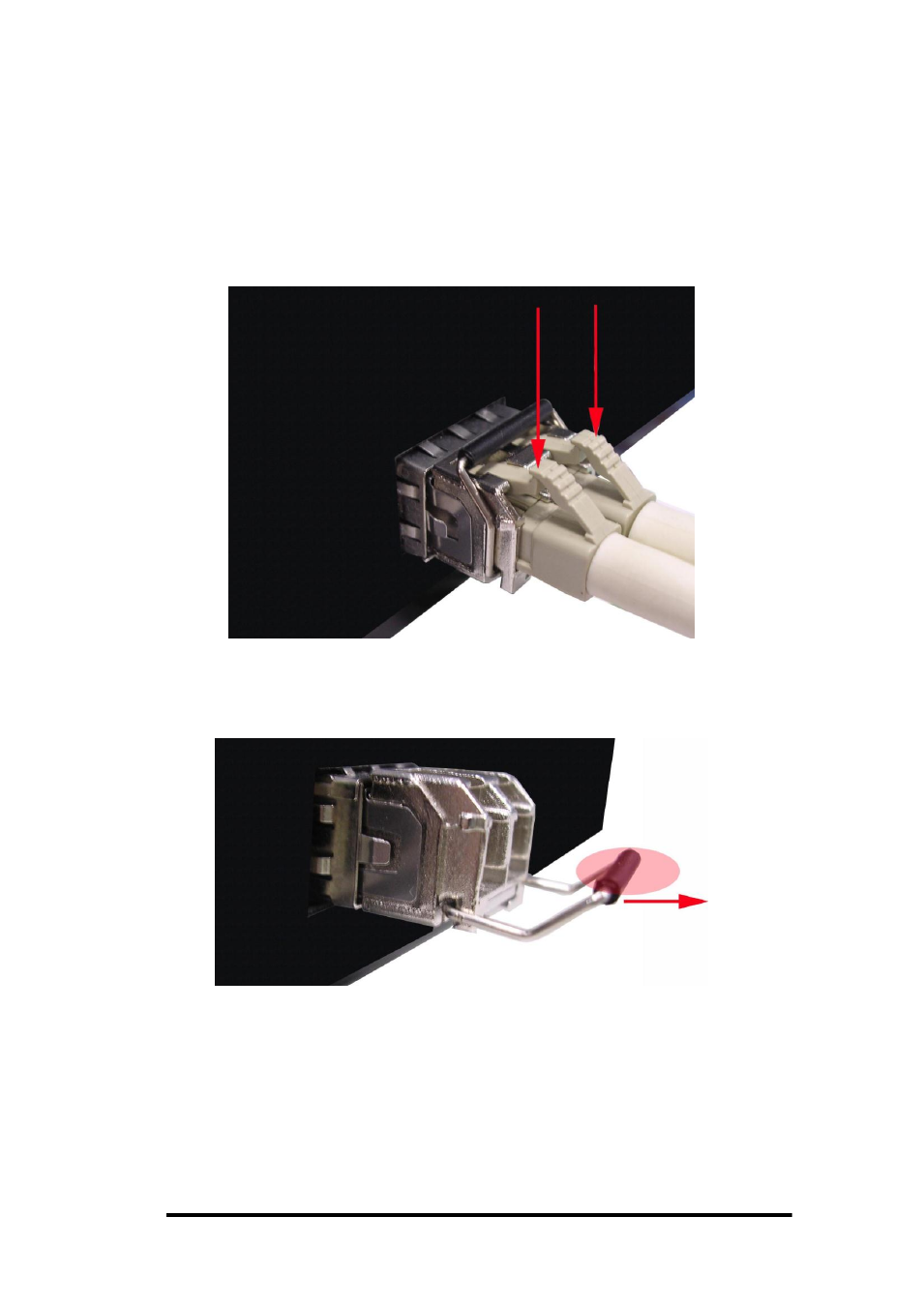

To remove the LC connector from the transceiver, please follow the steps
shown below:
First, press the upper side of the LC connector from the transceiver and pull
it out to release.
Remove LC connector
Second, push down the metal loop and pull the transceiver out by the plastic
part.
Pull out from the SFP module
