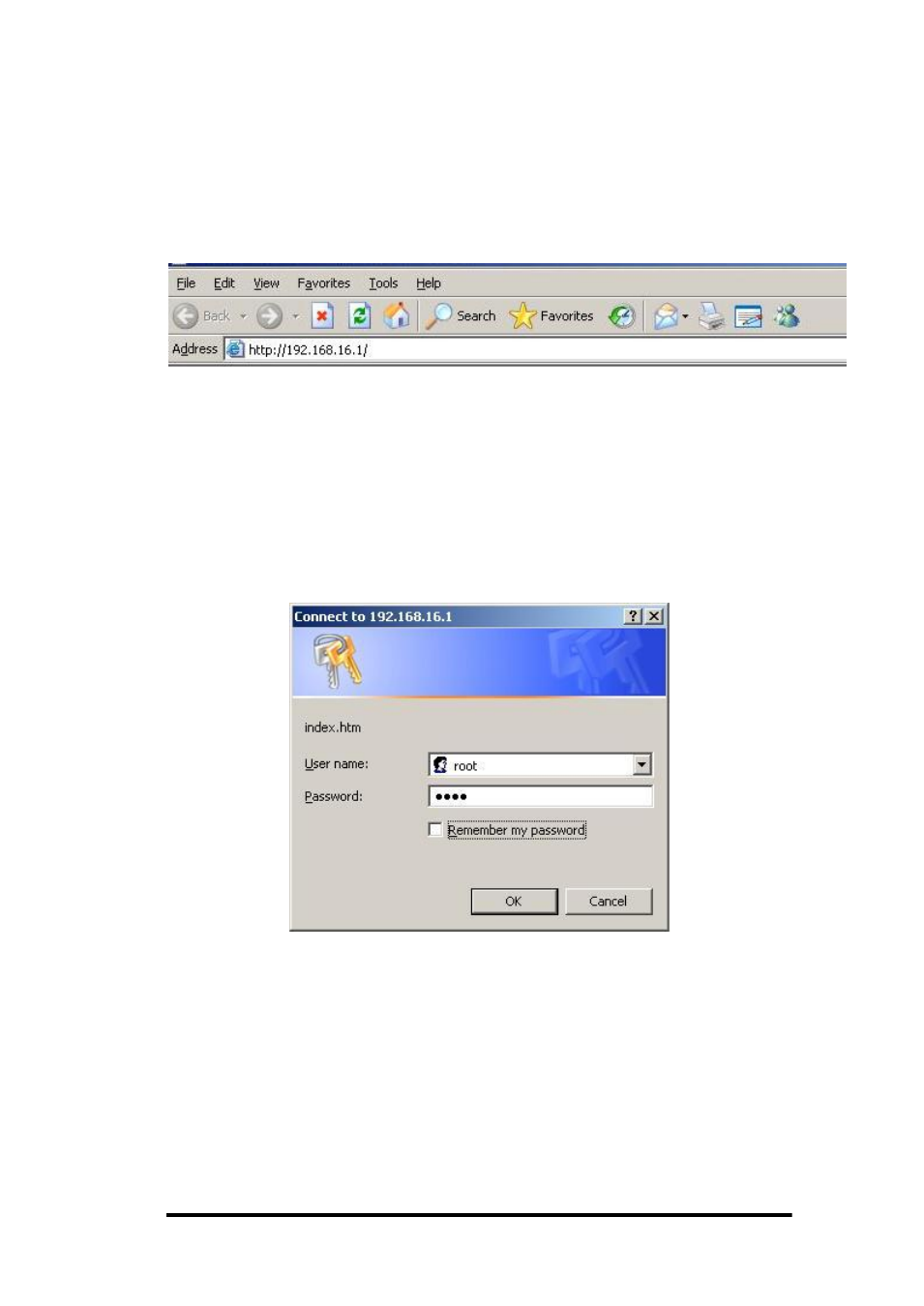

System Login
1. Launch the Internet Explorer on the PC
2. Key in
―http:// ―+‖ the IP address of the switch‖, and then Press ―Enter‖.
3. The login screen will appear right after
4. Key in the user name and password. The default user name and
password are the same as
‗root’
5. Press
‗Enter‗ or click OK button, and then the home screen of the
Web-based management appears.
Note: The web interface features shown below are introduced by the
screen displays of 16 10/100 TX + 2 10/100/1000T/Mini-GBIC Combo
model. Unless specifically identified, the all of the screen displays are
suitable for the models in this manual.
