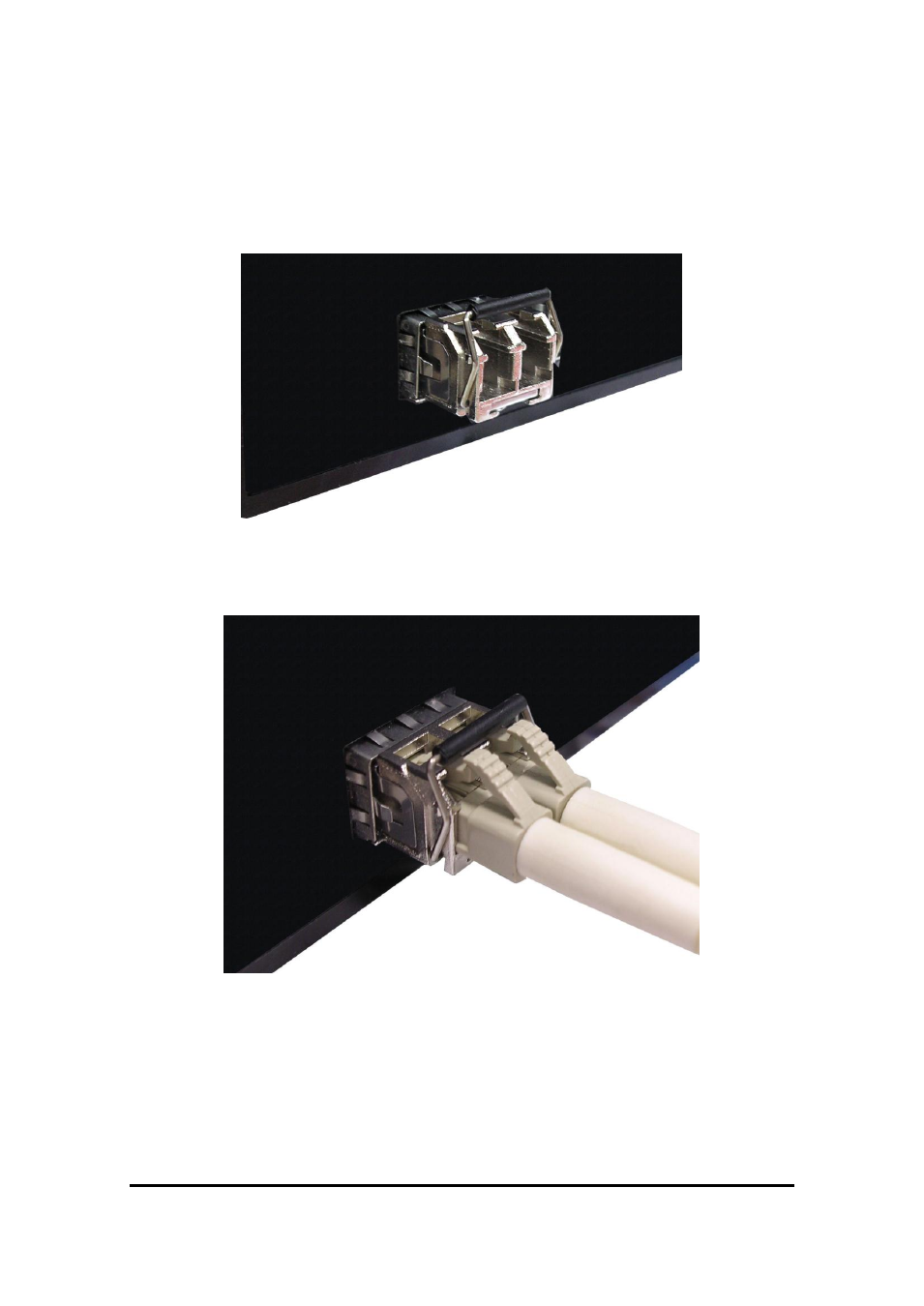

Make sure the module is aligned correctly and then slide the module into the

SFP slot until a click is heard.

Transceiver Inserted

Second, insert the fiber cable of LC connector into the transceiver.

LC connector to the transceiver
