5. Select the ports to join the trunk group. The system allows four ports
maximum to be aggregated in a trunk group. Click Add button to
add the port which is focused to the left field. To remove unwanted
ports, select the port and click Remove button.
6. When LACP enabled, you can configure LACP Active/Passive status
for each port on State Activity page.
7. Click Apply button.
8. Use Delete button to delete Trunk Group. Select the Group ID and
click Delete button.

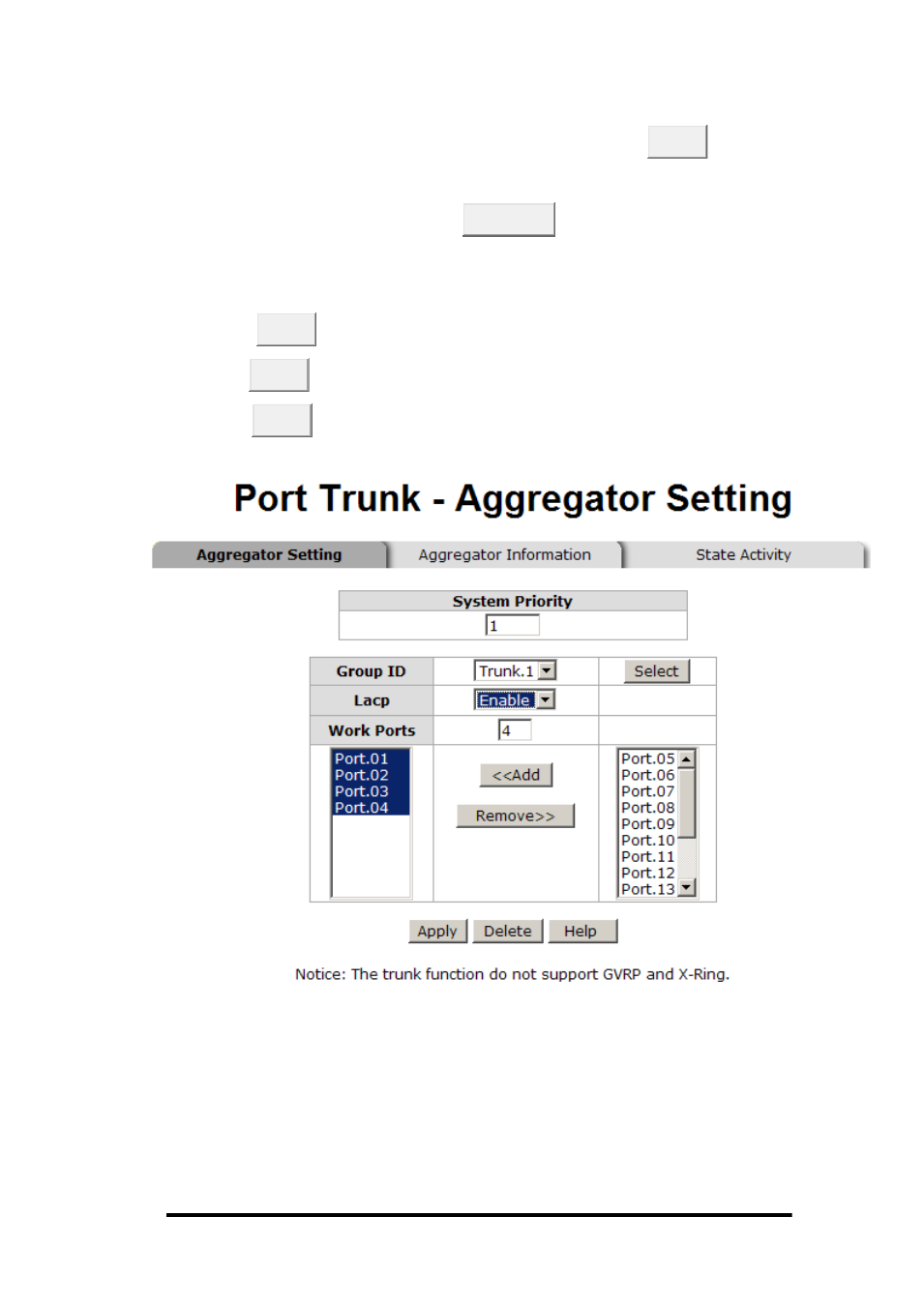

Port Trunk —Aggregator Setting interface (four ports are added to the left field with LACP
enabled)
Aggregator Information
When you have setup the aggregator setting with LACP disabled, you will
