 1 st
Ring Port: Assign a port which is used to be the forwarding port
to the ring.
 2 nd
Ring Port: Assign a port which is used to be the blocking port
to the ring.
 And then, click
Apply button to apply the configuration.

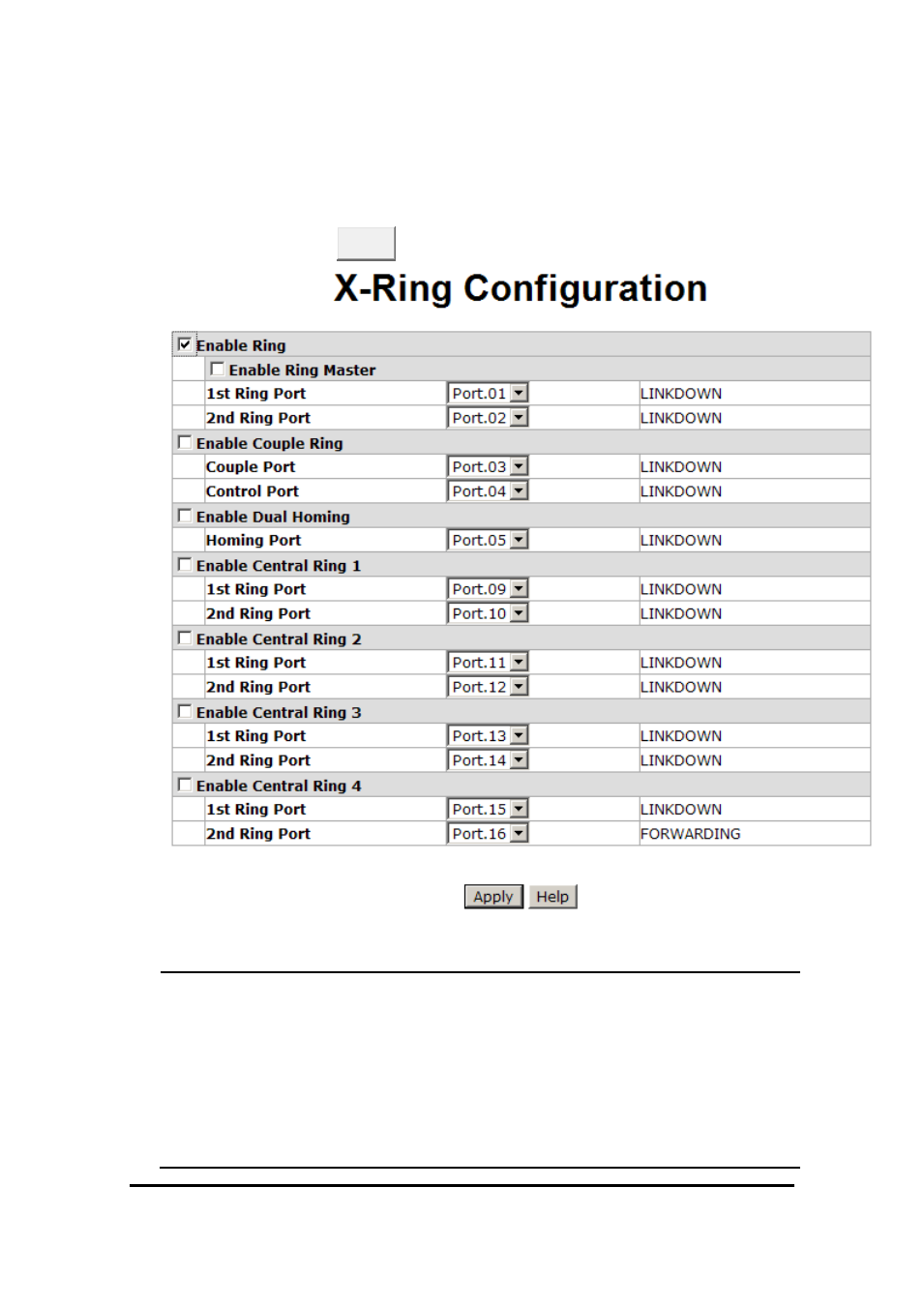

X-ring Interface
[NOTE] 1. When the X-Ring function enabled, the user must disable the
RSTP. The X-Ring function and RSTP function cannot exist
on a switch at the same time.
2. Remember to execute the ―Save Configuration‖ action,
otherwise the new configuration will lose when switch powers
off.
