4.4.2.3§IP§Address§Setting
C5-IPC must be specified an IP address in the network system. And every specified IP address
must be unique. You can use IP8210Config software to set IP.
NOTE: The default IP address of C5-IPC is 192.168.0.2
Setting steps as follows:

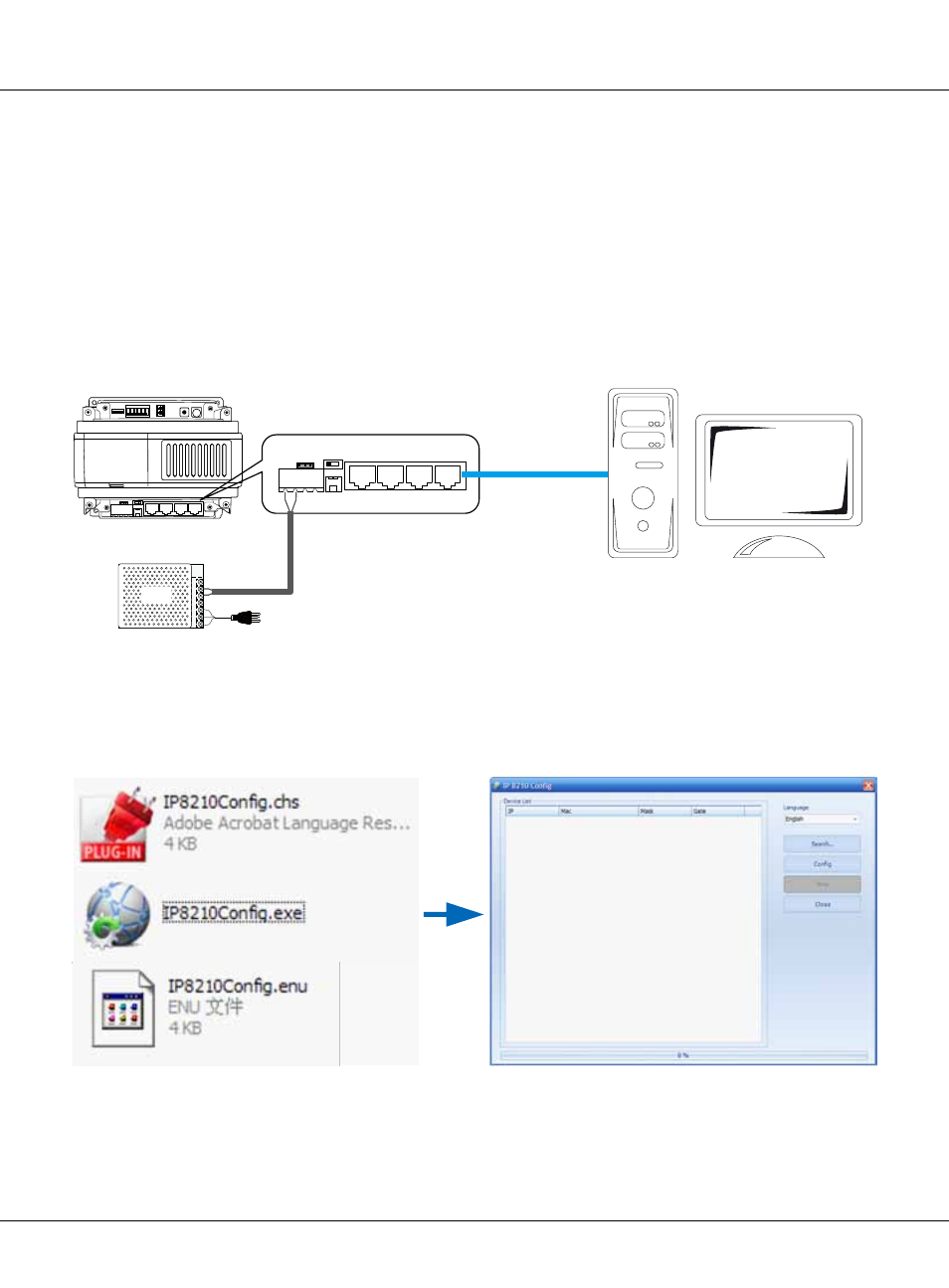

1. Connect C5-IPC and PC, and set IP address of PC to 192.168.0.X
Assume that PC IP is 192.168.0.105
PS5
1 2 3
P+ P- P+ P- RS485
SW1
JWB(IN) JWB(OUT) CN(MDS) ETHERNET
PA VR600
+
S1 POWER
LINK
IN-USE
AG
1
ON DIP
2 3 4 5 6
1 2 3
P+ P- P+ P- RS485
SW1
JWB(IN) JWB(OUT) CN(MDS) ETHERNET
C5-IPC
+ -
+
- PC
AC in
DC output
IP: 192.168.0.105
2. Launch IP8210Config.exe
