Page 70 K5 System Technical Guide

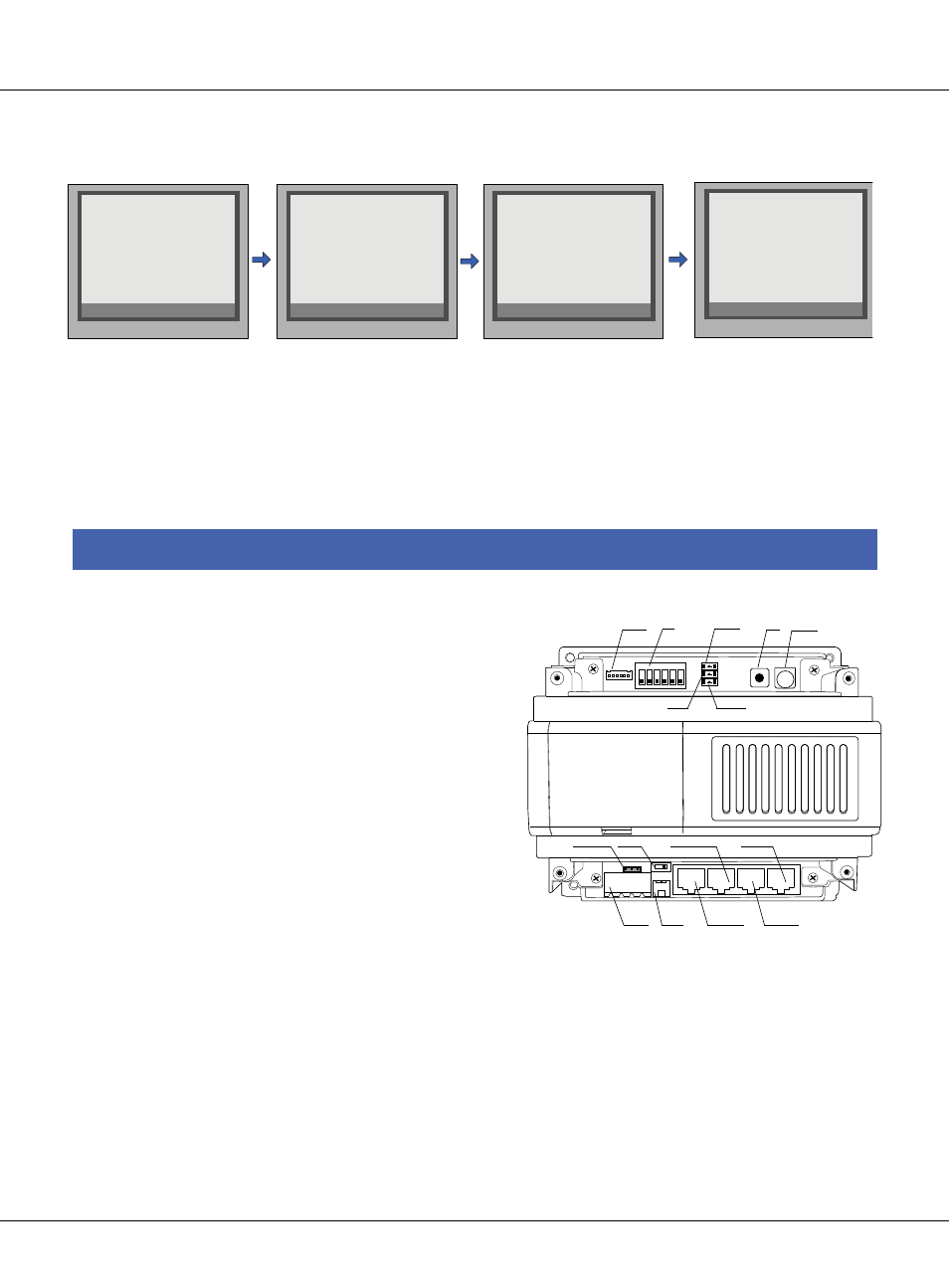

Step3: Upload Monitor Address(Monitor Code)
=== Monitor Program ===
Old M. code [ 0099 ]
New M. code [ - - - - ]
>Press Call Button of the
monitor
>Input new Code
>Press # to Program
[ Input new code ]
=== Monitor Program ===
Old M. code [ 0099 ]
New M. code [ 0002 ]
>Press Call Button of the
monitor
>Input new Code
>Press # to Program
[ Programming ]
=== Monitor Program ===
Old M. code [ 0099 ]
New M. code [ 0002 ]
>Press Call Button of the
monitor
>Input new Code
>Press # to Program
[ Update ]
=== Monitor Program ===
Old M. code [ - - - - ]
New M. code [ - - - - ]
>Press Call Button of the
monitor
>Input new Code
>Press # to Program
[ Press Call Button ]
The MR18 screen will
show the old moni-
tor code Input new code, eg,
input 0002, then press
# to confirm, it’ll show
Programming
C5-IPC is a controlling and network enabling unit.
Wherever network is required, there must be
C5-IPC; wherever C5-IPC is connected, it must
be the only controller. Also, C5-IPC must be used
wherever C5-MDS is applied in the system.
Please refer to 2.3.4.4 (IP Converter: C5-IPC) for more details.
It’ll Update if the pro-
gramming succeeds Then back to normal
status, you can repeat
the similar operation to
program next monitor
§ § 4.4§C5-IPC§Setting
Chapter 4 K5 System Settings
4.4.1§Port§Description
4.4.2§Settings
4.4.2.1§Level§Switch§setting
SW1 is level switch to match with different distributors. In this system, three types of distributors
are available: C5-F4, C5-F422, C5-F414. Default position is F4DV.
The SW1 setting with different distributor is as below table:
1 2 3
P+ P- P+ P- RS485
SW1
JWB(IN) JWB(OUT) CN(MDS) ETHERNET
PA VR600
+
S1 POWER
LINK
IN-USE
AG
1
ON DIP
2 3 4 5 6
C5-IPC
JTAG S1 POWER PA VR600
IN-USE LINK
JWP RS-485 JWB(IN) CN-MDS
CN-NET JWB(OUT) SW1 JP1/2/3
