Page 36 K5 System Technical Guide
§ § 3.1§One§Entrance§without§Network
This is the most basic installation, it applies to buildings where there is only one entrance, without
network, so it can be connected without C5-IPC.

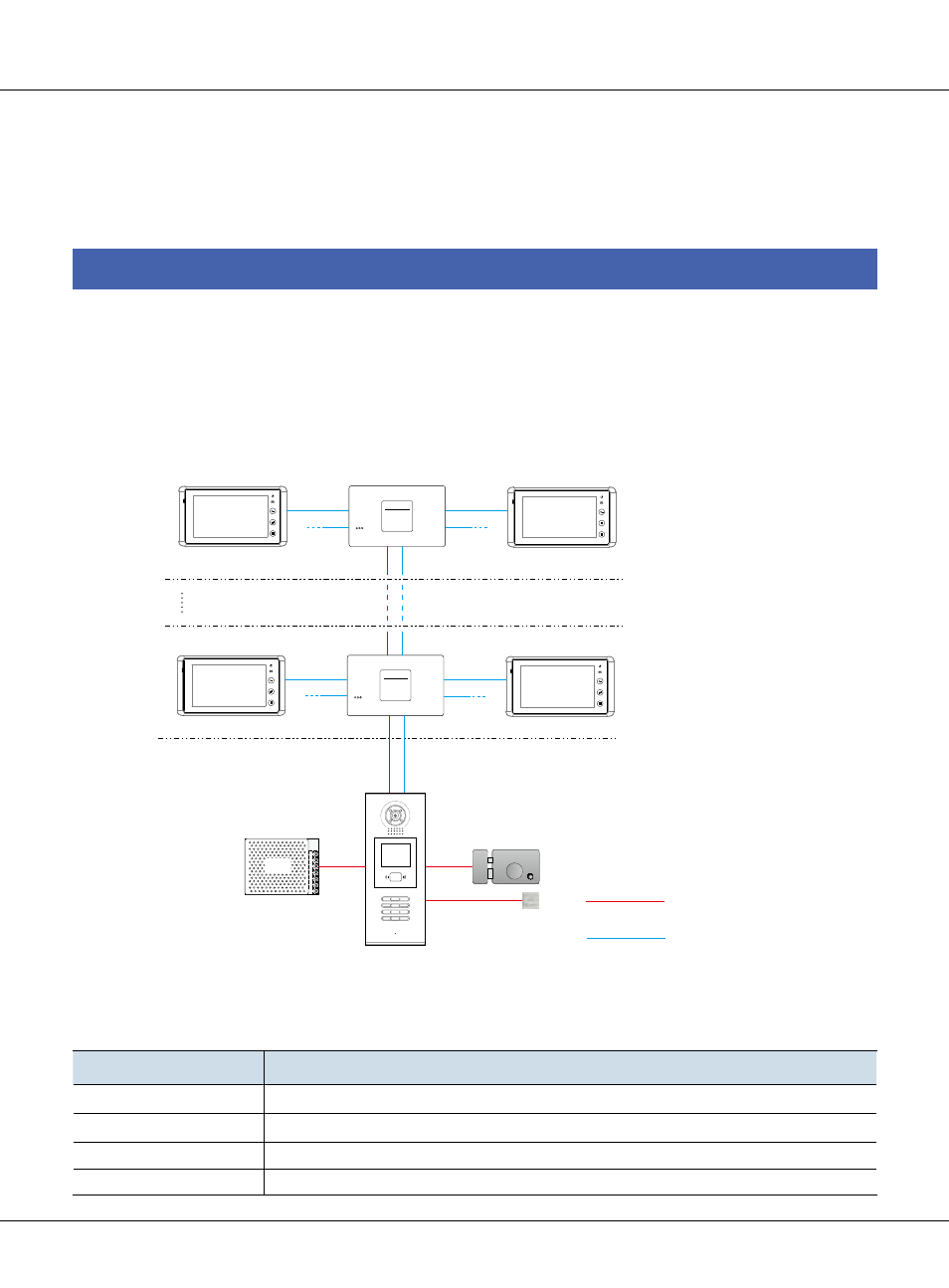

3.1.1§Layout
3.1.2§List§of§Accessories
1 2 3
6 5 4
7 8 9
# 0 *
RF CARD
1
2
3
4
C5-F4
1
2
3
4
1
2
3
4
C5-F4
1
2
3
4
Floor N
Floor N
PS5
RVV 2*1.0
CAT5 Cable
Exit Button
C5-F4
C5-F4
Model Description
DS Outdoor station, call monitor and serves as controlling center in the system
Monitor User terminal, to communicate with door station or other monitors
Distributor To Separate Data, Audio, Video signal to each monitor, and power monitor
PS5 Adjustable DC power supply
Chapter 3 K5 System Configuration
The K5 system is flexible to meet all kinds of need in different structure; installer can install the
system they want according to the requirements. Below are the examples with different combina-
tion of the system.
