Page 32 K5 System Technical Guide
• LED1: Indicators for first group of card
reader
• LED2: Indicators for second group of
card reader
• JWP: Power input, DC 24V
• RS485: PC port, to set the parameters
of GP-LIFT
• CN-NET: Signal input and output, RJ45
port, connected to C5-MDS
• PA: Test button, used for card manage-
ment without connecting to LAN
• S1: DIP switch
• CN-RD1, CN-RD2: Card reader connec-
tion port, connected to independent
card reader
• CN-LK1, CN-LK2: Lock connection port, connected to lock and outlet button
• CN-DSI-1, CN-DSI-2: Door status detection
• JP_LK1, JP_LK2: Lock jumper for lock type selection
Specification
• Power supply: DC24V
• Standby current: 50mA
• Working current: 90mA(not including reader)
• Working temperature: -10 0 C~40 0 C
• Connection port: RJ45
• Dimensions: 140*150*60mm
2.3.4.8§Network§Camera§IP§Converter:§CM-IPC
CM-IPC is a device designed for Network camera. Through the CM-IPC, the computer can display
the video of the camera connected to the CM-IPC using the software IP-Agent.
• The IP-Agent can display the different cameras; the video can be sent to indoor monitors when
guard Ip-agent calls

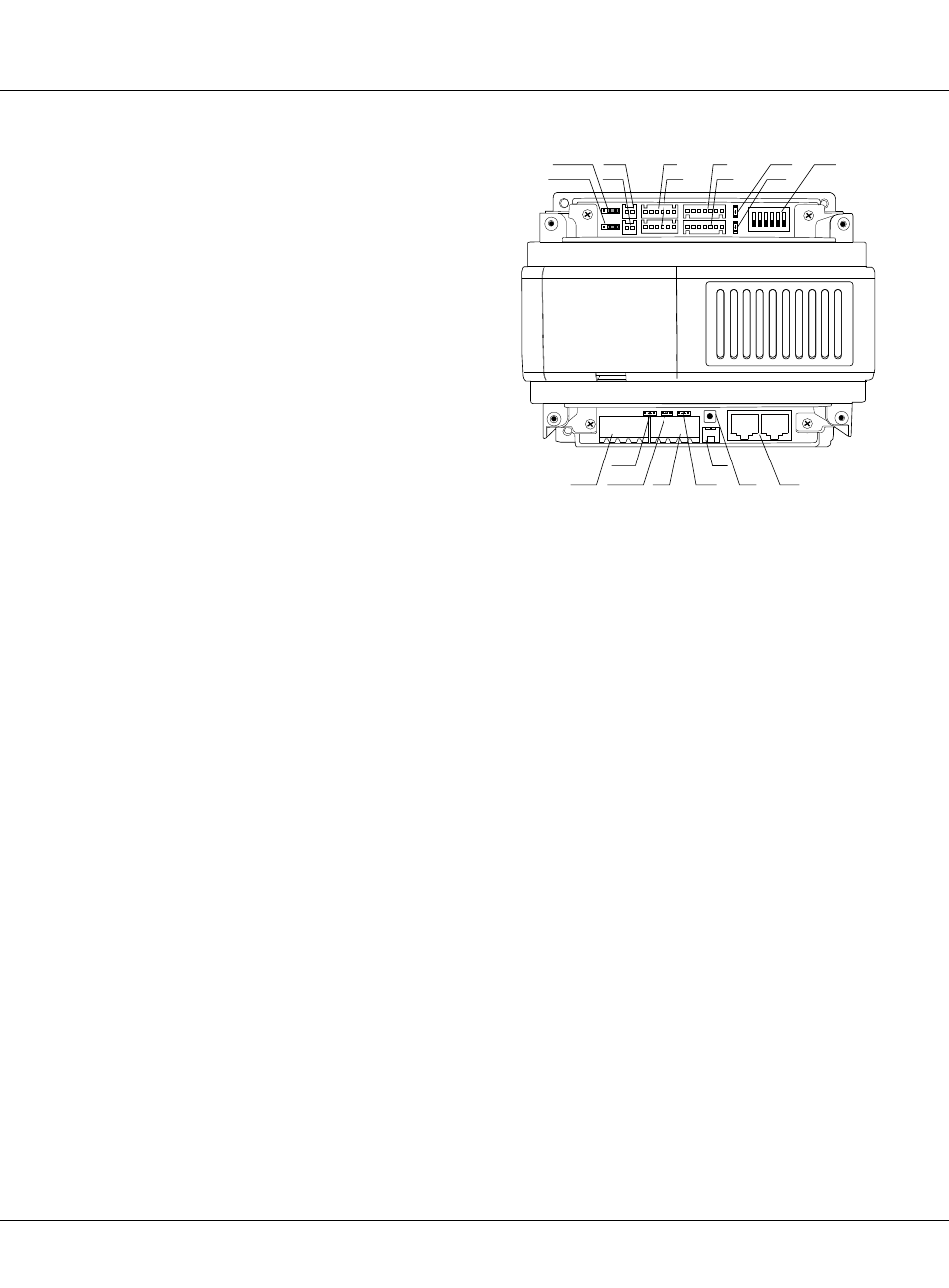

GP-ACS
JP-LK1 CN-DS1-1 CN-LK1
CN-LK2
CN-RD1
CN-RD2 LED2
LED1 S1
CN-DS1-2 JP-LK2
JWP JWB
POWER
LINK IN-USE PA CN-NET
RS485
1
ON DIP
2 3 4 5 6
P+ A1 P- D1 D2 JWB(IN) JWB(OUT) P-
JP-LK1
JP-LK2
S1
SN- SN+
P+ P-
POWER LINK IN-USE PA
RS485
1 2 3
1 2 3
EB+ EB- N.O LK+ LK- +12V
BEEP LED
LED2
LED1
WG1 WG0 P- +12V
Chapter 2 K5 System Parts
