K5 System Technical Guide

• PA204: Reserved in normal status, for door

station communication in test status

• LED201: Power indicator

• LED202: Reserved

• LED203: Picture saving indicator

• LED204: Picture play indicator

• JWP101: Power input, DC 24V

• RS485: PC port. To update the firmware

• CN-NET: RJ45 Network Port, connected to

LAN

• FM-SET: Video match switch

Specification

• Power supply:

DC24V

• Standby current:

78mA

• Working current:

135mA

• Working temperature:

-10

C~40

• Connection port:

RJ45

• Dimensions:

140*150*60mm

2.3.4.7§Independent§Access§Controller:§GP-ACS

GP-ACS is an independent access controller, used for the entrance without the need for door sta-
tion. Two locks and card readers can be connected to this device, so it can control two entrances
at the same time. GP-ACS can manage cards independently or through the PC in the network.

• Tow doors control ports (card reader port, electric lock port and status test)

• Lock release delay time setting

• Lock type setting

• Work status indicator

Parts and function

• Power: Power indicator, always ON while working

• LINK: Signal indicator, flicker means signal is transmitted in the bus line

• IN-USE: Status indicator, ON while working

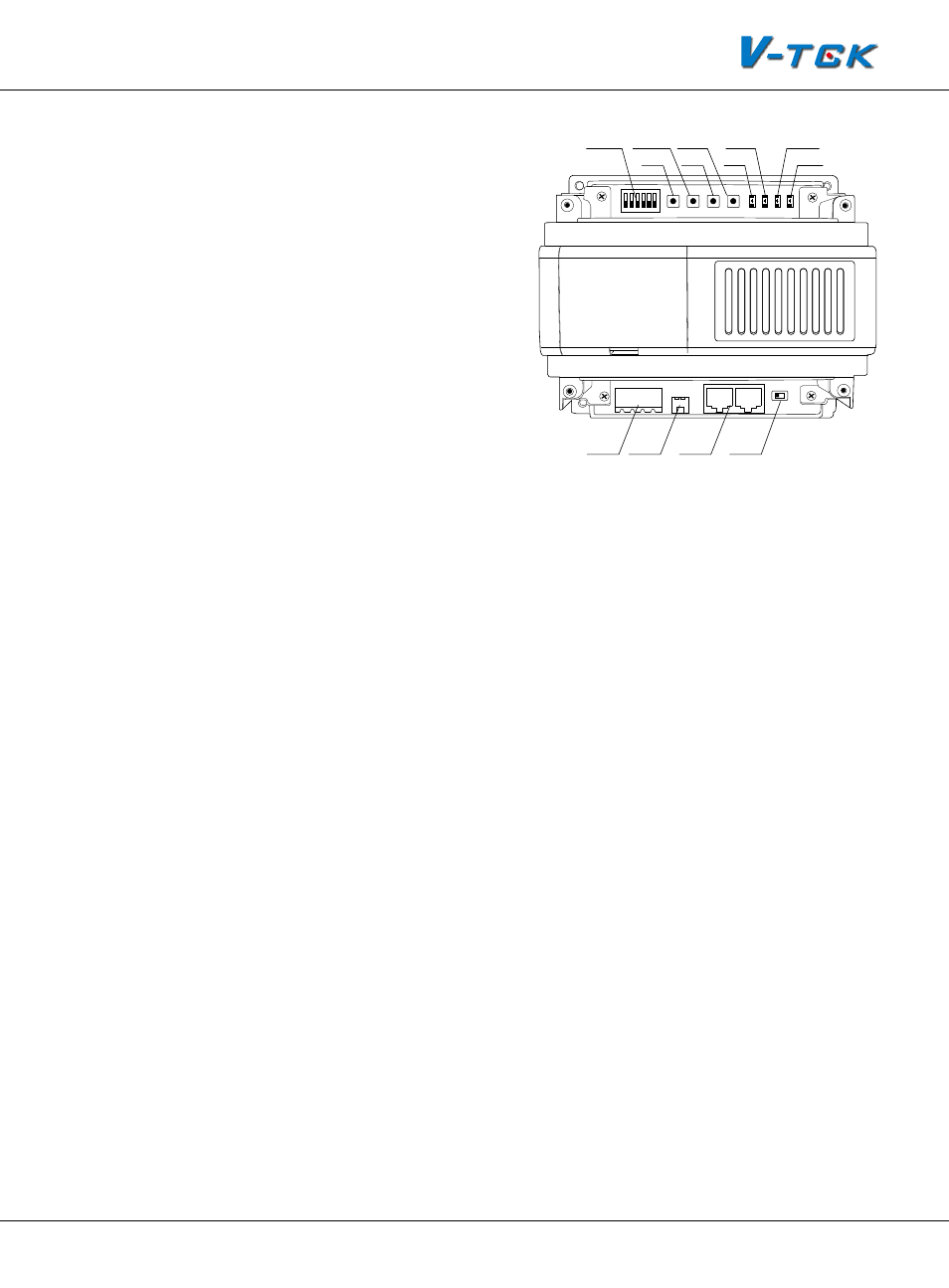

C5-IMC

DIP

2 3 4 5 6

P- P+ P- P+

T/R+

FM-SET

T/R-

S201

PA201 PA202 PA203 PA204

LED201

LED202

LED203

LED204

S201

PA201

PA202 PA204

PA203

LED202 LED203

LED204

LED201

JWP101 RS485 CN-NET FM-SET
