V-Tech CAT5 System Technical Guide - Manual (Page 114)

Page 114 K5 System Technical Guide
Guard Center Priority: When
block givs out call, to set how
the calll is transferred to dif-
ferent switch boards
Even UP Setting: When block
gives out alarm signal, to set
how many guard centers it
will go to
Input Table: To make a name
list for all door stations and
montiors and switch boards
IP Table: To make a name
list for all block(C5-IPC) and
swithc boards( IP address list)

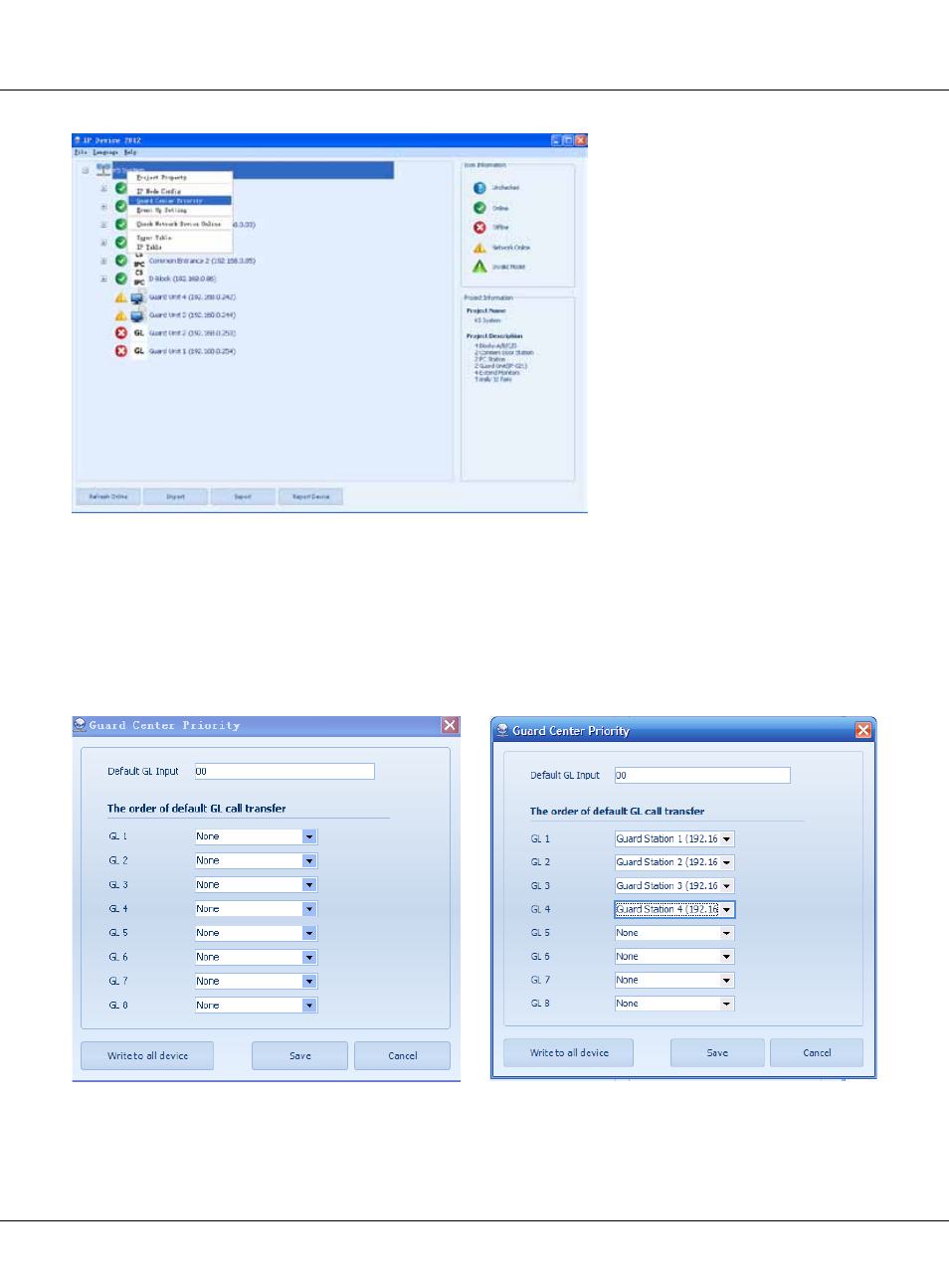

5.3.6.1§Guard§center§priority
The calls from the blocks can be transferred to maximum 8 guard centers in turn. When the first
guard center is off line or busy or no answer for some certain time, the call will be transferred to
the next guard center
Press the Write to all device buttons to download the parameters to all C5-IPC connected to the network, and
info will be saved to database at the same time. If only press save button, the info will be saved in the database
only, and not to the devices.
Chapter 5 K5 System Softwares
