2.3.3.3§Specification
Power input:
DC 24V
Standby Current:
390mA
Working Current:
850mA
Screen:
10 inch digital TFT
Resolution:
800x480pixels
Video Signal:
CCIR, 1Vp-p, 75Ω
Transmission Mode:
TCP/IP
Connection Port:
RJ45
Network Interface:
Standard Ethernet interface
Working temperature:
-10
0
C ~ +40
0
C
Dimension:
382 *203 *32mm
2.3.4§Accessories
Using a signal cable, each apartment indoor monitor is connected to the BUS through distributor.
And one distributor can be connected to 4 indoor monitors. This device converts the BUS audio
and video signals and then distributes them to the connected indoor monitors.
There are three types of distributors: C5-F4, C5-F414 and C5-F422.
2.3.4.1§C5-F4
C5-F4 is a normal distributor. It just supports one audio and one video channel at the same time
while working.

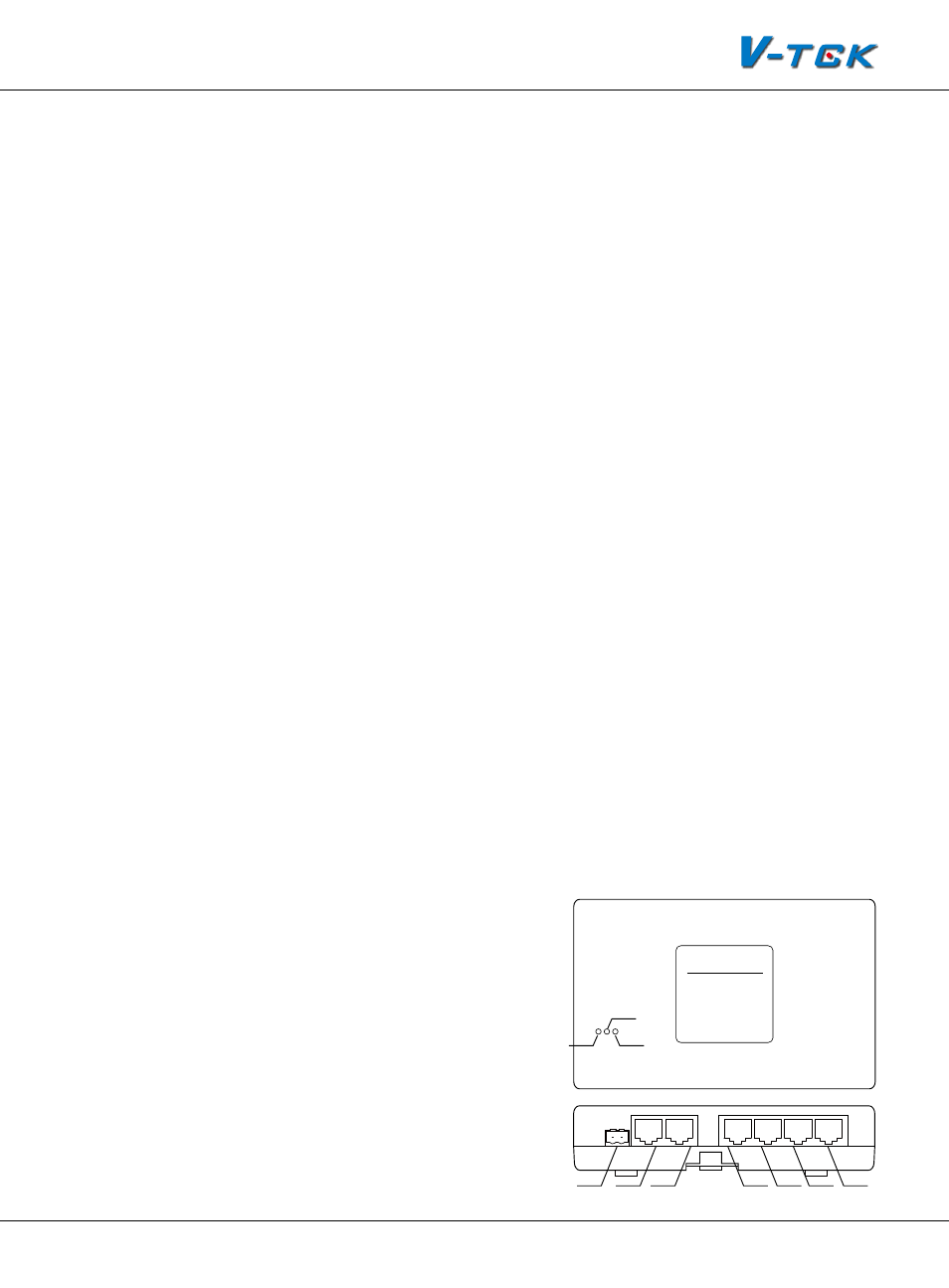

Parts and Functions
• P+, P-: Power input, DC 24V
• JWB (IN): Bus Signal Input. The port is a RJ45
port includes audio, data & video. It can be
connected to last distributor or C5-IPC
• JWB (OUT): Bus Signal Output. The port is a
RJ45 port includes audio, data & video. It can
be connected to next distributor
• PORT-A, PORT-B, PORT-C, PORT-D: 4 output,
it can be connected to indoor monitors
• VD-SET: Setting for video matching
C5-F4
IN-USE
LINK
POWER
P+ P-
JWB(IN) JWB(OUT)
PORT-A PORT-B PORT-C PORT-D
