Hydraulic Pipe Bender

5

Pipe with thicker walls and/or high hardness (over

75 HRb)/strength (over 66 ksi (455 MPa) Tensile) may not

be able to be bent. Pipe with comparable outside diam-

eter and wall thickness to the pipes listed may be able

to be bent depending on pipe material characteristics.

Pipe with thinner walls can be bent but may experience

issues with kinking or buckling in the bend area.

Icons

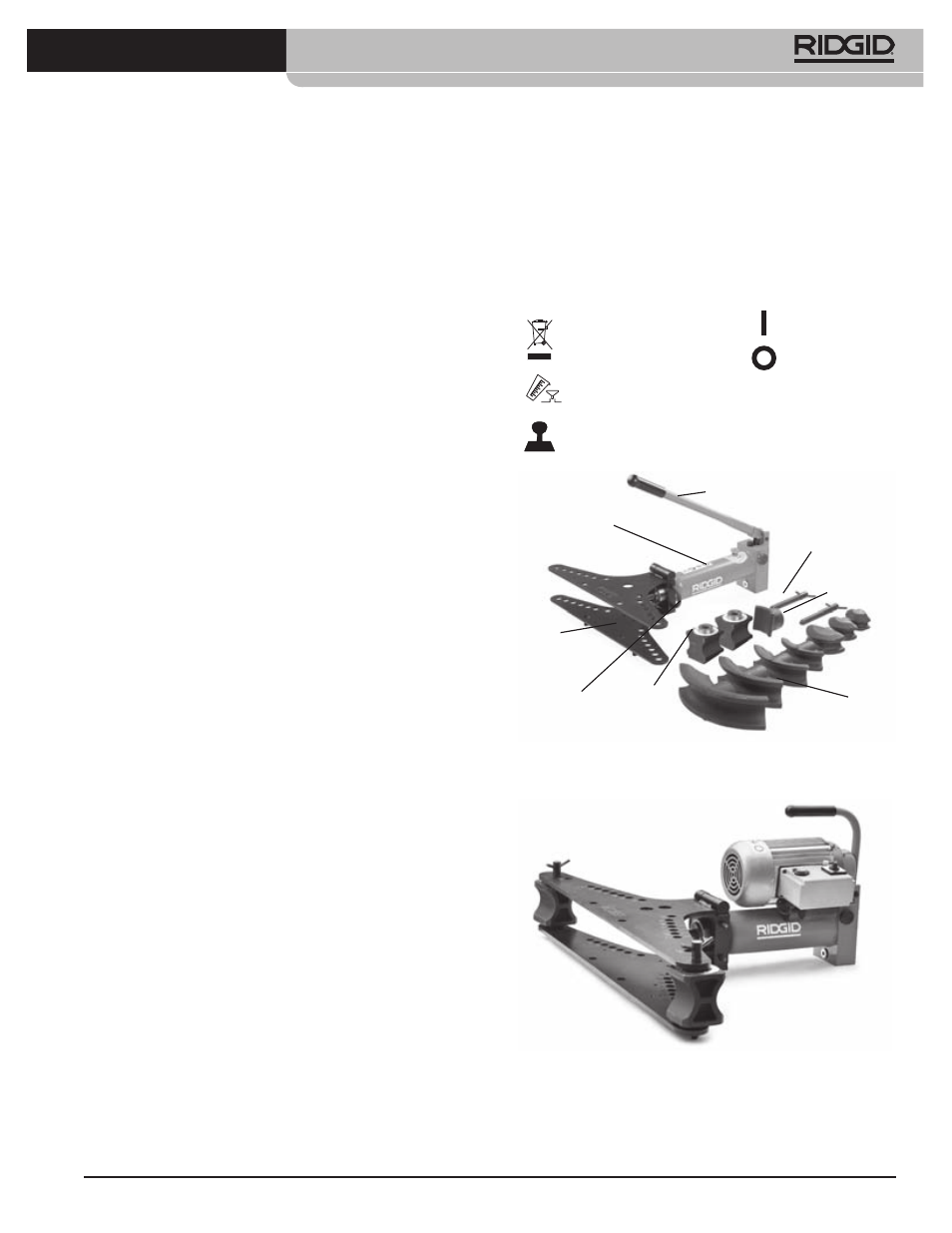

Figure 1 – Hydraulic Pipe Bender 2” and 3” Manual Unit

Bending

Frame

Cylinder

U-Bracket

Pump Handle

Pins

Straightening

Former

Formers

Corner

Supports

Figure 2 – Hydraulic Pipe Bender 2” and 3” Electric Unit

Hydraulic benders use high pressure fluid to

generate large forces. High pressure fluid can

penetrate skin. Large forces can break and

throw parts, causing serious injury. Stand clear

of the unit during use and always wear appropri-

ate protective equipment, including eye protec-

tion.

One person must control the work process

and machine operation. Only the operator

should be in the work area when the machine

is operating. This helps reduce the risk of injury.

Read and understand this manual, and the

warnings and instructions for all equipment

being used with this tool before operating.

Failure to follow all warnings and instructions

may result in property damage and/or serious

injury

Use the Hydraulic Pipe Bender only with

RIDGID Hydraulic Pipe Bender attachments

as directed in these instructions. Other uses or

modifying the Hydraulic Pipe Benders may dam-

age the tool, the attachments or cause personal

injury.

The EC Declaration of Conformity (890-011-320.10) will

accompany this manual as a separate booklet when re-

quired.
If you have any question concerning this RIDGID® prod-

uct:
– Contact your local RIDGID distributor.
– Visit www.RIDGID.com or www.RIDGID.eu to find

your local RIDGID contact point.

– Contact RIDGID Technical Services Department at

[email protected], or in the U.S. and

Canada call (800) 519-3456.

Description and Specifications

Description

RIDGID® Hydraulic Pipe Benders allow precision cold

bend ing of metallic pipe from

1

/

4

” to 3” (depending on

the unit). The tip-up wing configuration of the RIDGID

Hydraulic Bender allows easy access to the pipe for set

up and removal. Benders are available in both manual

and electric versions.
The RIDGID Hydraulic Benders are generally designed to

bend the following types of pipe:

• EN 10255 Medium and Heavy Series

• ASTM A53 Schedule 40 and 80

• DIN 2440, 2441 Series

• BS 1387 Medium and Heavy Series

• GB/3091 (ISO 559) Medium and Heavy Series

Power ON

Power OFF

Do not dispose of electrical

equipment with household

waste

Fill Port

Weight
