Ridge Tool Company/Elyria, Ohio, U.S.A.

1/11

Printed in U.S.A.

EC37674

944-732-566.10

REV. A

Hydraulic Bender Wheel Kit Instructions

ly assembled. If any problems are found, do not use until the

problems are corrected. Lubricate all moving parts/joints as

needed with a light lubricating oil, wipe up excess oil.

Wheel Kit Assembly and
Operation

1. Locate a clear, level, stable location to set up the

hydraulic bender and wheel kit.

2. Attach the fixed wheels to the bending frame with the

supplied fasteners and firmly tighten.

3. Attach swiveling wheel to the underside of the pump

body with the supplied fasteners and firmly tighten.

4. Assemble the hydraulic bender per the manual instruc-

tions.

5. When using the bender, always depress the brake tab to

help prevent movement. Pull up on the brake tab to

release and allow bender movement.

6. Always properly support the pipe to prevent tipping of

the pipe and bender during use.

WARNING

Read these instructions and the warnings and instruc-

tions for all equipment being used before using to

reduce the risk of serious personal injury.

Support pipe with pipe stands. Failure to properly support

the pipe can cause bender tipping, falling pipe, and serious

injury.

If you have any question concerning this RIDGID

®

product:

– Contact your local RIDGID distributor.

– Visit www.RIDGID.com or www.RIDGID.eu to find your

local RIDGID contact point.

– Contact RIDGID Technical Services Department at

[email protected], or in the U.S. and

Canada call (800) 519-3456.

Description

The RIDGID

®

Hydraulic Bender Wheel Kit is used with the

RIDGID Hydraulic Pipe Benders (Models HB-382, HB-382E,

HB-383 and HB-383E). It increases the pipe bender height

for convenience while operating and allows easier bender

positioning and movement on flat surfaces. The rear wheel

includes a brake to help prevent movement during operation.

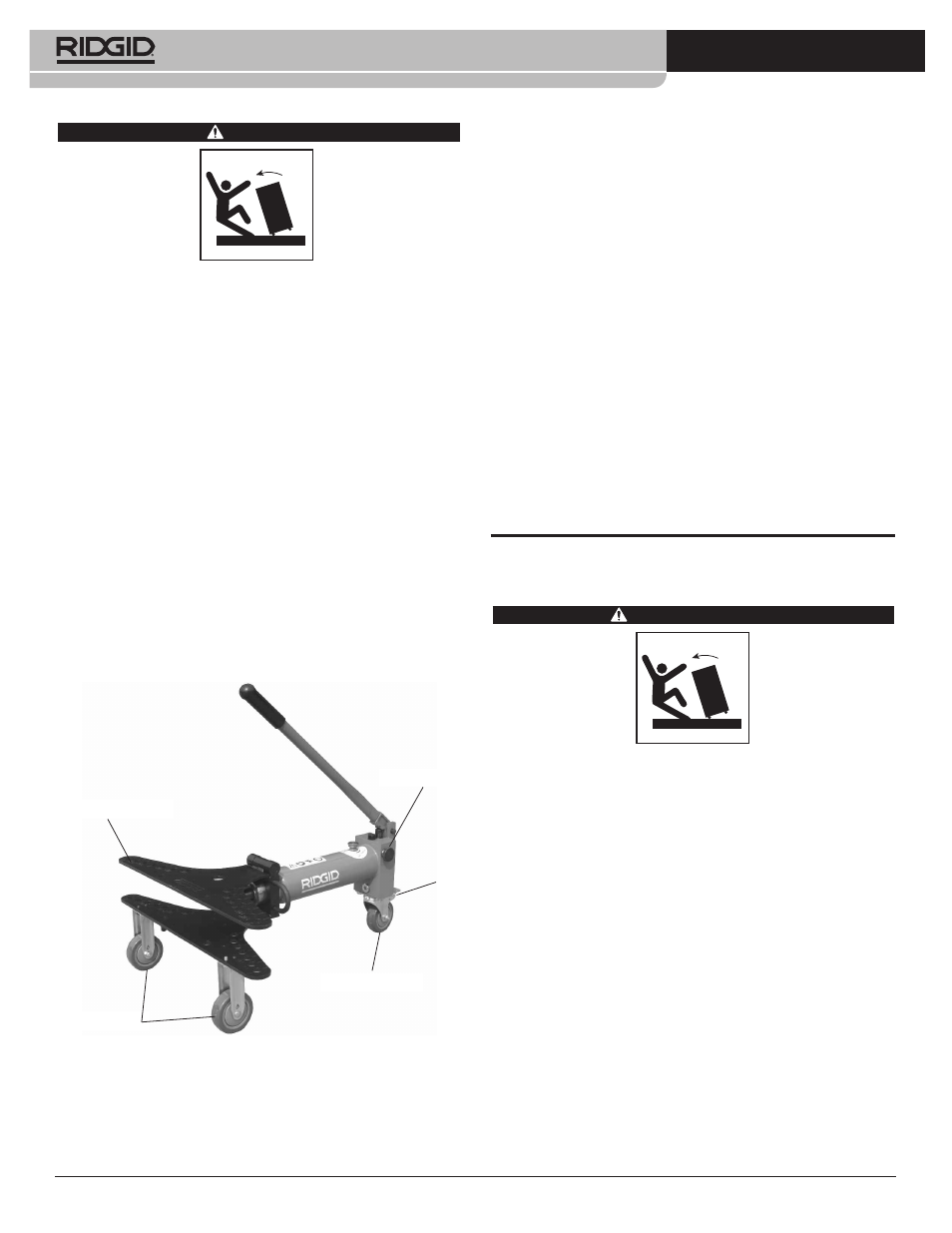

Figure 1 – Assembled Hydraulic Bender with Wheel Kit

Inspection/Maintenance

The Wheel Kit should be inspected before each use for wear

or damage that could affect safe use. Clean as needed to aid

inspection. Make sure the Wheel Kit is complete and proper-

Bending Frame

Brake

Tab

Swiveling Wheel

Pump Body

Fixed Wheels

Ensemble roulant pour cintreuse
hydraulique – Fiche technique

AVERTISSEMENT

Avant d’utiliser cet appareil, et afin de limiter les

risques de grave blessure corporelle, familiarisez-

vous avec les consignes et avertissements le concer-

nant,

ainsi

que

ceux

concernant

l’ensemble

du

matériel utilisé.

Soutenez le tuyau à l’aide de porte-tubes. Un tuyau mal

soutenu risque de provoquer le renversement de la cin-

treuse, la chute du tuyau et de graves blessures corporelles.

Pour de plus amples renseignements concernant ce produit

RIDGID

®

, veuillez :

– Consulter votre distributeur RIDGID.

– Visitez le site www.RIDGID.com ou www.RIDGID.eu afin

de localiser le représentant RIDGID le plus proche.

– Consulter les services techniques RIDGID par mail

adressé à : [email protected] ou, à partir

des Etats-Unis et du Canada, en composant le (800)

519-3456.

Description

L’ensemble roulant pour cintreuse hydraulique RIDGID

®

est

prévu pour les cintreuses hydrauliques type HB-382, HB-
