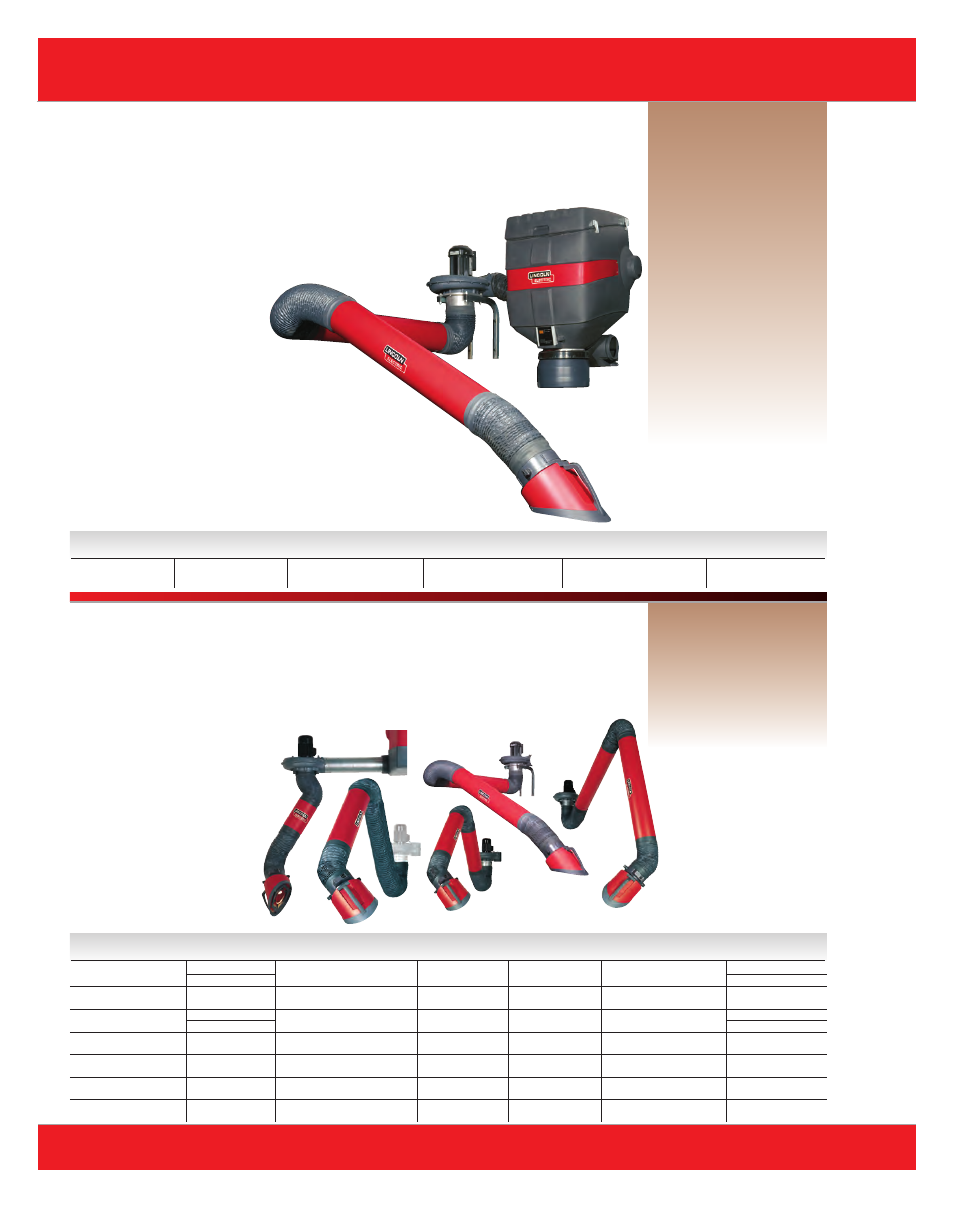

Statiflex
™
400-MS
Ideal for a variety of facilities in which floor space
is a premium including maintenance departments,
general fabrication and job shops,
weld schools, and industrial
environments.
Wall mounted low vacuum/high volume self-cleaning filtra-
tion system designed for heavy duty extraction of welding
fumes.
Processes
• Stick
• TIG
• MIG
• Flux-Cored
Required Options
• Extraction Arm(s)
• Stationary Fan
• Lamp Kit with Arc Sensor
Key Options
•
More options at end of section
Literature
E13.15
• Generous 735 CFM airflow with
LTA 2.0, LFA 2.0, LFA 3.1, LFA 4.1,
LFA 4.1-LC extraction arms and SF 2400 fan.
• Filter efficiency up to 99.8%.
• 30 m 2 (325 ft 2 ) LongLife ® filter with ExtraCoat ®
pretreatment.
• RotaPulse ® automatic filter cleaning system.
• Internal aluminum mesh spark arrestor.
• Electronic filter pressure system monitors internal
static pressure and controls filter cleaning.
• One-year warranty on equipment. (30 day warranty
on filter cartridge.)
Product Product Filter Surface H x W x D Net Weight
Name Number Filter Type m 2 (ft 2 ) mm (in.) kg (lbs.)
Statiflex ™ 400-MS K1742-1 Pretreated Cellulose 30 1040 x 670 x 660 85
Base Unit (325) (41 x 27 x 26) (187)
Shown:
Statiflex ™ 400-MS with
required Extraction Arm
Fume Extraction Arms
These flexible extraction arms are built the Lincoln Electric ® way, rugged and reliable. Designed
with the welder in mind, the arms come equipped with the 360° rotatable hood for optimal
positioning to the welding point.
Low Vacuum Flexible Extraction Arms
Product Product Arm Length H x W Net Weight CFM with SF 2400 Fan
Name Number m (ft.) mm (in.) kg (lb.) (with no filtration) Use With:
LFA 3.1 K2633-1 3.1 208 x 3,000 15 760 Mobiflex ™
K1655-1 (10) (8 x 118) (33) Statiflex ™
LFA 3.1 K2633-2 3.1 208 x 3,000 15 760 Mobiflex ™
(with Lamp & Arc Sensor) (10) (8 x 118) (33)
LFA 4.1 K2633-3 4.1 208 x 4,000 17 760 Mobiflex ™
K1655-2 (13) (8 x 157) (37.5) Statiflex ™
LFA 4.1 K2633-4 4.1 208 x 4,000 17 760 Mobiflex ™
(with Lamp & Arc Sensor) (13) (8 x 157) (37.5)
LFA 4.1-LC K1655-6 4.1 208 x 4,000 17 760 Statiflex ™
(Low Ceiling) (13) (8 x 157) (37.5)
LFA 2.0 K1655-5 2 208 x 2,160 7 780 Statiflex ™
(6.5) (8 x 85) (15.4)
LTA 2.0 K1655-3 Retracts from 208 x 1,000-1,400 7 780 Statiflex ™
1-1.5 (3-4.5) (8 x 39.5-55) (15.4)
Processes
• Stick
• TIG
• MIG
• Flux-Cored
Literature
E13.16
• Ultra-light positioning.
• Minimal maintenance.
• Dent and scratch resistant material.
• Unique spring-balanced internal
mechanism: LFA 3.1/4.1/4.1-LC.
• Unique advanced friction internal
mechanism: LTA 2.0/LFA 2.0.
• 360° rotatable hood.
• Airflow throttle valve.
• 1-year warranty. LTA 2.0 LFA 2.0
LFA 3.1 LFA 4.1
LFA 4.1-LC
