Precision TIG ® 225
Great for Motorsports and Other Custom Fabricators
Processes
• Stick
• TIG
Output Input
Ready-Pak ® Pkg. (K2535-1)
Includes
• Precision TIG
® 225 (K2533-1)
• Removable Lift Eye
• 10 ft. (3.0 m) Work Cable & Clamp
• NEMA 6-50R Receptacle
(208/230V models only)
• TIG Procedure Guide
• GTAW (TIG) Handbook
• PTA-17 One-Piece TIG Torch
• Gas Regulator/Hose
• Foot Amptrol
®
Ready-Pak ® w/Cart Pkg. (K2535-2)
Includes
• Everything Listed Above (K2535-1)
• Understorage Cart
One-Pak ® w/Power MIG 140
(K2680-1)
• See below for what’s included
Key Options
• K2266-1 TIG-Mate
™ 17 Air-Cooled
TIG Torch Starter Pack
• K870 Foot Amptrol ®
• K963-3 Hand Amptrol ®
• K2348-1 Understorage Cart
• Fume Extraction System
•
More options at end of section
Literature
E3.37
TIG Welders
www.lincolnelectric.com/tig-welders
CC AC
DC
1
PHASE
60
Hz
50
Hz
• 5-230 amps is the widest welding range in its class.
• Patented Micro-Start ™ II Technology delivers extremely
stable low amperage starting, welding and cratering
for AC and DC welding.
• AC Auto-Balance ® automatically sets the optimal
cleaning vs. penetration levels for great looking
aluminum welds.
• FREE! Built-in TIG pulser helps control heat
input in the weld.
• 115 volt auxiliary power receptacles with
20 amp service reliably powers water
coolers or other tools.
• Base Unit Includes: Torch Parts
Storage Compartment, Torch
Hanger, 10 ft. Work Cable and
Clamp, Removable Lift Eye, 9 ft.
Input Power Cord, TIG Procedure
Guide, and GTAW (TIG) Handbook.
NEMA 6-50P Plug and NEMA 6-50R
Receptacle included with 208/230 models
only. Shielding gas sold separately.
• Three-year warranty on parts and labor.
The Precision TIG ® 225 gives you the “Power to Perform SM ”, for general
fabrication, automotive/ motorsports, vocational schools or serious
hobby work. Micro-Start
™ II Technology delivers precision arc
performance to improve arc starting, welding and weld cratering.

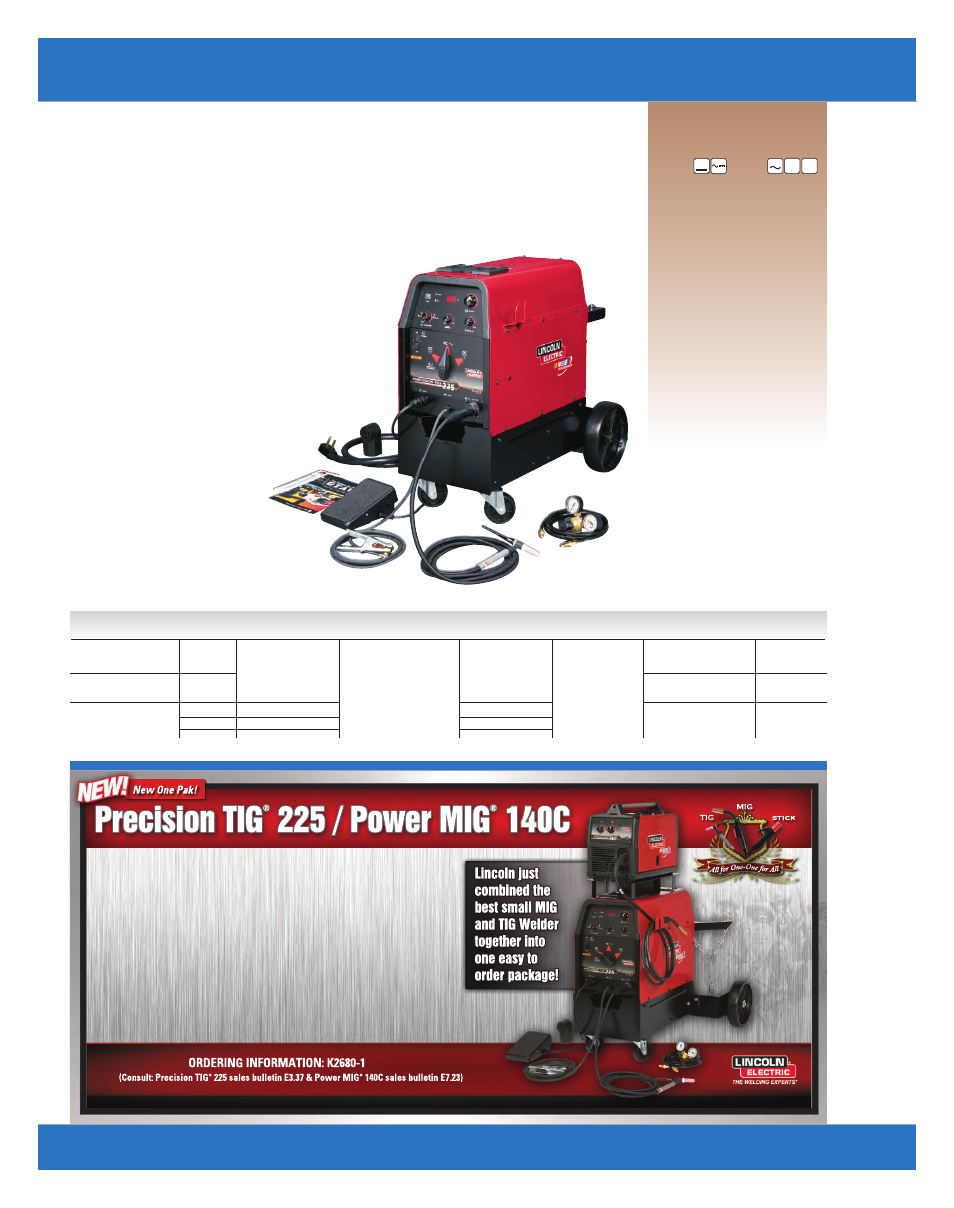

Shown:
K2535-2 Ready-Pak ® w/Cart Pkg.
Product Product Input Power Rated Output (1) Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output (2) Output Range inches (mm) lbs.(kg)
Precision TIG ® 225 K2535-1 208/230/1/60 90A/23.4V/100% 42/39A 5-230 Amps AC 20.7 x 14.5 x 25.6 212
Ready-Pak ® Pkg. 5-230 Amps DC (526 x 368 x 650) (96)
Precision TIG ® 225 K2535-2
Max. OCV: 75V
31.2 x 19.8 x 38 258
Ready-Pak ® w/Cart Pkg. (794 x 503 x 966) (117)
Precision TIG ® 225 K2533-1 208/230/1/60 42/39A 20.7 x 14.5 x 25.6 192
Base Model K2533-2 460/575/1/60 18/15A (526 x 368 x 650) (87)
K2534-1 380/400-415/1/50/60 21/20A
(1) Tested at 104°F (40°C). (2) All inputs reported include 20 amp output on 115 volt auxiliary.
12
COMPLETE PACKAGE Includes:
Precision TIG ® 225 (208/230/1/60) (K2535-1)
• 10 ft. (3.0 m) Work Cable & Clamp
• 9 ft. (2.7 m) Input Power Cord with Plug
• NEMA 6-50R Receptacle
• GTAW (TIG) Handbook
• PTA-17 12 ft.Ultra-Flex
™ TIG Torch Package
• Gas Regulator with Hose
• Foot Amptrol
® (K870)
Wire Feed Welder Mounting Bracket (K2616-1)
Dual Cylinder Cart (K2617-1)
Stick Electrode Holder & Cable (K2374-1)
Power MIG 140C (K2471-1)
• Magnum
® 100L gun
• Contact Tips
• Gasless & Gas Nozzle
• .025"-.035" Wire Guide
• .025" & .035 Smooth Drive Rolls
• .030"-.045" Knurled Drive Roll
• Gas Regulator and Hose
• Spool of .025" SuperArc
® L-56 ®
Solid MIG wire
• Spool of .035" Innershield ®
NR ® -211-MP ® wire
• Spindle Adapter for 8" Diameter Spools
• Work Clamp and Cable
• How to Use DVD
