Semiautomatic Wire Feeders
www.lincolnelectric.com/wire-feeders

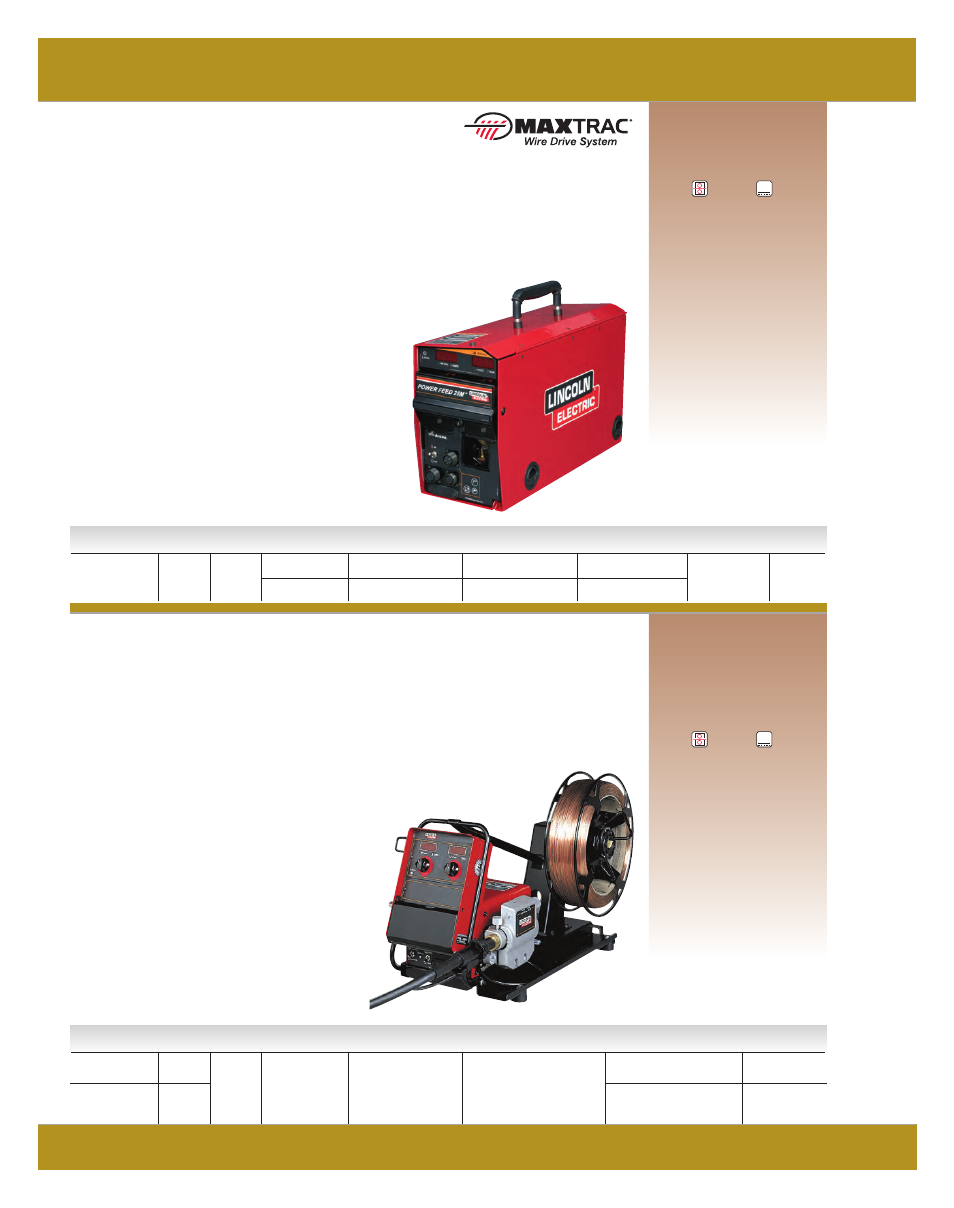

Power Feed ™ 25M
Lincoln offers this full featured design in a robust package that can meet industry challenges.
The lightweight construction, durable case, as well as the patented design of the MAXTRAC
®
wire drive system delivers the results you need.
Premium Welding Solution with a Portable Design!
Power Feed ™ 10M
When you need a versatile, multi-process industrial wire feeder for welding virtually any material,
you need the Power Feed
™ 10M. Choose the Power Feed ™ 10M for automotive manufacturing,
shipbuilding, pressure vessels/heavy plate, oil, gas and pipeline construction, particularly
when code-quality work is required.
Single and Dual Bench Wire Feeders
Processes
• MIG
• Stick
• Pulsed • TIG
• STT ® • Gouging
• Flux-Cored
Output Input
Unit Includes
• Electrode Pigtail
• MSP4 Panel
• Dual Procedure/Memory Panel
• Push-Pull Gun Connector
• Remote Control Connector
• Gun Receiver Bushing
• Standard & Extra Torque Gearing
Key Options
• Magnum
® Gun and Cable
Assemblies
• Magnum ® Self-Shielded Gun and
Cable Assemblies
• K2447-2 Python ® - Plus Push-Pull
Gun
• K1543-25 ArcLink ® /Linc-Net ™
Control Cables
• K1733-4 MicroWire Straightner
•
More options at end of section
Literature
E8.271
• Push-Pull Capability Standard Functionality delivers premier aluminum performance
by offering uniform feeding, as well as a flexible system for extending the gun.
• Hardened and Construction Ready. Built tough for rough environments.
From construction to shipbuilding, this design will meet your
expectations. Packaged standard with a durable aluminum
case or an optional plastic case.
• Internal Lighting. High intensity LEDs illuminate the
wire drive.
• Internal heating maintains control of humidity on your
consumable by keeping the package warmed and pro-
tected in an enclosed case.
• Mode Select Panel (MSP4) allows easy access to the
Power Wave ® library of waveforms. Advanced controls
and set-up options are only a fingertip away!
• Dual Procedure and Memory Buttons allow you to set-up
an A and B procedure to simplify “on the-fly” switching.
• Three-year warranty on parts and labor.
Product Product Input Wire Feed Speed Range Wire Size Range – Solid Wire Size Range – Cored H x W x D Net Weight
Name Number Power Gearing ipm (m/min) in. (mm) in. (mm) in. (mm) lbs.(kg)
Power Feed ™ 25M K2536-1 40 VDC Standard Speed Solid: 50-800 (2.5-20.3) .023-1/16 (0.6-1.6) .030-5/64 (0.8-2.0) 14.5 x 8.5 x 23.5 35
(factory setting) Cored: 50-800 (2.5-20.3) (368 x 216 x 597) (15.9)
Extra Torque Solid: 30-400 (1.3-10.4) .023-1/16 (0.6-1.6) .030-3/32 (0.8-2.4)
Cored: 30-400 (1.3-10.4)
Product Product Input Output Capacity Wire Feed Speed Range Wire Size Range H x W x D Net Weight
Name Number Power Current/Duty Cycle in/min (m/min) in. (mm) in. (mm) lbs.(kg)
Power Feed ™ 10M K2230-1 40 VDC 600A/60% High Speed: High Speed: 18.5 x 13.5 x 30.5 62
Single Bench Model 500A/100% 75-1200 (2.0-30.5) Solid: .025-1/16 (0.6-1.6) (470 x 343 x 775) (28.1)
Low Speed: Cored: .035-5/64 (0.9-2.0)
Power Feed ™ 10M K2234-1 50-800 (1.27-20.3) Low Speed: 20.0 x 20.0 x 30.7 90
Dual Bench Model Solid: .025-3/32 (0.6-2.4) (508 x 508 x 781) (40.8)
Cored: .035-.120 (0.9-3.0)
40
VDC
40
VDC
• World-class arc performance on steel, stainless steel, aluminum
and other materials.
• Waveform Control Technology ® featuring patented processes
like Pulse-On-Pulse ® , for a TIG-like bead appearance, and
Power Mode ® , for a stable arc at low current levels.
• Utilizes ArcLink ® —the leading digital communication pro-
tocol for welding, making it the best choice for seamless,
time critical integration with the power source.
• Pulsed MIG process—great for low spatter, low heat
input and out-of-position applications—makes virtually
any operator a better welder!
• Easy-to-understand user interface panel with large
numeric displays make it easy to set weld parameters.
• Features push-pull capability for great performance
on aluminum.
• Three-year warranty on parts and labor.
Processes
• MIG
• Pulsed
• STT
®
• Flux-Cored
• Stick
• TIG
• Gouging
Output Input
Dual Bench Model Includes
• Wire Reel Stand
• MSP4 Panel
• Dual Procedure/Memory Panel
• ArcLink
® /Linc-Net ™ Control Cable
• Weld Power Cable, 8 ft.
• High Speed Pinion Gear
• Power Wave
® Utilities CD-ROM
with Weld Manager ™
Key Options
• K1543-25 ArcLink
® /Linc-Net ™
Control Cable, 25 ft. (7.6 m)
• K1733-1 Wire Straightener
• K2593-xx Coaxial Weld Power
Cable, 25? ft. (7.6 m)
• More options at end of section
Literature
E8.266
