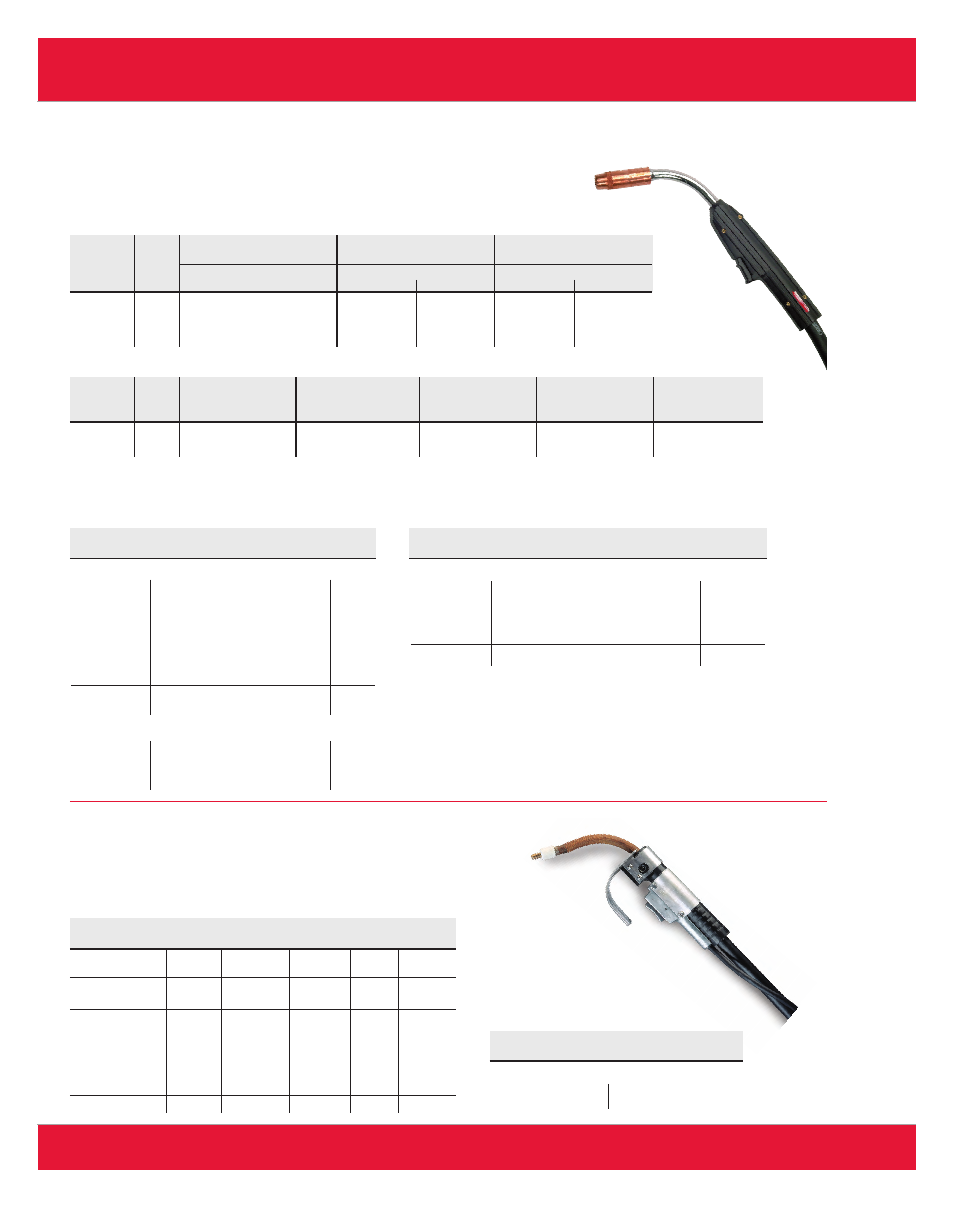

K126 Gun
Recommended General Options
www.lincolnelectric.com/mig-guns
Self-Shielded Cored Wire Guns
Durable and reliable, Magnum ® semiautomatic flux-cored gun and cable assemblies have been
proven tough in the field. These lightweight and maneuverable gun and cable assemblies are
designed for welding with self-shielded, flux-cored arc welding (FCAW-S) continuous feed wires.
Request publication E12.110.
Welding Guns, con’t.
Magnum ® Guns
Wire Diameter Wire Diameter Wire Diameter
Cable .035"-.045" (0.9-1.2 mm) .052"-1/16" (1.3-1.6 mm) 5/64"-3/32 (2.0-2.4 mm)
Gun Type Length Gun Connector Gun Connector Gun Connector
ft. (m) 600A Open-End 600A Open-End 500A Open-End 600A Open-End 500A Open-End
Standard 10 (3.0) — K598-5 — — —
12 (3.6) — K598-6 — — —
15 (4.5) — K598-7 K598-16 K598-11 K598-17
25 (7.6) K598-4 — — — —
Magnum ® 550 (550 amps, 60% duty cycle, CO
2
shielding gas.)
Cable Wire Diameter Wire Diameter Wire Diameter Wire Diameter Wire Diameter
Gun Type Length .035"-.045" (0.9-1.2 mm) .052"-1/16" (1.3-1.6 mm) 1/16"-5/64" (1.6-2.0 mm) .035"-3/64" (0.9-1.2 mm) 1/16" (1.6 mm)
ft. (m)
Standard 10 (3.0) — — — K684-17 K684-18
15 (4.5) K684-12 K684-14 K684-16 — —
Magnum ® 450 Water-Cooled (450 amps, 100% duty cycle, CO 2 shielding gas.)
Order
Model Number
Feed Plate Gun Bushing
10 Series, 15 Series K1500-1
& LF-72, LF-74
Lincoln Adapters (for Self-Shielded Cored Wire Guns)
MIG and Gas-Shielded Cored Wire Guns, con’t.
Diameter Length Order
Gun Type Amperage in. (mm) ft. (m) Angle Number
K126 350 .062-3/32 10 (3.0) 62° K126-1
(1.6-2.4) 15 (4.5) 62° K126-2
K345 350 .068-5/64 10 (3.0) 90° K345-10
(1.7-2.0)
K115 450 3/32 (2.4) 10 (3.0) 45° K115-10
10 (4.5) 82° K115-3
15 (4.5) 82° K115-4
7/64 (2.8) 10 (3.0) 82° K115-1
15 (4.5) 45° K115-8
15 (4.5) 82° K115-2
K116 600 7/64 (2.8) 15 (4.5) Straight K116-2
Magnum ® Self-Shielded Cored Wire Guns
Magnum ® 550 Gun
166
Order
Brand Model Number
Magnum ® 200, 300 & 400 Guns
Lincoln LN ™ -7 Series, LN ™ -25 K466-1
LN ™ -8, LN ™ -9 (using smaller than 1/16” wire)
LN ™ -35
Wire-Matic Power MIG K466-6
LN ™ -8, LN ™ -9 K466-8
Small wire feed welders K466-9
(e.g. SP-100T, SP-125 Plus)
Lincoln/ Power Feed 10, LN ™ -10, LN ™ -15, LN ™ -72, K466-10
Tweco ® Adapted LF-4, DH-10 & STT-10
Magnum ® 550 Gun
Lincoln LN ™ -7 Series, LN ™ -25 LN ™ -8, K613-1
LN ™ -9 using smaller than 1/16" wire
LN ™ -8, LN ™ -9 Series (1/16" & larger wires) K613-6
10 Series Feeders K613-7
Lincoln Adapters (for MIG and Gas-Shielded Cored Wire Guns)
Order
Brand Model Number
Magnum ® 450WC Gun
Lincoln LN ™ -7, LN ™ -8, & LN ™ -9 Series K489-1
LN ™ -9 with K319 Dual Procedure Kit K573-1
LN ™ -25 K489-2
Power Feed 10, 10 Series Feeder & LN ™ -15 K489-7
Wire-Matic, Power MIG Small wire feed K489-8
Tweco Adapted No. 2, No.3, or No. 4 Guns K489-4
Lincoln Adapters (for 450WC Gun)
