Recommended General Options
Welding Guns
Magnum ® Guns
MIG and Gas-Shielded Cored Wire Guns
Magnum ® MIG and gas-shielded cored wire guns are engineered with the welder in mind. The handle grip design provides balance, reduces operator fatigue and offers a sure,
confident grip. Magnum ® gas-shielded welding guns have outstanding construction including a proprietary wound liner, a durable abrasion-resistant gun cable outer jacket and a
gooseneck that’s three-layer insulated. Gun nozzles, contact tips, gas diffusers and nozzle insulators are manufactured to tight tolerances and deliver consistent arc performance,
improved electrical conductivity and wire feedability.
For more information on Magnum ® MIG (GMAW) and gas-shielded cored welding guns, request publication E12.10.
Cable
Gun Type Length Wire Diameter Wire Diameter
ft. (m) .025"-.035" (0.6-0.9 mm) .035"-.045" (0.9-1.2 mm)
Standard 10 (3.0) K530-5 K530-3 (FCAW-SS only)
K530-6 (1)
Magnum ® 100L (100 amps, 60% duty cycle, CO
2
shielding gas. Includes Gun Connector.)
Cable
Gun Type Length Wire Diameter
ft. (m) .035"-.045" (0.9-1.2 mm)
Standard 12 (3.6) K533-7 (Fixed Gas Nozzle)
15 (4.5) K533-3 (Adjustable Gas Nozzle)
Magnum ® 250L (250 amps, 60% duty cycle, CO 2 shielding gas. Includes Gun Connector.)
Cable
Gun Type Length Wire Diameter
ft. (m) .035"-.045" (0.9-1.2 mm)
Standard 12.5 (3.8) K524-5 (Fixed Gas Nozzle)
Magnum ® 250SP (250 amps, 60% duty cycle, CO
2
shielding gas. Includes Gun Connector.)
Wire Diameter Wire Diameter Wire Diameter
Cable .035"-.045" (0.9-1.2 mm) .052"-1/16" (1.3-1.6 mm) 1/16"-5/64 (1.6-2.0 mm)
Gun Type Length Gun Connector Gun Connector Gun Connector
ft. (m) Open-End Fast-Mate ™ Package Open-End Fast-Mate ™ Open-End
Standard 10 (3.0) K470-1 K478-1 — — K478-3 —
12 (3.6) K470-7 — — — — —
15 (4.5) K470-2 K478-2 K1802-1 (2) K470-4 — K470-6
Magnum ® 300 (300 amps, 60% duty cycle, CO 2 shielding gas.)
Wire Diameter Wire Diameter Wire Diameter
Cable .035"-.045" (0.9-1.2 mm) .052"-1/16" (1.3-1.6 mm) 1/16"-5/64" (1.6-2.0 mm)
Gun Type Length Gun Connector Gun Connector Gun Connector
ft. (m) Open-End Fast-Mate ™ Package Open-End Fast-Mate ™ Package Open-End Fast-Mate ™ Package
Standard 10 (3.0) K471-1 K479-1 — — — — — — —
12 (3.6) K471-7 K479-7 — K471-8 — — — — —
15 (4.5) K471-2 K479-2 K2286-1 (2) K471-4 K479-4 K471-22 (3) K471-6 K479-6 K471-23 (3)
K471-21 (3)
20 (6.1) K471-10 — — K471-11 — — — — —
25 (7.6) K471-13 — — K471-14 — — K471-15 — —
Dual 15 (4.5) K574-1 K575-1 — K574-2 K575-2 — — — —
Schedule 25 (7.6) K574-4 — — — — — — — —
Dual 10 (3.0) — K1723-1 — — — — — — —
Procedure 15 (4.5) K1722-2 K1723-2 — — — — — — —
25 (7.6) K1722-3 K1723-3 — — — — — — —
Short Neck 10 (3.0) K541-1 — — — — — — — —
15 (4.5) K541-3 — K541-23 (2) — — — — — —
Magnum ® 400 (400 amps, 60% duty cycle, CO 2 shielding gas.)
Wire Diameter Wire Diameter
Cable .025"-.030" (0.6-0.8 mm) .035"-.045" (0.9-1.2 mm)
Gun Type Length Gun Connector Gun Connector
ft. (m) Open-End Fast-Mate ™ Package Open-End Fast-Mate ™ Package
Standard 10 (3.0) — — — K497-2 K498-2 —
12 (3.6) — — — K497-6 K498-6 —
15 (4.5) K497-3 — K497-20 (3) K497-1 K498-1 K497-21 (3)
Magnum ® 200 (200 amps, 60% duty cycle, CO
2
shielding gas.)

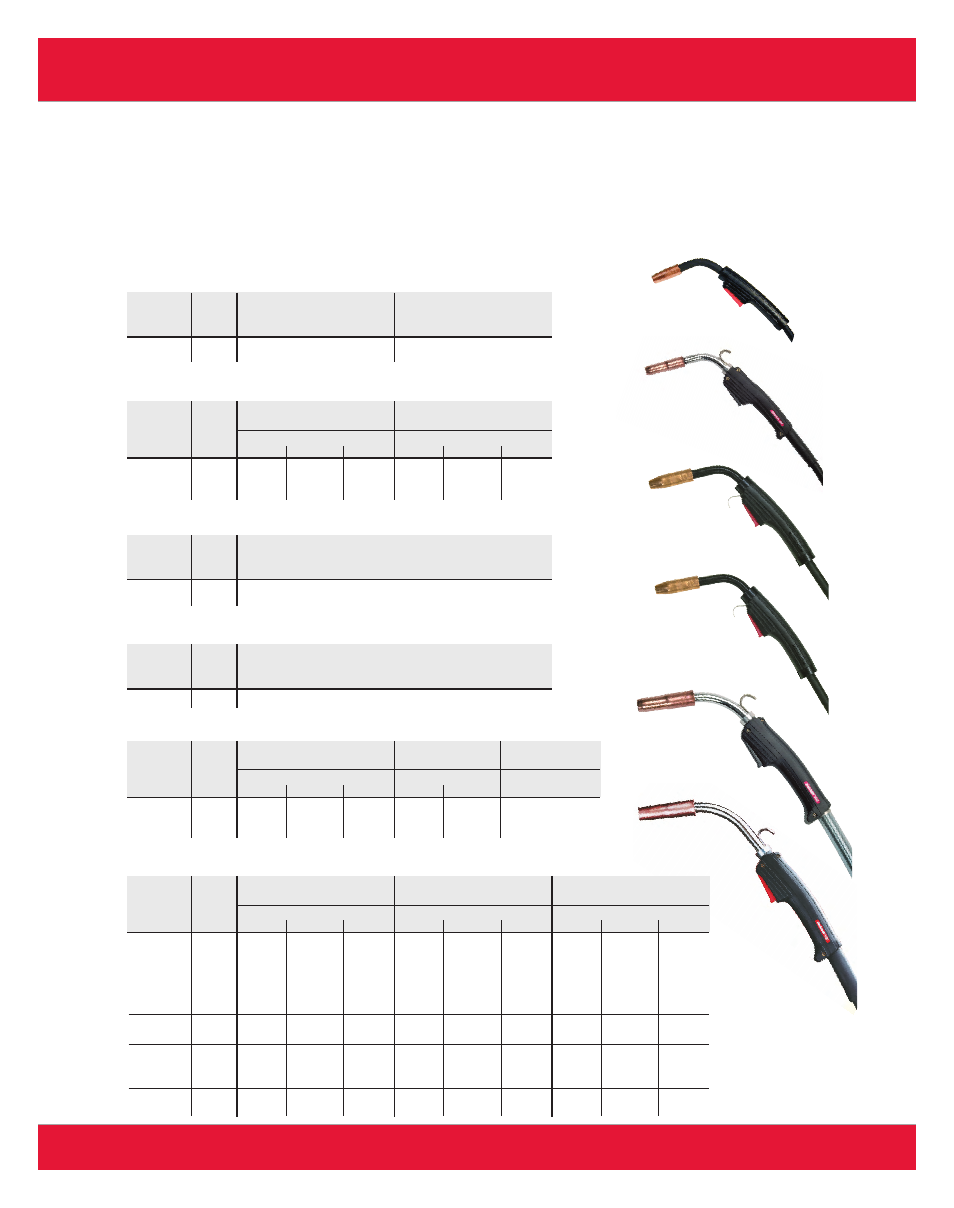

Magnum ® 100L Gun
Magnum ® 200 Gun
Magnum ® 250L Gun
Magnum ® 250SP Gun
Magnum ® 300 Gun
Magnum ® 400 Gun
165
(1) Includes 4-pin MS-Type
connection for trigger control
(2) Includes K466-1 Connector Kit
(3) Includes K466-10 Connector Kit
