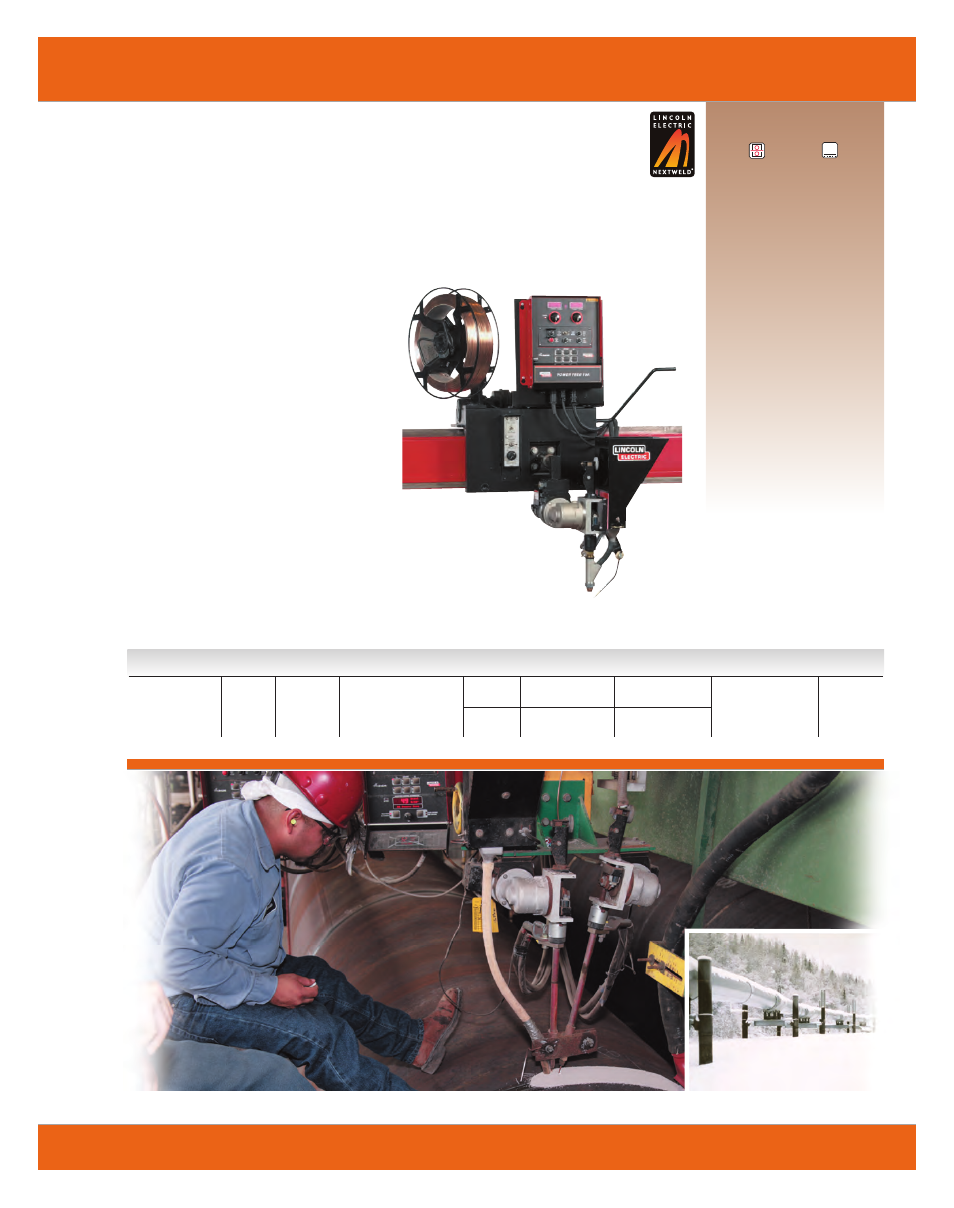

Power Feed ™ 10A Controller
Designed for use with the Power Wave ® AC/DC 1000 ™ power source, the Power Feed ™ 10A
eliminates the need for a separate AC and DC controller, making this powerful hard automation
system controllable, adaptable and easy to use.
ArcLink ® Controller for Power Wave ® AC/DC Systems
• Versatile system set-up options for stand-alone or PLC
configurations help you customize the weld cell to
make your operations as efficient as possible.
• Lincoln’s Waveform Control Technology ® gives
you the ability to select the right waveform for
each application.
• The Power Feed ™ 10A Controller provides clear
dual digital display of set-up and weld modes,
six memories, AC controls, strike/start/end
options, travel stop/start, and timers.
• Controls can be adjusted on-the-fly to change
penetration and/or deposition rates with
Variable Frequency, Variable Amplitude and
Variable Balance.
• Easy-to-use switch panel can be removed
and used as a Remote Control Pendant to
create a versatile work station set-up.
• The motor conversion kit allows the use of
existing NA-3, NA-4, and NA-5 feed head
mounting hardware.
• Three-year warranty on parts and labor.
Processes
• Submerged Arc
Output Input
Unit Includes
• Power Feed
™ 10A Control Box
• Remote Pendant
• Remote Pendant Cable, 10 ft.
(3.0 m)
Key Options
• K2311-1 Power Feed
™ 10SM
• K2370-1 Power Feed ™ 10S Head
• K2312-1 Power Feed ™ 10SF Head
• K1842-110 Weld Power Cable,
Lug to Lug, 110 ft. (33.5 m)
• K2462-1 Power Feed ™ 10A
Mounting Bracket
• More options at end of section
Power Sources
• K2344-2 Power Wave
®
AC/DC 1000 ™ 380/400/460/500/
575/3/50/60
Literature
E9.165
40
VDC
Product Product Rated Output Wire Feed Speed Wire Size Range H x W x D Net Weight
Name Number Input Power Current /Duty Cycle Gear Box ipm (m/min) Solid - inches (mm) inches (mm) lbs.(kg)
Power Feed ™ 10A K2362-1 40 VDC 100A/100% 142:1 (1) 10-200 5/32-7/32 15 x 13 x 4 25
Controller (0.25-5.08) (4.0-5.6) (381 x 259 x 102) (11.3)
with Wire Drive
95:1 (1) 10-300 1/8-5/32
(0.25-7.62) (3.2-4.0)
(1) 142:1 gear box is standard. Conversion Kit supplied for conversion to 95:1 with Wire Drive (K2370-1, K2312-1, K2311-1).
Submerged arc welding with Power Wave ® AC/DC 1000 and Power Feed ™ 10A Controller.
Automatic Wire Feeders
