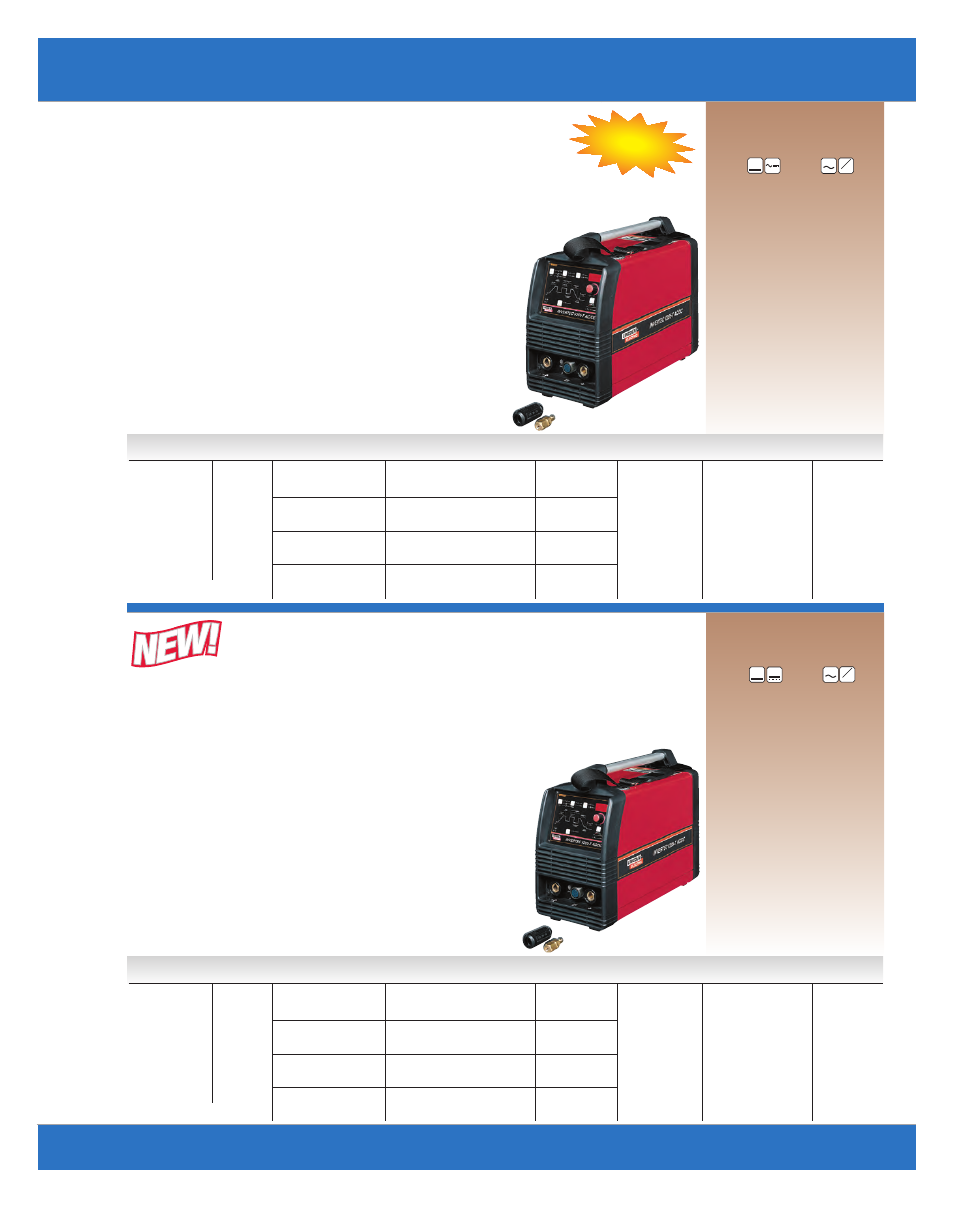

Processes
• Stick
• TIG
Output Input
One-Pak ® Pkg. (K2671-1) Includes
• K2629-1 Invertec ® V205-T DC
• K2266-1 TIG-Mate ™ 17 air-cooled
TIG Torch Starter Pack
• K870 Foot Amptrol ®
Key Options
• K2413-1 TIG Mate
™ 9 Air-Cooled
TIG Torch Starter Pack
• K870 Foot Amptrol ®
• K963-3 Hand Amprtol ®
• More options at end of section
Literature
E3.110.1
CC DC 1
PHASE
60
50
Hz
Invertec
®
V205-T AC/DC
The Invertec ® V205-T AC/DC is a compact, TIG power source intended for critical AC or
DC TIG welding. The NEW AND IMPROVED V205-T AC/DC has many new features!
Code Quality AC/DC TIG Welding
Processes
• Stick
• TIG
Output Input
One-Pak ® Pkg. (K2350-2) Includes
• K1855-4 V205-T AC/DC
• 230V Input Cord & Plug
• Adjustable Shoulder Strap
• K870 Foot Amptrol
®
• K2266-1 TIG Mate ™ 17 TIG Torch
Starter Kit
Key Options
• K2266-1 TIG Mate
™ 17 Air-Cooled
TIG Torch Starter Pack
• K870 Foot Amptrol ®
• K963-3 Hand Amprtol ®
• Fume Extraction System
•
More options at end of section
Literature
E3.110
CC AC
DC
1
PHASE
60
50
Hz
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output (1) Output Range inches (mm) lbs.(kg)
Invertec ® K1855-4 115/1/50/60 150A/16.0V/40% TIG 34.0A 6-200A AC/DC 15.0 x 8.5 x 19.0 38
V205-T AC/DC 120A/14.8V/60% TIG 25.0A Max OCV: 53V (381 x 216 x 483) (17.3)
100A/14.0V/100% TIG 20.0A
230/1/50/60 200A/18.0V/40% TIG 30.0A
170A/16.0V/60% TIG 18.0A
140A/15.6V/100% TIG 15.0A
115/1/50/60 110A/24.4V/35% Stick 34.0A
90A/23.6V/60% Stick 28.0A
70A/22.8V/100% Stick 20.0A
230/1/50/60 180A/27.2V/35% Stick 30.0A
150A/26.0V/60% Stick 23.0A
130A/25.2V/100% Stick 19.0A (1) Input current on 60 hertz input.
• Added Stick Crisp Mode for exceptional Fleetweld ® 5P & 5P+ (E6010) Performance.
• Improved TIG starting. Now starts DC (-) to maintain a sharp tungsten
• Adjustable DC strike mode – Allows adjustment of a hotter or colder
start depending on the tungsten diameter.
• Voltage Reduction Device ™ (VRD ™ ) – Reduces the open circuit voltage
in STICK mode for use in electrically hazardous conditions or when
the use of a VRD is required.
• 200 amps @ 40% duty cycle is the highest output rating in this
machine class
• Fan-As-Needed ™ (F.A.N. ™ ) – Fan only operates when needed
to reduce power consumption, noise and dust in machine
• Three-year Lincoln Warranty on parts and labor
NEW
&
IMPRO
VED
NEW
&
IMPRO
VED
www.lincolnelectric.com/tig-welders
TIG Welders
15
Invertec
®
V205-T DC
Code Quality DC TIG Welding
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output (1) Output Range inches (mm) lbs.(kg)
Invertec ® K2629-1 115/1/50/60 150A/16.0V/40% TIG 34.0A 6-200A DC 15.0 x 8.5 x 19.0 38
V205-T DC 120A/14.8V/60% TIG 25.0A Max OCV: 53.7V (381 x 216 x 483) (17.3)
100A/14.0V/100% TIG 20.0A
230/1/50/60 200A/18.0V/40% TIG 30.0A
170A/16.0V/60% TIG 18.0A
140A/15.6V/100% TIG 15.0A
115/1/50/60 110A/24.4V/35% Stick 34.0A
90A/23.6V/60% Stick 28.0A
70A/22.8V/100% Stick 20.0A
230/1/50/60 180A/27.2V/35% Stick 30.0A
150A/26.0V/60% Stick 23.0A
130A/25.2V/100% Stick 19.0A (1) Input current on 60 hertz input.
• Added Stick Crisp Mode for exceptional Fleetweld ® 5P & 5P+ (E6010) Performance.
• Improved TIG starting – Starts DC(-) to maintain a sharp tungsten
• Adjustable DC strike mode – Allows adjustment of a hotter or colder
start depending on the tungsten diameter.
• Voltage Reduction Device ™ (VRD ™ ) – Reduces the open circuit voltage
in STICK mode for use in electrically hazardous conditions or when
the use of a VRD
™ is required.
• 200 amps @ 40% duty cycle – highest output rating in this machine class.
• Fan-As-Needed ™ (F.A.N. ™ ) – Fan only operates when needed to reduce
power consumption, noise and dust in machine
• Three-year Lincoln Warranty on parts and labor
The Invertec ® V205-T DC is a compact, TIG power source intended for critical DC TIG welding.
From maintenance to production fabrication, to motorsports, aerospace, nuclear piping, and
shipbuilding, this feature-packed inverter is flexible enough for almost any job!
