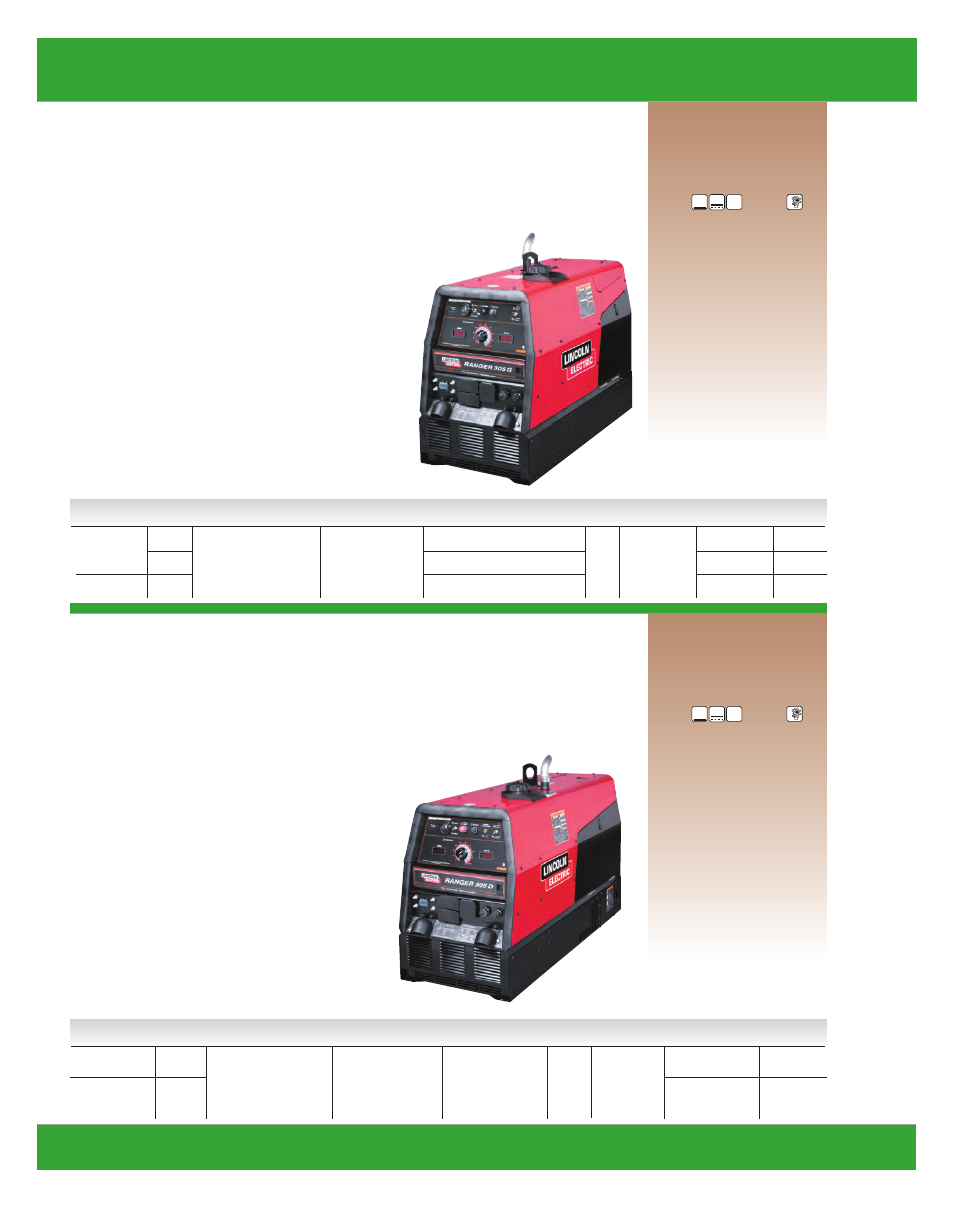

Ranger
®
305 G
For contractors with a gasoline fleet, here’s a powerful stick, TIG, wire and pipe welding
gasoline engine-driven welder that is ready for all day, everyday performance. Rugged
and dependable, the Ranger
® 305 G is built with a totally enclosed case for
maximum protection. The 12 gallon (45 L) fuel tank will last the entire day.
300 Amp DC Gasoline Engine-Driven Welder
• Excellent DC multi-process welding for general purpose
stick, downhill pipe (stick), TIG, cored-wire, MIG (100% CO
2
and blended gas) and arc gouging with up to 3/16" (4.8 mm)
carbons.
• Lincoln’s ® Chopper Technology ® provides easy starts, a
smooth arc, low spatter and excellent bead appearance.
• A portable powerhouse—Delivers 10,500 peak (9,500
continuous) watts of 120V/240V AC generator power.
• Arc force control provides a soft or more forceful
digging arc.
• Built-in “hot” start for easier starts and restrikes.
• Touch Start TIG ® DC—Lift tungsten to start the arc.
• Three-year warranty on welder. (Engine is
warranted separately by the manufacturer.)
Ranger
®
305 D
For contractors with a diesel fleet, here’s a powerful stick, TIG, wire and pipe welding diesel
engine-driven welder. Rugged and dependable, the Ranger
® 305 D is built with a totally
enclosed case for maximum protection. The 12 gallon (45 L) fuel tank will last the
entire day. Lincoln’s
® Ranger ® 305 D . . . It's ready for a workout!
300 Amp DC Diesel Engine-Driven Welder
• Excellent DC multi-process welding for general pur-
pose stick, downhill pipe (stick), TIG, cored-wire, MIG
(100% CO
2
and blended gas) and arc gouging with up
to 3/16" (4.8 mm) carbons.
• Lincoln’s ® Chopper Technology ® provides easy starts,
a smooth arc, low spatter and excellent bead
appearance.
• A portable powerhouse—delivers 10,000 peak (9,500
continuous) watts of 120V/240V AC generator power.
• Arc force control provides a soft or more forceful
digging arc.
• Built-in “hot” start for easier starts and restrikes.
• Touch Start TIG ® DC—Lift tungsten to start the arc.
• Three-year warranty on welder. (Engine is
warranted separately by the manufacturer.)
Processes
• Stick
• TIG
• MIG
• Flux-Cored
• Gouging
Output Input
One-Pak ® Package Includes
• K1726-4 Ranger ® 305G
• K704 Accessory Kit, 400 Amp
• K2613-1 LN
™ -25 PRO Wire Feeder
• K126-2 Gun and Cable
• KP1697-068 Drive Roll Kit
• .072" NR
® -232, 25 lb. Spool
Key Options
• K886-2 Canvas Cover
• K2635-1 Small 2-Wheel Road
Trailer with Duo-Hitch ™ : Ball/Eye
Hitch Combo
Ball/Eye Hitch
• K704 Accessory Kit, 400 Amp
• K857-1 Remote Output Control,
100 ft. (30 m)
• More options at end of section
Literature
E6.117
DC
CV
CC
kW
5 . 10 P G
Processes
• Stick
• TIG
• MIG
• Flux-Cored
• Gouging
Output Input
One-Pak ® Package Includes
• K1727-2 Ranger ® 305D
• K704 Accessory Kit, 400 Amp
• K2613-1 LN
™ -25 PRO Wire Feeder
• K126-2 Gun and Cable
• KP1697-068 Drive Roll Kit
• .072" NR
® -232, 25 lb. Spool
Key Options
• K2635-1 Small 2-Wheel Road
Trailer with Duo-Hitch ™ : Ball/Eye
Hitch Combo
• K704 Accessory Kit, 400 Amp
• K857-1 Remote Output Control,
100 ft. (30 m)
• More options at end of section
Literature
E6.118
DC
CV
CC 10
kW
P D
Product Product Rated Output Output Type of No. of HP & Speed H x W x D Net Weight
Name Number Current /Voltage/Duty Cycle Range Engine Cyl. (rpm) inches (mm) lbs.(kg)
Ranger ® 305 G K1726-4 305A DC CC/29V/100% 20-305A DC Kohler ® OHV Command ® CH23S Gas 2 23 @ 3600 36.2 x 21.5 x 42.3 510
300A DC CV/29V/100% 40-300A Pipe Mechanical Fuel Pump (920 x 546 x 1074) (231)
K1726-5 20-250A DC TIG Kohler ® OHV Command ® CH23S Gas — —
14-29V CV Electrical Fuel Pump
Ranger ® 305 G K2353-2 10,500 watts peak Kohler ® OHV Command ® CH23S Gas — —
One-Pak ® Package 9,500 watts continuous Mechanical Fuel Pump
Product Rated Output Output Type of No. of HP & Speed H x W x D Net Weight
Name Current /Voltage/Duty Cycle Range Engine Cyl. (rpm) inches (mm) lbs.(kg)
Ranger ® 305 D K1727-2 305A DC CC/29V/100% 20-305A DC Kubota ® D722 Diesel 3 18.8 @ 3600 35.8 x 21.5 x 52.3 698
300A DC CV/29V/100% 40-300A Pipe (909 x 546 x 1327) (317)
20-250A DC TIG
Ranger ® 305 D K2352-1 14-29V CV — —
One-Pak ® Package 10,000 watts peak — —
(9,500 watts continuous)
