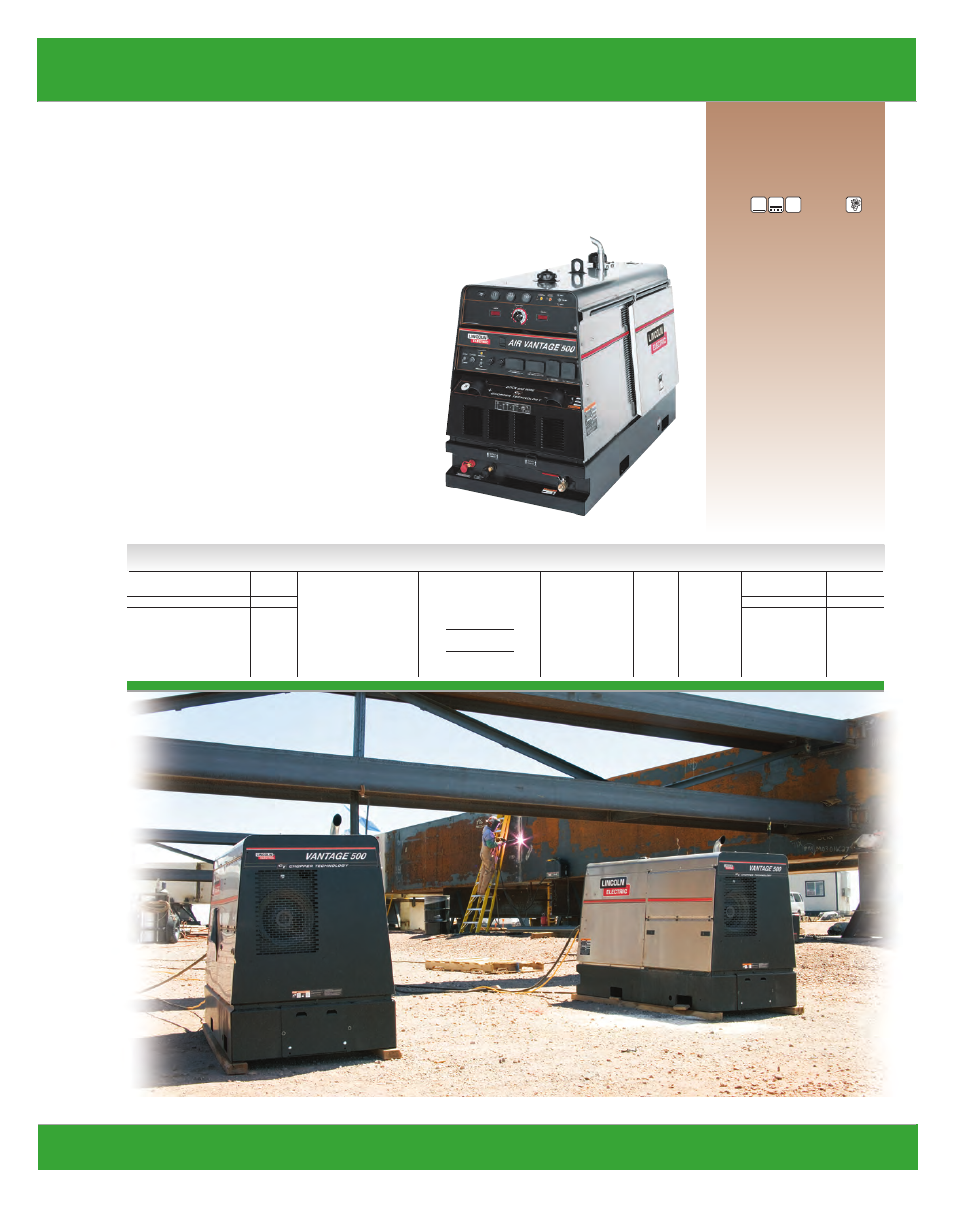

When you need it all, consider the rugged Air Vantage 500 for railroad, mining, heavy
duty construction, and rental fleet use. A direct gear-driven compressor pumps
plenty of air for arc gouging with up to 3/8" carbons, plasma cutting or
other air tools. A powerful 500 amps @ 100% duty cycle is enough
for almost any stick, TIG, MIG or flux-cored welding project.
It’s Three in One — Welder, Generator and Air Compressor
• Rotary screw compressor rated at 60 CFM, 100 PSI,
100% duty cycle.
• Multi-process powerhouse—500 amps at 100%
duty cycle, or 575 amps at 50%.
• Plenty of AC Generator Power
– 20 kW continuous 3-phase 240V AC
– 12 kW continuous 1-phase 120/240V AC
• Stainless steel corrosion-resistant enclosure.
• Three-year warranty on welder. (Engine is
warranted separately by the manufacturer.)
Processes
• Stick
• TIG
• MIG
• Flux-Cored
• Gouging
Output Input
Ready-Pak ® Package (K2366-3)
Includes
• Air Vantage
® 500
• Road Trailer with Duo-Hitch ™ :
Ball/Eye Hitch Combo
• Fender and Light Kit
• Cable Rack
• Cable Connectors (qyt. 2)
• Electrode Cable 3/0, two 50 ft.
(15.3m) lengths
• Electrode Cable 3/0, 10 ft. (3 m)
• Work Cable 3/0, 50 ft (15.3 m)
• 400A Electrode Holder
• 500A Work Clamp
Key Options
• K2636-1 Medium Two-Wheel
Road Trailer with Duo-Hitch ™ :
Ball/Eye Hitch Combo
• K704 Accessory Kit, 400 Amp
• K857-1 Remote Control, 100 ft.
•
More options at end of section
Literature
E6.217
Engine Drives: Industrial/Construction
www.lincolnelectric.com/engine-drives
DC
CV
CC 20
kW
D
Product Product Rated Output Type of No. of HP & Speed H x W x D Net Weight
Name Number Current /Voltage/Duty Cycle Output Range Engine Cylinders (rpm) inches (mm) lbs.(kg)
Air Vantage ® 500 K2325-1 500A/40V/100% 30-575A DC Cummins ® B3.3 Diesel 4 56 @ 1,800 50.8 x 32.7 x 63.1 1,690
550A/36V/60% 40-300A Pipe (1290 x 831 x 1603) (766)
Air Vantage ® 500 One-Pak ® K2364-3 575A/35V/50% 20-250A DC TIG — —
Air Vantage ® 500 Ready-Pak ® K2366-3 14-40V CV — —
3-Phase AC Power:
20 kW Continuous
1-Phase AC Power:
12 kW Continuous
Compressor: 60 CFM, 100 PSI
