TIG, con’t.
(1) Pre-configured package with K1622-1 Twist-Mate ® adapter and 1/16" gas lens collet body,
collet, and gas lens installed.
(2) Pre-configured package with K1622-3 Twist-Mate ® adapter , 1/8" collet, collet body, and
gas lens installed.
PRO-TORCH ™ TIG TORCHES
Light and easy to use, these torches feature flexible head models that give you the power of maximum versatility and maneuverability. A molded,
knurled handle gives you a sure grip so you can focus on the weld. Available in either air-cooled or water-cooled designs.
Request publication E12.150 for details.
Tungsten
Rated Range Length Number Product
Model Amperage in. (mm) ft. (m) of Cables Number
Air-Cooled TIG Torches
PTA-9 125 .020-1/8 12.5 (3.8) 1 K1781-1
125 (0.8-3.2) 12.5 (3.8) 2 K1781-2
125 25.0 (7.6) 1 K1781-3
125 25.0 (7.6) 2 K1781-4
PTA-9F 125 .020-1/8 25.0 (7.6) 1 K1781-6
(0.8-3.2)
PTA-9FV 125 .020-1/8 25.0 (7.6) 1 K1781-7
(0.8-3.2)
PTA-9 125 .020-1/8 12.5 (3.8) 1 K1781-8
Ultra-Flex ™ (0.8-3.2)
PTA-9F 125 .020-1/8 12.5 (3.8) 1 K1781-9
Ultra-Flex ™(1) (0.8-3.2)
PTA-17 150 .020-5/32 12.5 (3.8) 1 K1782-1
150 (0.5-4.0) 12.5 (3.8) 2 K1782-2
150 25.0 (7.6) 1 K1782-3
150 25.0 (7.6) 2 K1782-4
PTA-17F 150 .020-5/32 25.0 (7.6) 1 K1782-10
(0.5-4.0)
PTA-17FV 150 .020-5/32 25.0 (7.6) 1 K1782-11
(0.5-4.0)
PTA-17V 150 .020-5/32 12.5 (3.8) 1 K1782-6
150 (0.5-4.0) 12.5 (3.8) 2 K1782-7
150 25.0 (7.6) 1 K1782-8
150 25.0 (7.6) 2 K1782-9
PTA-17 150 .020-5/32 12.5 (3.8) 1 K1782-12
Ultra-Flex ™ (0.5-4.0)
PTA-17FV 150 .020-5/32 12.5 (3.8) 1 K1782-13
Ultra-Flex ™ (0.5-4.0)
PTA-26 200 .020-5/32 12.5 (3.8) 1 K1783-1
200 (0.5-4.0) 12.5 (3.8) 2 K1783-2
200 25.0 (7.6) 1 K1783-3
200 25.0 (7.6) 2 K1783-4
PTA-26F 200 .020-5/32 25.0 (7.6) 1 K1783-10
(0.5-4.0)
PTA-26FV 200 .020-5/32 25.0 (7.6) 1 K1783-11
(0.5-4.0)
PTA-26V 200 .020-5/32 12.5 (3.8) 1 K1783-6
200 (0.5-4.0) 12.5 (3.8) 2 K1783-7
200 25.0 (7.6) 1 K1783-8
200 25.0 (7.6) 2 K1783-9
PTA-26 (2) 200 .020-5/32 12.5 (3.8) 1 K1783-12
Ultra-Flex ™ (0.5-4.0)
Water-Cooled TIG Torches
PTW-18 350 .020-5/32 12.5 (3.8) 3 K1784-1
350 (0.5-4.0) 25.0 (7.6) 3 K1784-2
PTW-20 250 .020-1/8 12.5 (3.8) 3 K1784-3
250 (0.5-3.2) 25.0 (7.6) 3 K1784-4

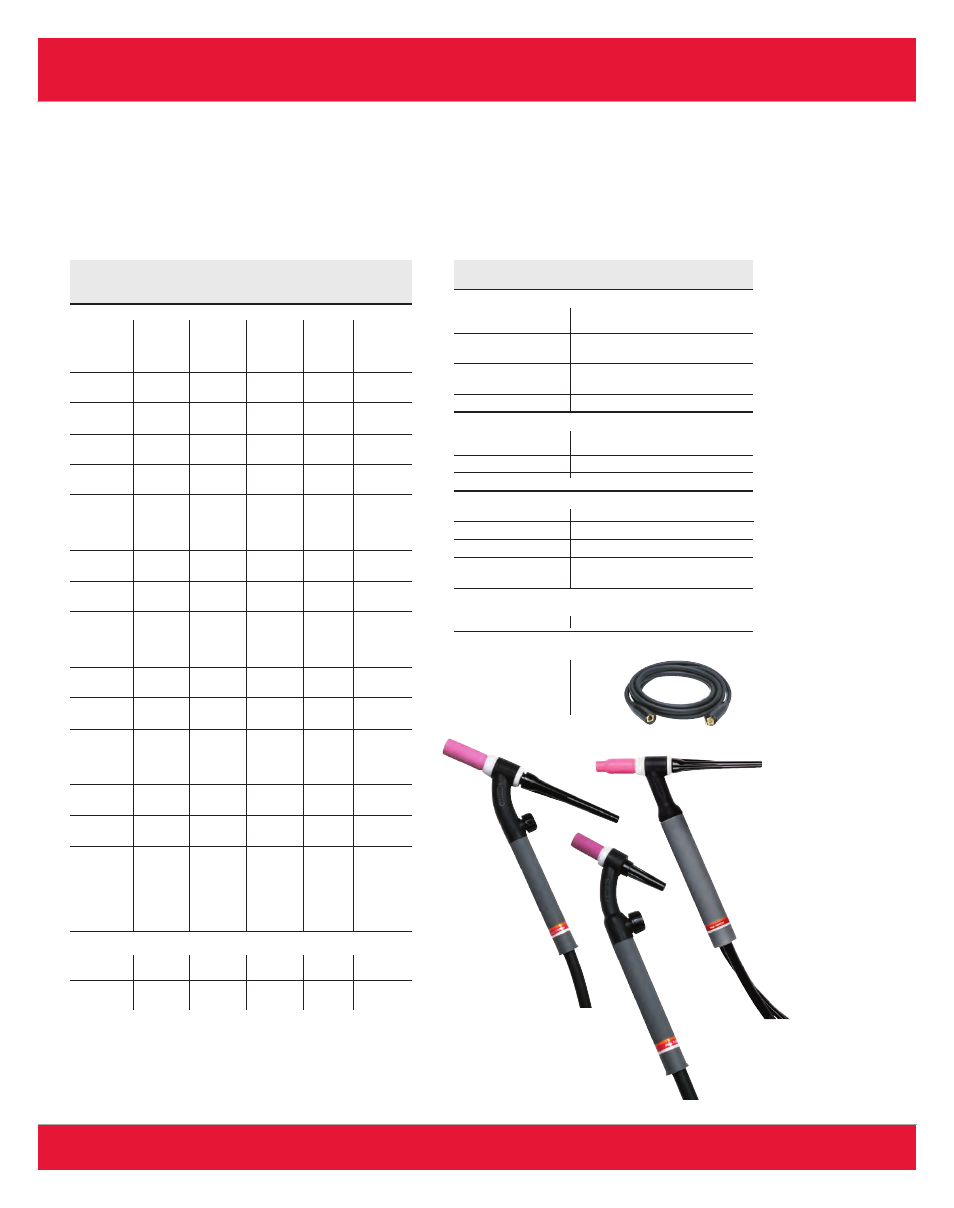

TIG Torches
PTA-17FV
PTW-18
PTA-9FV
Product
Model Number
For Precision TIG ® 275/375 Power Sources
PTA-26 K2166-1
(one-piece power cable)
PTA-9, -17 K2166-3
(one-piece power cable)
PTA-9, -17, -26 K2166-2
(two-piece power cable)
PTW-18, -20 No adapter required.
For Invertec ® V160-T, V205T AC/DC, V205T DC & Precision TIG ® 225
Power Sources
PTA-9, -17 K1622-1
PTW-18, -20 K1622-4
PTA-26 K1622-3
For TIG Module & Power Sources with 1/2" Stud Output Terminals
PTW-18, -20 K2505-2 and K1622-4
PTA-26, -26V K2505-2 and K1622-3
PTA-9, -17 K2505-2 and K1622-1
PTA-9, -17, -26 No adapter required
(two-piece power cable)
For Invertec ® V160-S, V275-S, V350-PRO and Power Sources with
Twist-Mate ® Power and Separate Gas
PTA-9FV, -17V, -17FV K2505-1 and K1622-1
For Invertec ® V100-S or V155-S Power Sources with small Twist-Mate ®
Power and Separate Gas
PTA-9FV, -17V, -17FV K960-2
Torch Extension (right) K2412-2
for PTA-9, -17, and -26
torches
Lincoln Adapters
