Lincoln Electric AC-225C - Manual (Page 4)

www.lincolnelectric.com/stick-welders
Stick Welders

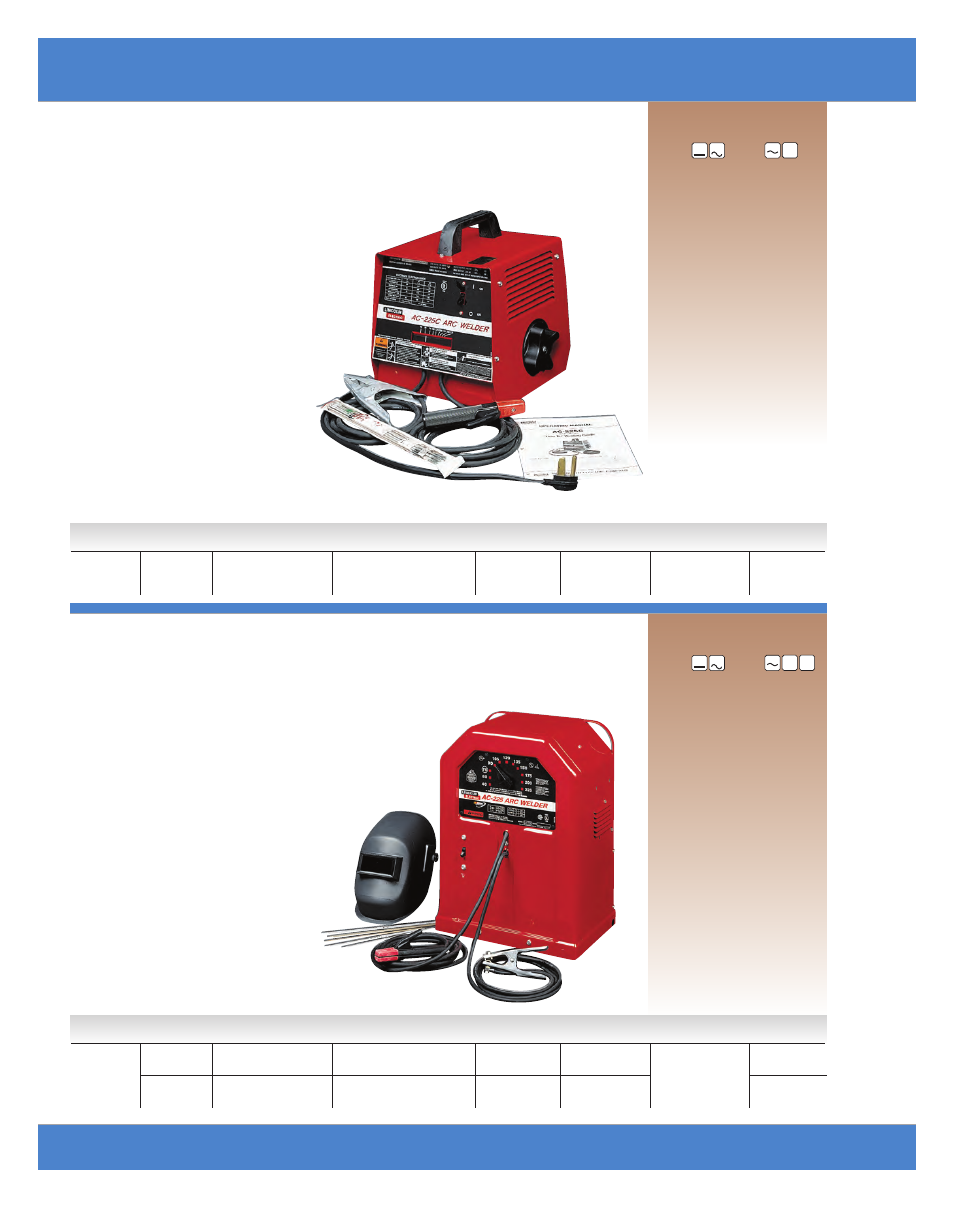

AC-225C
This compact continuous control stick welder delivers
smooth AC output of 40-225 amps for basic hobby and
repair welding.
Easy Set-Up for 16 Gauge and Up
• 40-225 amps AC continuous output control is
enough current for 3/16" (4.8 mm) diameter mild
steel general purpose stick electrodes and select
5/32" (4.0 mm) diameter electrodes.
• Recommended for mild, low alloy and stainless
steels from 16 gauge sheet metal to heavy plate.
• Easy to set up and easy to operate with
handy application/procedure chart on
faceplate.
• Three-year warranty on parts and labor.
AC-225
Use our popular AC-225 to stick weld mild steel, low alloy
and stainless steels as well as cast iron for common
repair and hobby projects.
AC General Purpose Welding
• 40-225 amps AC stepped output control is
enough for 3/16" (4.8 mm) diameter mild steel
general purpose stick electrodes and select
5/32" (4.0 mm) diameter electrodes.
• Weld 16 gauge sheet metal to heavy plate
on mild steel, low alloy stainless, cast iron
and hardfacing applications.
• Included Helmet and Sample Electrodes
allow you to start welding right away.
• Three-year warranty on parts and labor.
Processes
• Stick
Output Input
Unit Includes
• Insulated electrode holder and
cable
• Lightweight helmet with lenses
• Heavy duty work clamp and cable
• Sample pack of electrodes
• Helpful Welder’s Guide
• Input Cable with integrated plug
• K1170-4 also includes Wheel Kit
and Gloves
Key Options
• K761 Wheel Kit
•
More options at end of section
Literature
E2.30
Processes
• Stick
Output Input
Unit Includes
• Insulated electrode holder and
cable
• Heavy duty work clamp and cable
• Sample pack of electrodes
• Helpful Welder’s Guide
• Input Cable with integrated plug
Key Options
• K520 Utility Cart
•
More options at end of section
Literature
E2.40
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg)
AC-225C K1357 230/1/60 170A/25V/20% 45A 40-225 Amps 15.25 x 14 x 13.5 84
Max. 50A Max OCV: 58V (387 x 356 x 343) (38)
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg)
AC-225 K1170 230/1/60 225A/25V/20% (1) 50A 40-225 Amps 24 x 17.25 x 12 109
K1170-4 Max. OCV: 79V (610 x 438 x 305) (49.5)
K1290 220/1/50 225A/25V/15% 63A 50-250 Amps 108
Max. OCV: 76V (49.0)
(1) Except 75 amp setting which can be used continuously for 1 hour.
AC 1
PHASE
60
Hz
CC
AC 1
PHASE
60
Hz
50
Hz
CC
6
