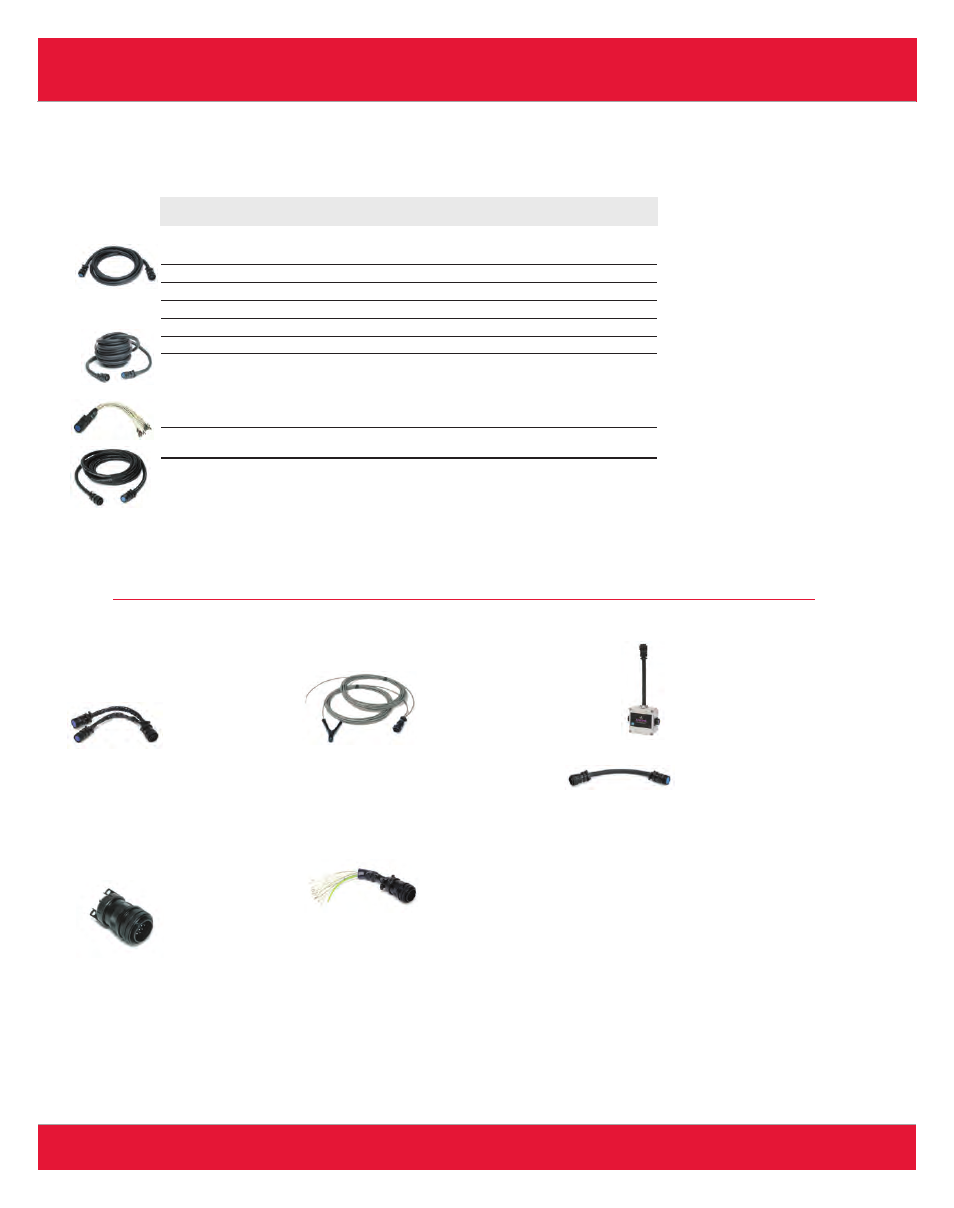

Recommended General Options
www.lincolnelectric.com
Wire Feeder, con’t.
CONTROL CABLES AND ADAPTERS
Description Connection Order No.
Wire Feeder Control Cables
Wire Feeder Control Cable Male 6-pin to female 14-pin K1818-10 (for LN ™ -7)
Wire Feeder Control Cable Male 9-pin to female 14-pin K1819-10 (for LN ™ -15, LN ™ -25)
Wire Feeder Control Cable Male 9-pin to female 14-pin K1820-10 (for LN ™ -8, LN ™ -9)
Wire Feeder Control Cable Male 14-pin to female 9-pin K1501-10 (for LN ™ -10, DH-10)
Wire Feeder Control Cable Male 14-pin to female 8-pin K2393-1, 25 ft. (for LN ™ -23P [K316L-2])
Wire Feeder Control Cable Male 14-pin to female 8-pin K2393-2, 75 ft. (for LN ™ -23P [K316L-2])
Extensions and Adapters
Wire Feeder Control Cable Extension Male 14-pin to female 14-pin K1797-10 for 10 ft. (3 m)
(May require K1818-10, K1819-10, K1797-25 for 25 ft. (7.6 m)
K1820-10 or K1501-10, depending K1797-50 for 50 ft. (15.2 m)
on the feeder) K1797-100 for 100 ft. (30.4 m)
Adapter Cable for Control Cable to Male 14-pin control cable to K1798
Terminal Strip of Power Source terminal strip
ArcLink ® /Linc-Net ™ Control Cables
ArcLink ® /Linc-Net ™ Control Cables For Power Wave ® /Power Feed ™ K1543-8 for 8 ft. (2.5 m)
Systems K1543-16 for 16 ft. (4.8 m)
K1543-25 for 25 ft. (7.6 m)
K1543-50 for 50 ft. (15.2 m)
K1543-100 for 100 ft. (30.4 m)
160
Sense Lead Kit
Recommended for extended
cable length. Application
allows machine to sense volt-
age directly at the work piece
for improved arc performance.
Order K940-25 for 25 ft.
(7.6 m)
Order K940-75 for 75 ft.
(23 m) for STT
® -II, Power
Wave ® 355M, Power Wave ®
455M/STT ®
Universal Adapter Plug
The adapter plug allows user
connection of any suitable
accessory or wire feeder
cable to the output contactor
and auxiliary power circuitry
of power source with 14-pin
receptacle. Consists of a
14-pin MS-type (Amphenol)
plug with 8" (203mm) stripped
leads.
Order K867
ArcLink ® “T” Connector Kit
For connecting multiple feed-
ers to a single power source.
Order K2429-1
Adapter for Competitive
Power Sources
Allows wire feeder to connect
to select Miller Electric
®
power sources.
Order K2335-1 for LF-72,
LF-74
CONTROL CABLES AND
ADAPTERS
Remote Control Cable
Adapter
Y connector adapter for con-
necting K857 Remote Output
Control (6 pin plug connec-
tion) and wire feeder input
cable (14-pin plug connection)
to power source 14-pin recep-
tacle.
Order K864 for CV-305,
CV-400, CV-655, DC-400,
DC-600, DC-655
Jumper Plug Kit
Required to close the contac-
tor in the power source when
the power source is used with
a remote output contactor
such as the contactor in
across-the-arc wire feeders.
Order K484 for LN
™ -15,
LN ™ -25
