Plasma Cutting Systems

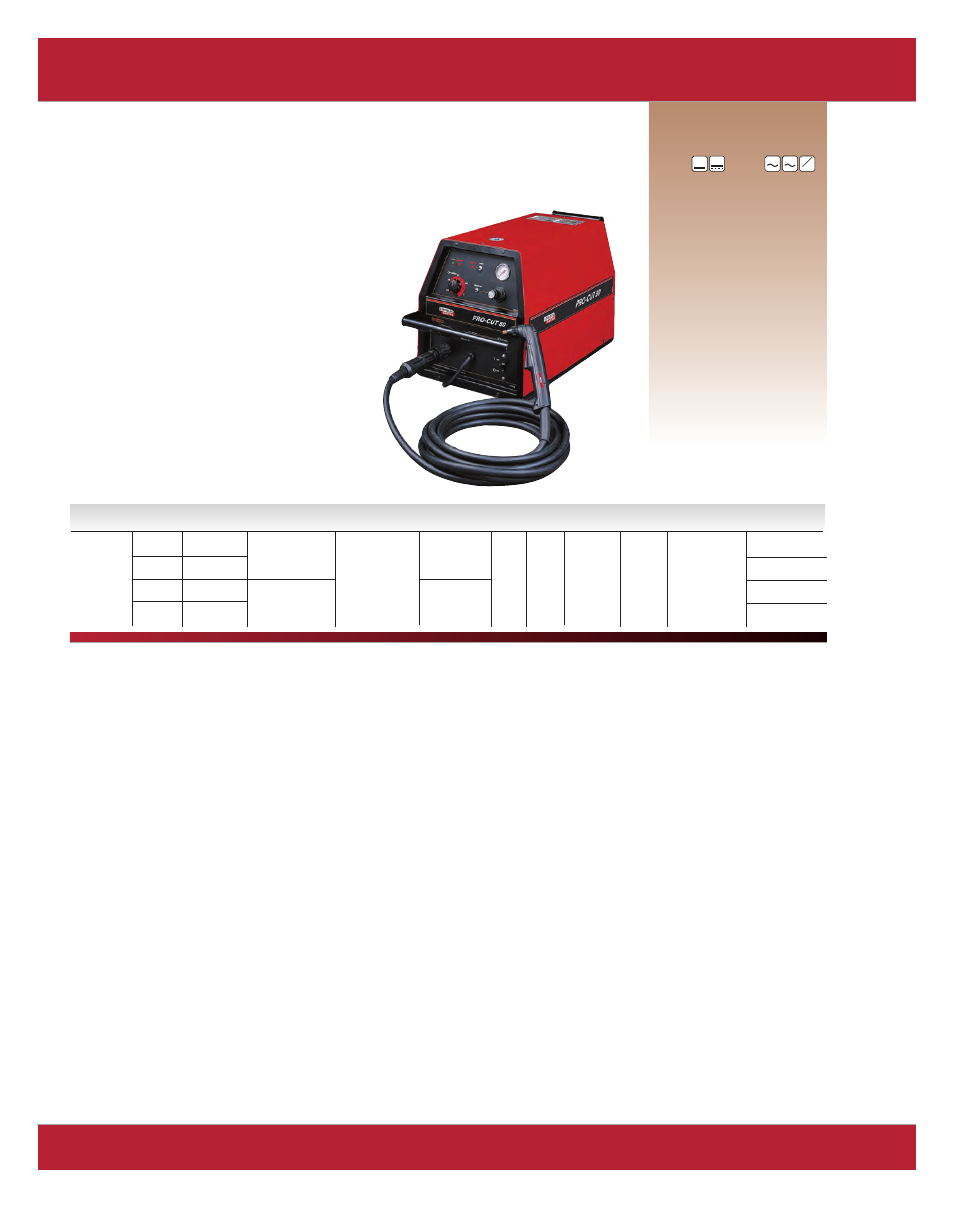

Pro-Cut ® 80
The Pro-Cut ® 80 exhibits maximum cutting ability with a full 85 amps
of power, slicing through metal up to 1-1/4" (32 mm) thick with
ease! Using six patented technologies, the unit is perfect
for maintenance, fabrication or other applications
which require cutting of thicker metals.
• Dual winding technology for fast arc transfers and
improved cut quality.
• Patented PCT 80 torch and VORTECH ™ technology
consumables for excellent cutting speed and
performance.
• Parts-In-Place ™ safety indicator and lockout circuit
to protect both the operator and the system.
• “Valet Style” undercarriage available for easy
transport around the shop or site.
• CNC/Robotic Interface is included as a standard
feature.
• Three-year warranty on parts and labor. (1-year
warranty on plasma torch.
Product Product Torch Length Input Power Rated Output Input Current Pilot Output Air Pressure Air Flow H x W x D Net Weight
Name Number ft. (m) Voltage/Phase/Hertz Current /Duty Cycle @ Rated Output Current Range Required Rate in. (mm) (w/Torch) lbs.(kg)
Pro-Cut ® 80 K1581-1 25 (7.6) 208/230/460/ 80A/60% 1-ph: 96/87/48A 18A 35-85A 70 PSI 480 SCFH 13.7 x 16.5 x 29.5 98
1/3/50/60 65A/100% 3-ph: 47/44/25A (348 x 419 x 749) (44.5)
K1581-2 50 (15.2) 113
(51.4)
K1581-3 25 (7.6) 460/575/3/50/60 3-ph: 28/20A 98
(44.5)
K1581-4 50 (15.2) 113
(51.4)
DC 1
PHASE
3
PHASE
60
50
Hz
CC
Processes
• Air Plasma Cutting
• Gouging
Output Input
Unit Includes
• PCT 80 Torch
• Work lead and clamp
• Spare consumables
• Built-in air filter and pressure
regulator with gauge
Key Options
• K1838-1 Undercarriage – Valet
Style
• K1764-1 Inverter and Wire
Feeder Cart
• K1625-1 Combination Circle
Cutting Kit
• K1628-1 Suction Pivot
• K1571-3 PCT 80 Machine Torch,
25 ft. (7.6 m)
• K1571-5 PCT 80 Robotic Torch,
25 ft. (7.6 m)
• More options at end of section
Literature
E11.70
Lincoln’s Best Plasma Cutting System Cuts Up To 1-1/4"
Plasma Cutting Systems Options
See “Recommended General Options” pgs. 149-171 for descriptions.
Pro-Cut ® 25
Expendable Parts
KP2063-1B1 Electrode, 5/pack
KP2062-1B1 VORTECH ™ Nozzle .028", 5/pack
KP2064-1 Shield Cup, 1/pack
General Options
K1615-1 PCT 20 Hand Torch, 15 ft
K2275-1 Welding Cart (80 cu ft. bottle capacity)
K520 Utility Cart (150 cu ft. bottle capacity)
K1625-1 Combination Circle Cutting Kit
K1628-1 Suction Pivot
K1626-1 Adapter Bushing
Pro-Cut ® 55
Expendable Parts
KP2063-1B1 Electrode, 5/pack
KP2062-2B1 VORTECH ™ Nozzle, .043", 5/pack
KP2062-4B1 VORTECH ™ Gouging Nozzle, .068", 5/pack
KP2064-1 Shield Cup, 1/pack
KP2065-1 Drag Cup, 1/pack
General Options
K1838-1 Undercarriage, Valet Style
K1625-1 Combination Circle Cutting Kit
K1628-1 Suction Pivot
K1626-1 Adapter Bushing
K1571-1 PCT 80 Hand Torch, 25 ft.
Pro-Cut ® 55, con’t.
General Options, con’t.
K1571-2 PCT 80 Hand Torch, 50 ft.
K1571-3 PCT 80 Machine Torch, 25 ft.
K1571-5 PCT 80 Robotic Torch, 25 ft.
Pro-Cut ® 80
Expendable Parts
KP2063-1B1 Electrode, 5/pack
KP2062-2B1 VORTECH ™ Nozzle, .043", 5/pack
KP2062-3B1 VORTECH ™ Nozzle, .053", 5/pack
KP2062-5B1 VORTECH ™ Gouging Nozzle, .082", 5/pack
KP2064-1 Shield Cup, 1/pack
KP2065-1 Drag Cup, 1/pack
General Options
K1838-1 Undercarriage, Valet Style
K1764-1 Inverter and Wire Feeder Cart
K1625-1 Combination Circle Cutting Kit
K1628-1 Suction Pivot
K1626-1 Adapter Bushing
K1571-1 PCT 80 Hand Torch, 25 ft.
K1571-2 PCT 80 Hand Torch, 50 ft.
K1571-3 PCT 80 Machine Torch, 25 ft.
K1571-5 PCT 80 Robotic Torch, 25 ft.
