The NEW Invertec ® V155-S offers much more than you would expect from a welder
this size. Weighing in at just under 15 lbs. (6.8 kg) the Invertec ® V155-S is no
lightweight contender. It packs the full punch of a heavyweight pro-
fessional that you can take to the most demanding job sites. It
features 120/230V auto reconnect operation and can operate
from a portable generator. It can also plug into a 200 ft. (61 m)
230V extension cord so you can weld just about anywhere.
Portable. Professional. Rugged. Affordable.
• Two stick modes, SOFT and CRISP, provide the right arc
characteristics for different types of electrodes.
• Fan-As-Needed ™ (F.A.N. ™ ) reduces noise and dust
inside the machine.
• Auto-Adaptive Arc Force ™ minimizes electrode
sticking in the puddle without compromising
arc stability or increased spatter.
• Automatic Hot-Start ™ boosts the current during
starting to make striking an arc easier.
• Touch Start TIG ® mode – it’s like getting a
TIG welder for free!
• Three-year warranty on parts and labor.
Processes
• Stick
• DC TIG
Output Input
Base Unit Includes
• Invertec
® V155-S (K2605-1).
• Stick electrode holder, cable and
Twist-Mate ™ plug.
• Work cable and clamp with
Twist-Mate ™ plug.
• Fully adjustable shoulder strap.
• 120/230V input cord, 6.6 ft. (2 m)
with a 120V 15 Amp plug.
• Extra 120V 20 Amp plug.
Key Options
• K2275-1 Welding Cart
• K852-25 Twist-Mate
™ Cable
Plug Kit
• TIG Ready-Pak ® (K2606-1)
( see TIG Section for details).
• More options at end of section
Literature
E2.141
DC 1
PHASE
60
50
Hz
CC
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output (1) Output Range inches (mm) lbs.(kg)
Invertec ® K2605-1 120V/1/50/60 75A/23.0V/100% Stick 24.0A 5-155 Amps DC 11.3 x 6.2 x 15.4 14.7
V155-S and 100A/24.0V/30% Stick 33.8A Max. OCV: 75V (288 x 158 x 392) (6.7)
K2606-1 105A/14.2V/100% TIG 21.5A
130A/15.2V/30% TIG 28.8A
230V/1/50/60 100A/24.0V/100% Stick 21.0A
145A/25.8V/30% Stick 31.0A
100A/14.0V/100% TIG 14.1A
155A/16.2V/30% TIG 22.8A (1) Input amps on 60 Hz input.
8
Shown:

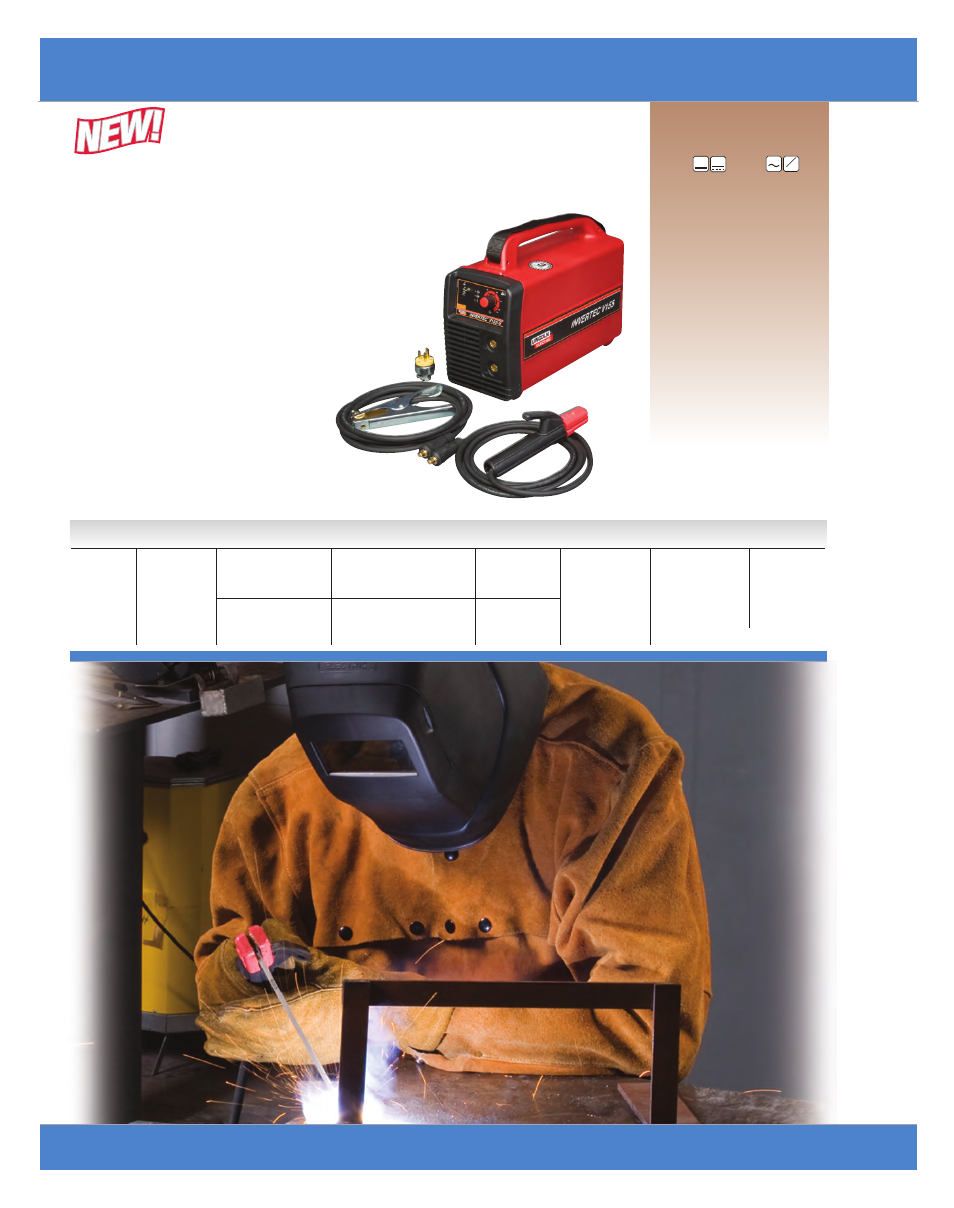

K2605-1 Base Unit
with Stick Accessories
