www.lincolnelectric.com/wire-feeders
Semiautomatic Wire Feeders
Power Feed ™ 10M
The Power Feed ™ 10M single or dual industrial wire feeders are recommended for multi-process
wire welding in the automotive manufacturing, pressure vessels/heavy plate, or job shop fabrica-
tion industries, particularly when code quality work is required.
Single and Dual Boom Wire Feeders
LF-72
Designed for MIG and cored wire welding in job shop and manufacturing environments,
the rugged LF-72 is built to deliver reliable performance day after day.
2-Roll Heavy Duty Industrial Feeder
Product Product Input Output Capacity Wire Feed Speed Range Wire Size Range H x W x D Net Weight
Name Number Power Current/Duty Cycle ipm (m/min) in. (mm) in. (mm) lbs.(kg)
Power Feed ™ 10M K2314-1 40 VDC 600A/60% High Speed: High Speed: Control: 13.0 x 8.5 x 4.0 8.5
Single Boom Model 500A/100% 75-1200 (2.0-30.5) Solid: .025-1/16 (0.6-1.6) (330 x 215 x 105) (3.8)
Low Speed: Cored: .035-5/64 (0.9-2.0) Wire Drive: 7.6 x 12.9 x 13.7 30
50-800 (1.27-20.3) Low Speed: (195 x 325 x 345) (13.6)
Power Feed ™ 10M K2316-1 Solid: .025-3/32 (0.6-2.4) Control: 13.0 x 8.5 x 4.0 8.5
Dual Boom Model Cored: .035-.120 (0.9-3.0) (330 x 215 x 105) (3.8)
Wire Drive: 9.0 x 19.0 x 15.5 50
(228 x 483 x 394) (22.7)
60
50
Hz
24-42
VAC

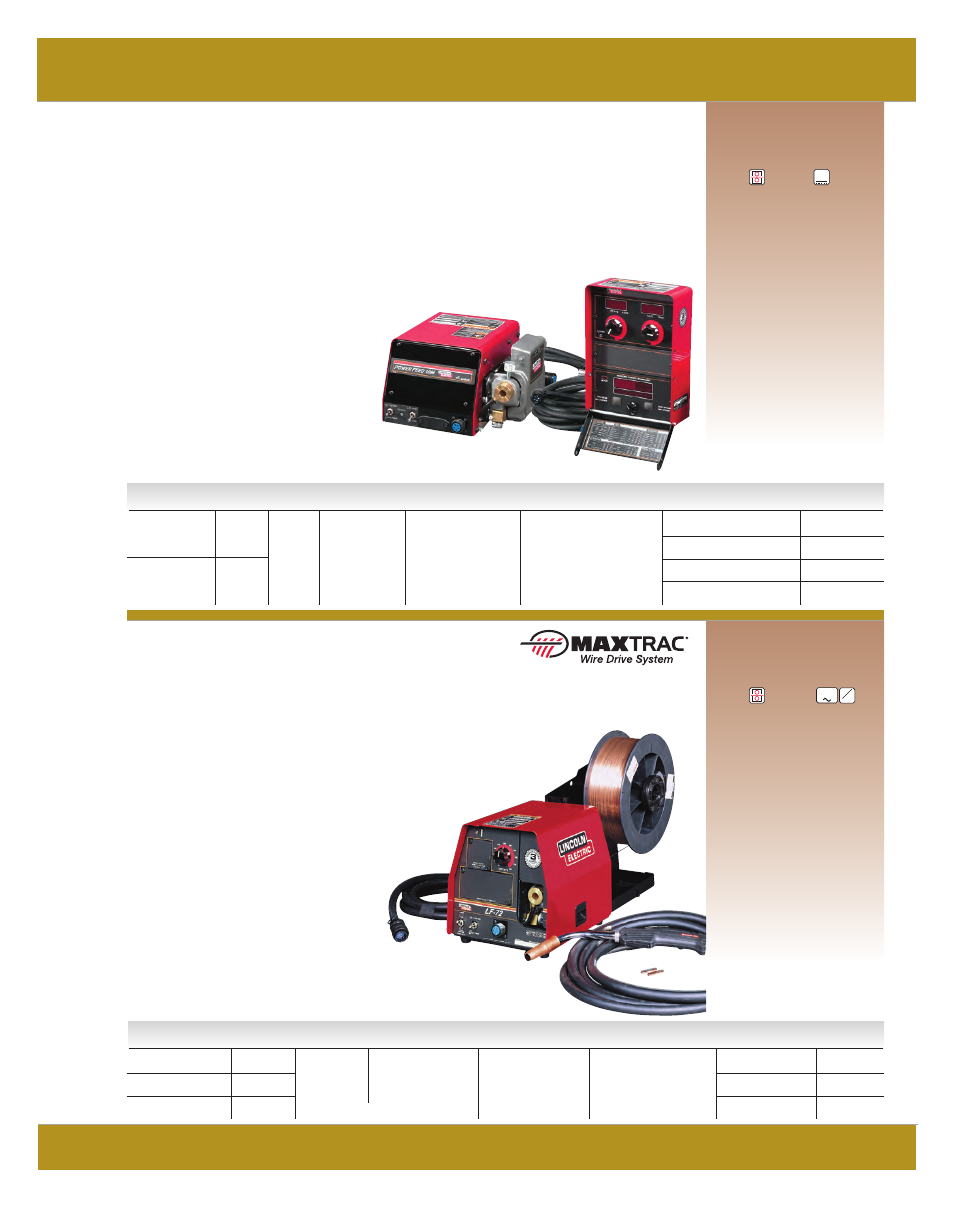

Power Feed ™ 10M Single
Boom Model shown.
• Patented MAXTRAC ® heavy-duty cast aluminum wire drive system
provides reliable feeding and durability.
• Brass-to-brass gun connections for better electrical
conductivity that results in better arc performance.
• Totally tool-less drive rolls and wire guide installation.
Two gear-driven wire drive rolls slide on and off easily!
• Calibrated wire feed speed dial for precise
and accurate settings.
• In addition to great mild steel performance,
these feeders deliver positive arc starting
and feeding with stainless steel, aluminum
and flux-cored wires!
• Control cable connector with a Spin-Nut ™
makes connecting the control cable a
simple twist-of-the-wrist.
• Three-year warranty on parts and labor.
Processes • Flux-Cored
• MIG • Stick
• Pulsed
• TIG
• STT ® • Gouging
Output Input
Dual Boom Model Includes
• MSP4 Panel
• Dual Procedure/Memory Panel
• Gun Trigger Cable
• ArcLink
® /Linc-Net ™ Control
Cables, 8 ft. (2.4 m) & 25 ft. (7.6 m)
• Hardware Kit (high speed pinion
gear, mounting hardware)
• Power Wave ® Utilities CD-ROM
with Weld Manager ™
Key Options
• Magnum Gun
& Cable Assemblies
(See publication E12.10)
• K1733-1 Wire Straightner
• K2593-100 Coaxial Weld Power
#1 Cable, 100 ft.
• KP1505-030S Drive Roll Kit –
.023-.030" (0.6-0.8 mm) Solid Wire
Literature
E8.267
Shown:
LF-72 Bench Model, Standard Duty
(shown with optional wire.)
Processes
• MIG
• Pulsed
• Flux-Cored
Output Input
Base Model (K2327-4) Includes
• .035/.045" Drive Rolls and Guide
Required Options
Weld Power Cable
Key Options
• K2330-1 Postflow and Burnback
Timer Kit
• K2329-1 Remote Voltage Control
Kit
• K1546-1 Incoming Bushing for
Lincoln Conduit
• More options at end of section
Literature
E8.11
Product Product Input Output Capacity Wire Feed Speed Range Wire Size Range H x W x D Net Weight
Name Number Power Current /Duty Cycle ipm (m/min) in (mm) in. (mm) lbs.(kg)
LF-72 Base Model K2327-4 24-42 VAC 500 Amps @ 60% 50-800 Solid: .023-1/16 (0.6-1.6) 11.1 x 10.2 x 12.9 27
(no gun, no cable) 50/60 Hz 400 Amps @ 100% (1.3-20.3) Cored: .030-5/64 (0.8-2.0) (282 x 259 x 328) (12)
LF-72 Bench Model, K2327-2 9 Amps 12.6 x 10.9 x 22.5 53
Standard Duty (1) (320 x 277 x 574) (24)
LF-72 Bench Model, K2327-3 15.3 x 13.0 x 27.7 68
Heavy Duty (389 x 330 x 704) (31)
65
(1) 44 lbs. (19.9 kg) spool, max.
40
VDC
• Waveform Control Technology ® featuring patented processes like Pulse-On-Pulse ® , for
a TIG-like bead appearance, and Power Mode ® , for a stable arc at low current levels.
• ArcLink ® capability for networking welding equipment.
• Pulsed MIG process—great for low spatter,
low heat input and out-of-position applications—
makes virtually any operator a better welder!
• Easy-to-understand user interface panel
with large numeric displays so it's easy
to set weld parameters.
• Weld Manager ® software, for wireless
remote access to system configuration,
allowing you to manage one or many
welding systems from the palm of your hand.
• Three-year warranty on parts and labor.
