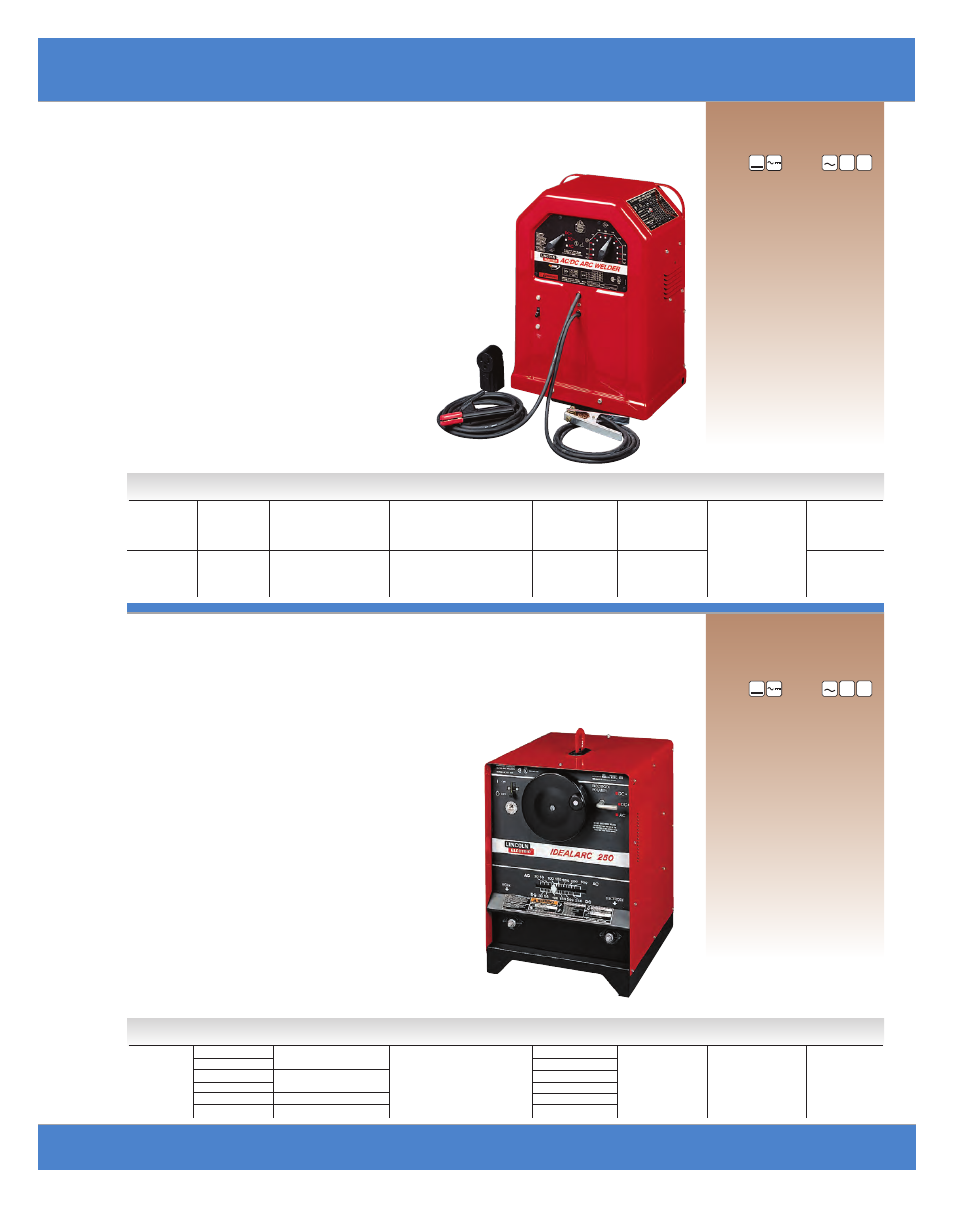

AC/DC 225/125
Select DC polarity for extremely stable arc action or out-of-position
welding with Lincoln
® Fleetweld ® 5P+. Choose AC polarity for
welding on heavier plate, greater deposition or faster travel
speeds with Lincoln
® Fleetweld ® 35. Great choice for stick
welding on mild steel, low alloy and stainless steels as
well as cast iron and hardfacing for maintenance, repair
and light fabrication projects.
Tackle More Tasks with AC/DC
• 40-225 amps AC and 30-125 amps DC stepped output control is
enough for 3/16" (4.8 mm) mild steel general purpose electrode
diameters and select 5/32" (4.0 mm) diameter electrodes.
• Weld 16 gauge sheet metal to heavy plate on mild steel,
low alloy stainless, cast iron and hardfacing applications.
• Includes integrated input power cable with plug and
receptacle for wall-mounting.
• Three-year warranty on parts and labor.
Idealarc
®
250
The Idealarc ® 250 delivers up to 300 amps AC (250 amps DC) for
stick welding in vocational education, industrial production,
maintenance and repair or farm shop environments.
Basic Industrial Stick Welding
• Plenty of output—300 amps AC and 250 amps DC is enough
for up to 1/4" (6.4 mm) diameter of some stick electrode types.
• Run every type of stick electrode, including cellulosic and
low hydrogen, and those for stainless steel, hardfacing
and cast iron applications.
• Easy to use full range continous control provides precise
command of heat input in the weld.
• Stackable case design can be stacked up to three high
to save valuable floor space.
• Three-year warranty on parts and labor.
Processes
• Stick
• TIG
• Gouging
Output Input
Key Options
• K1894-1 Power Factor
Capacitor Kit (60 Hz)
• K866 Undercarriage
• K704 Accessory Kit, 400 Amp
• K930-2 TIG Module
•
More options at end of section
Literature
E2.70
Processes
• Stick
• TIG
Output Input
Unit Includes
• Insulated electrode holder and
cable
• Heavy duty work clamp and cable
• Helpful Welder’s Guide
• Input Cable with integrated plug
and receptacle
Key Options
• K761 Wheel Kit
•
More options at end of section
Literature
E2.60
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg)
Idealarc ® 250 K1053-7 208/230/460/1/60 AC: 250A/30V/30% 95/86/43A 35-300 Amps AC 27 x 19 x 21.5 350
K1053-9 (w/PFC) DC: 250A/30V/30% 75/68/34A Max. OCV: 72V (686 x 483 x 546) (159)
K1053-8 230/460/575/1/60 86/43/34A 40-250 Amps DC
K1053-10 (w/PFC) 68/34/27A Max. OVC: 70V
K1054-3 380/415/500/1/50 50/46/38A
K1054-4 220/380/440/1/50 86/50/43A
Product Product Input Power Rated Output Input Current @ H x W x D Net Weight
Name Number Voltage/Phase/Hertz Current /Voltage/Duty Cycle Rated Output Output Range inches (mm) lbs.(kg)
AC/DC K1297 230/1/60 AC: 225A/25V/20% AC: 50A 40-225 Amps AC 124
225/125 DC: 125A/25V/20% DC: 36A Max. OCV: 79V 24 x 17.25 x 12 (56.3)
30-125 Amps DC (610 x 438 x 305)
Max. OCV: 73V
AC/DC K1299 220/1/50 AC: 225A/25V/15% AC: 55A 50-250 Amps AC 123
225/125 DC: 125A/25V/15% DC: 41A Max. OCV: 76V (55.8)
35-135 Amps DC
Max. OCV: 69V
AC
DC
