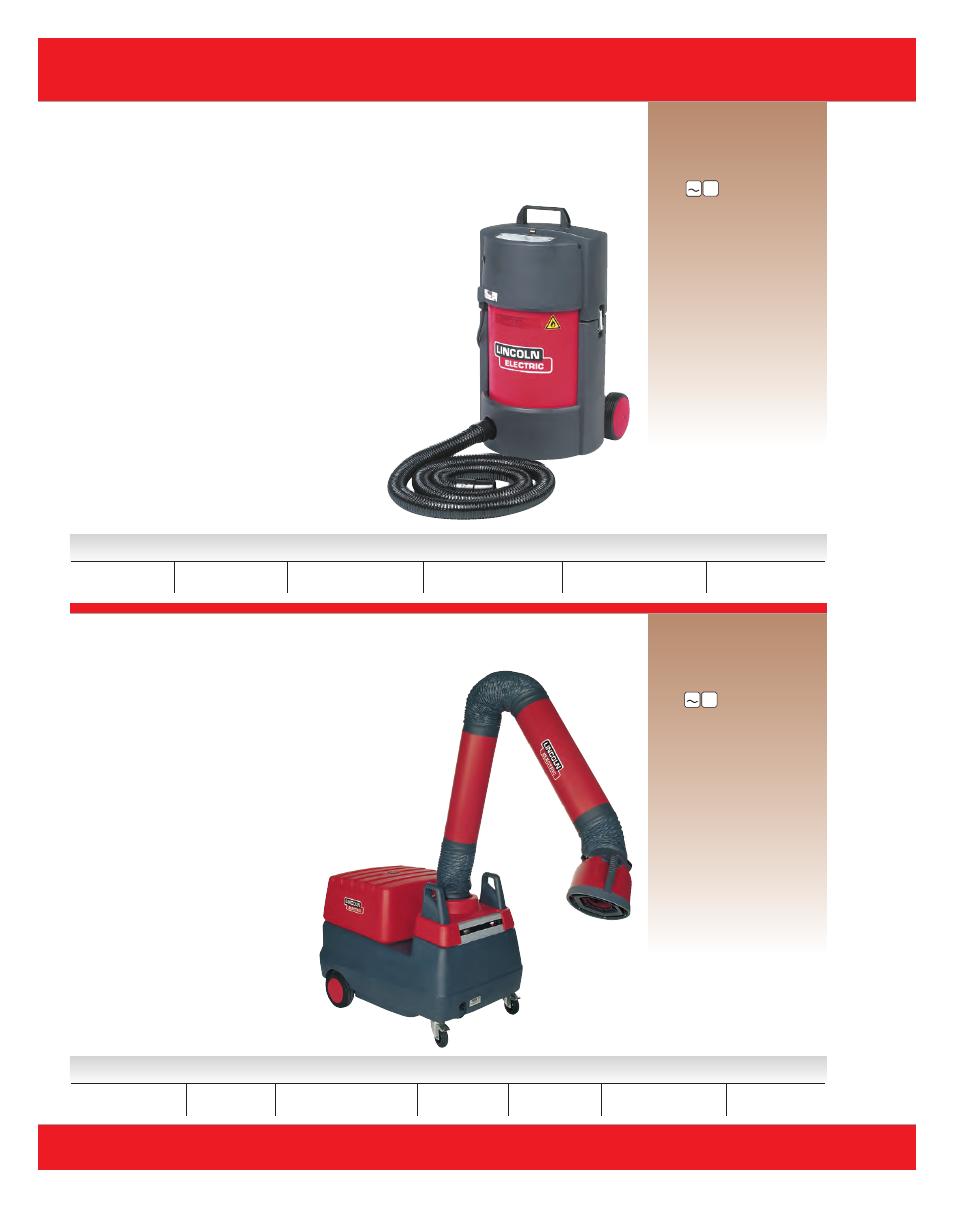

Miniflex
™
Lincoln Electric’s ® Miniflex ™ is a portable, high vacuum, low volume system
specifically designed for the removal and filtration of welding fumes. With
light duty welding process, the Miniflex
™ excels in performance, design
and ease of handling. It can be used in confined spaces and other
locations that are not accessible with other welding fume extractors.
Portable Welding Fume Extractor
Product Product Input Power H x W Net Weight
Name Number Voltage/Phase/Hertz Input Current inches (mm) lbs.(kg)
Miniflex ™ K2376-1 115V/1/60 15A 28-3/4 x 16-1/2 36
(730 x 420) (16)
Processes
• Stick (light duty)
• TIG
• MIG
• Flux-Cored (light duty)
Input
Unit Includes
• 9 ft. (3 m) cord (AWG 14) with
15 amp plug (NEMA 5-15).
• 8 ft. (2.5 m) length x 1-3/4 in.
(45 mm) O.D. extraction hose.
• LongLife ® -H main filter.
• HEPA filter.
• 2 spare sets of carbon brushes
and seals for motors.
Key Options
• K2387-8 16 ft. Extraction Hose
• K2387-9 8 ft. Extraction Hose
• K2389-5 EN20 Extraction Nozzle
• K2389-6 EN40 Extraction Nozzle
•
More options at end of section
Literature
E13.11
• Well thought-out, user-friendly design.
• Four-stage filtration system with a 99.7% efficiency.
• LongLife-H ™ filter technique separates and retains small
particles for maximum efficiency.
• Final filter: HEPA H12 Class.
• Two powerful motors: 1.2 hp each.
• Multiple extraction capacity settings:
- Low: 94 CFM.
- High: 135 CFM.
• Cable sensor allows automatic start/stop capability.
• Low noise level: 70dB(A) with nozzle extraction installed.
• Standard wheels and handle make it easy to roll the
Miniflex ™ around the shop.
• One-year warranty on unit. (30 day warranty on all
consumables such as filters, hoses, hose adapters.)
Mobiflex
™
200-M
Low vacuum/high volume disposable filtration system designed
for medium duty extraction of welding fumes. Ideal for facilities
that require welding fume extraction in multiple locations
including maintenance departments, general fabrication
and job shops, and industrial environments.
Mobile Welding Fume Extractor
Product Product Filter Type/ Input Power H x W x D Net Weight
Name Number Filter Size Voltage/Phase/Hertz Input Current mm (in.) kg (lbs.)
Mobiflex ™ 200-M K1653-2 Pretreated Cellulose 115/1/60 12A 900 x 810 x 1210 111
Base Unit 50 m 2 (538 ft 2 ) (36 x 32 x 48) (243)
Processes
• Stick
• TIG
• MIG
• Flux-Cored
Input
Unit Includes
• Filter
• Plastic housing
• 8" (203 mm) Flexible Hose
• 6 m (19 ft.) 115 VAC Input Power
Cord
Required Options
• Extraction Arm
Key Options
•
More options at end of section
Literature
E13.12
• Generous 735 CFM airflow with LFA 3.1/4.1
extraction arm.
• Filter efficiency up to 99.8%.
• 50 m 2 (538 ft 2 ) LongLife ® filter with ExtraCoat ®
pretreatment.
• Filter status indicator gauges amount of
particulate in filter cartridge, indicating
system maintenance and filter replacement.
• Internal aluminum mesh spark arrestor.
• One-year warranty on equipment. (30 day
warranty on filter cartridge.)
1
PHASE
60
Hz
1
PHASE
60
Hz
Shown:
Mobiflex ™ 200-M with
required Extraction Arm
www.lincolnelectric.com/fume-extraction
