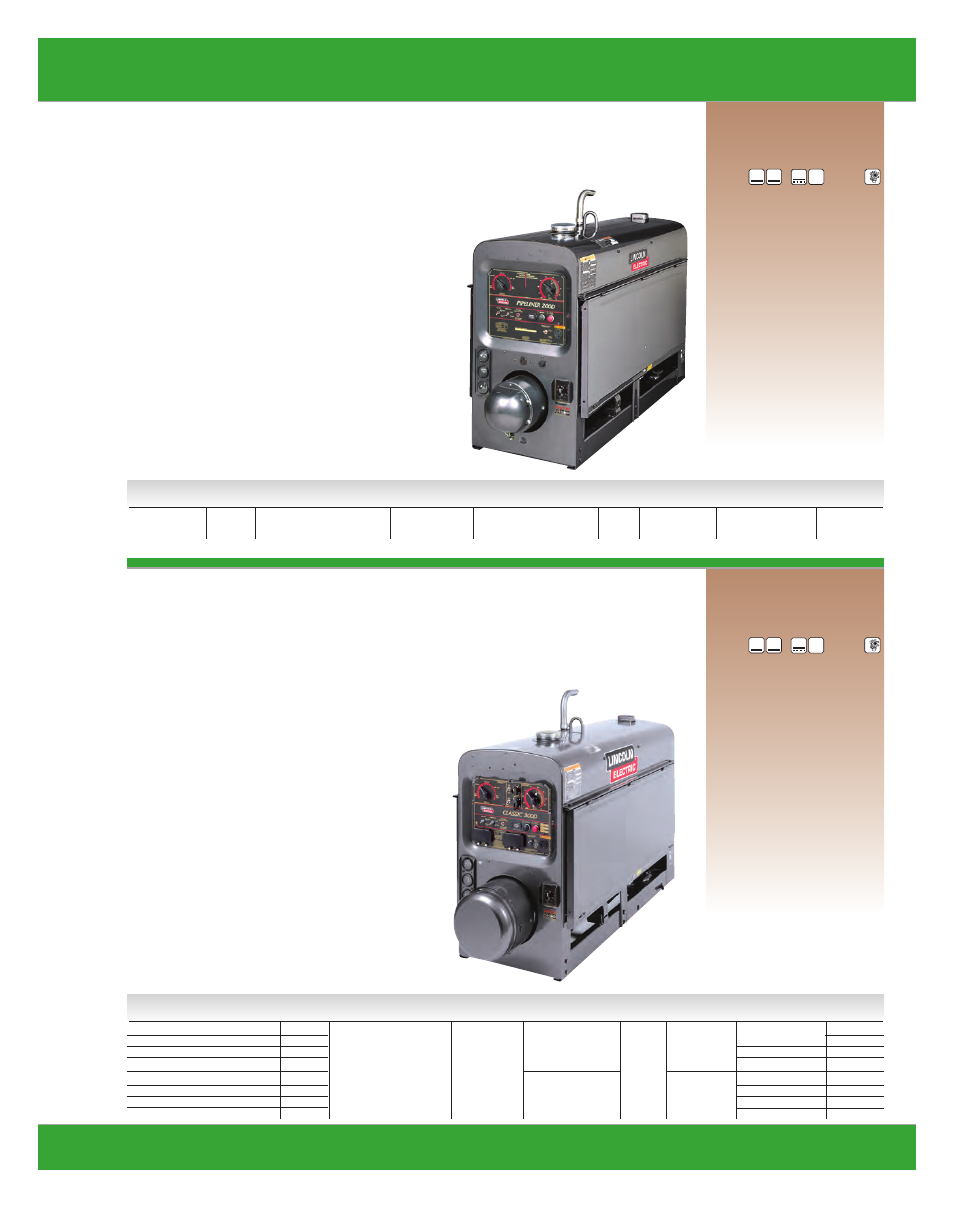

Pipeliner
®
200D
The Pipeliner ® 200D is a direct descendant of Lincoln’s ® respected
200 amp pure DC generator welders for the cross-country pipeline
welding industry. It features a DC exciter and runs slower
than the common 1800 RPM, as requested by the most
discriminating cross-country pipeline operators.
Rich Heritage – 200 Amp DC Diesel Engine
• All copper windings enhance arc stability.
• 200 amps DC @ 60% duty cycle. Weld up to 7/32"
(5.6 mm) low hydrogen electrode. Gouge with up
to 5/32" (4.0 mm) carbons.
• Five overlapping current ranges with fine-tuning
within each range for precise control.
• Custom Arc ™ 150 RPM high idle (OCV) adjustment
range—enhanced fine tuning for pipe.
• Local/Remote switch and receptacle are factory installed.
• Three-year warranty on welder. (Engine is warranted
separately by the manufacturer.)
Processes
• Stick
• Flux-Cored
(1)
• Gouging
Output (1) Input
Key Options
• K2636-1 Medium Two-Wheel
Road Trailer with Duo-Hitch ™ :
Ball/Eye Hitch Combo
• K704 Accessory Kit, 400 Amp
• K924-5 Remote Control Kit, 100 ft.
(for use w/o Wire Feed Module)
• K623-1 Wire Feed Module
•
More options at end of section
Literature
E6.132
CV CC DC
kW
1.75 D
Product Product Rated Output Type of No. of HP & Speed H x W x D Net Weight
Name Number Current /Voltage/Duty Cycle Output Range Engine Cylinders (rpm) inches (mm) lbs.(kg)
Pipeliner ® 200D K6090-10 200A/40V/60% 40-300A DC Kubota ® V2203M Diesel 4 27.8 @ 1600 45.5 x 24.0 x 68.0 1,302
1,750 watts DC (1156 x 610 x 1727) (590)
Auxiliary Power
(1) With Wire Feed Module. Rated at 200 amps, 35 volts at 60% duty cycle. 250 amps, 30 volts at 35% duty cycle.
Classic
®
300D
The Classic ® 300D, with proven, rugged construction, is recommended for pipeline,
construction and maintenance welding. It features Lincoln’s ® pure DC generator
design for outstanding performance on pipe. Choose Perkins ® or Kubota ®
4-cylinder, water-cooled industrial diesel engines and add CV wire
welding with the optional Wire Feed Module.
Excellent for Pipeline, Construction and Maintenance
• 300 amps @ 60% duty cycle. Welds with up to 7/32"
(5.6 mm) Fleetweld ® 5P+ cellulosic and Excalibur ®
low hydrogen electrode.
• 3,000 watts of AC auxiliary power.
• All copper windings enhance arc stability for an
extremely smooth arc.
• Five current ranges with overlap and fine-tuning
within each range.
• Local/Remote switch and receptacle are factory
installed.
• Three-year warranty on welder. (Engine is
warranted separately by the manufacturer.)
(1) With Wire Feed Module. Rated at 300 amps, 35 volts at 60% duty cycle.
Product Product Rated Output Type of No. of HP & Speed H x W x D Net Weight
Name Number Current /Voltage/Duty Cycle Output Range Engine Cylinders (rpm) inches (mm) lbs.(kg)
Classic ® 300D K1643-3 250A/30V/100% 40-350A DC Perkins ® 404C-22 Diesel 4 32.7 @ 1800 45.5 x 24.0 x 65.0 1354 (614)
Classic ® 300D w/Wire Feed Module K1643-4 300A/32V/60% 3000 watts (1156 x 610 x 1651) 1389 (630)
Classic ® 300D One-Pak ® K1864-3 AC Power — —
Classic ® 300D Ready-Pak ® K2242-3 — —
Classic ® 300D K1643-5 Kubota ® V2203M Diesel 32.5 @ 1800 45.5 x 24.0 x 66.5 1320 (599)
Classic ® 300D w/Wire Feed Module K1643-6 (1156 x 610 x 1727) 1355 (615)
Classic ® 300D One-Pak ® K2386-3 — —
Classic ® 300D Ready-Pak ® K2387-3 — —
Processes
• Stick
• Flux-Cored (1)
• TIG • Gouging
• MIG (1)
Output (1) Input
Ready-Pak ® Package Includes
• Classic 300D
• Road Trailer
& Combination
Ball/Eye Hitch
• Fender and Light Kit
• Cable Rack
• Cable Connectors (qty. 2)
• Electrode Cable 2/0, two 50 ft.
(15.3 m) lengths
• Electrode Cable 2/0, 10 ft. (3 m)
• Work Cable 2/0, 50 ft. (15.3 m)
• 300A Electrode Holder
• 300A Work Clamp
Key Options
• K2636-1 Medium Two-Wheel
Road Trailer with Duo-Hitch ™ :
Ball/Eye Hitch Combo
• K704 Accessory Kit, 400 Amp
• K924-5 Remote Control Kit, 100 ft.
(for use w/o Wire Feed Module)
• More options at end of section
Literature
E6.155
CV CC DC 3
