MC68HC(7)08KH12 — Rev. 1.1 Advance Information
Freescale Semiconductor 67
An internal reset clears the SIM counter (see 7.5 SIM Counter ), but an
external reset does not. Each of the resets sets a corresponding bit in
the reset status register (RSR).
(See 7.8 SIM Registers .)
7.4.1 External Pin Reset
The RST pin circuits include an internal pullup device. Pulling the
asynchronous RST pin low halts all processing. The PIN bit of the reset
status register (RSR) is set as long as RST is held low for a minimum of
67 CGMXCLK cycles, assuming that the POR was not the source of the
reset. See
Table 7-2 for details. Figure 7-4 shows the relative timing.

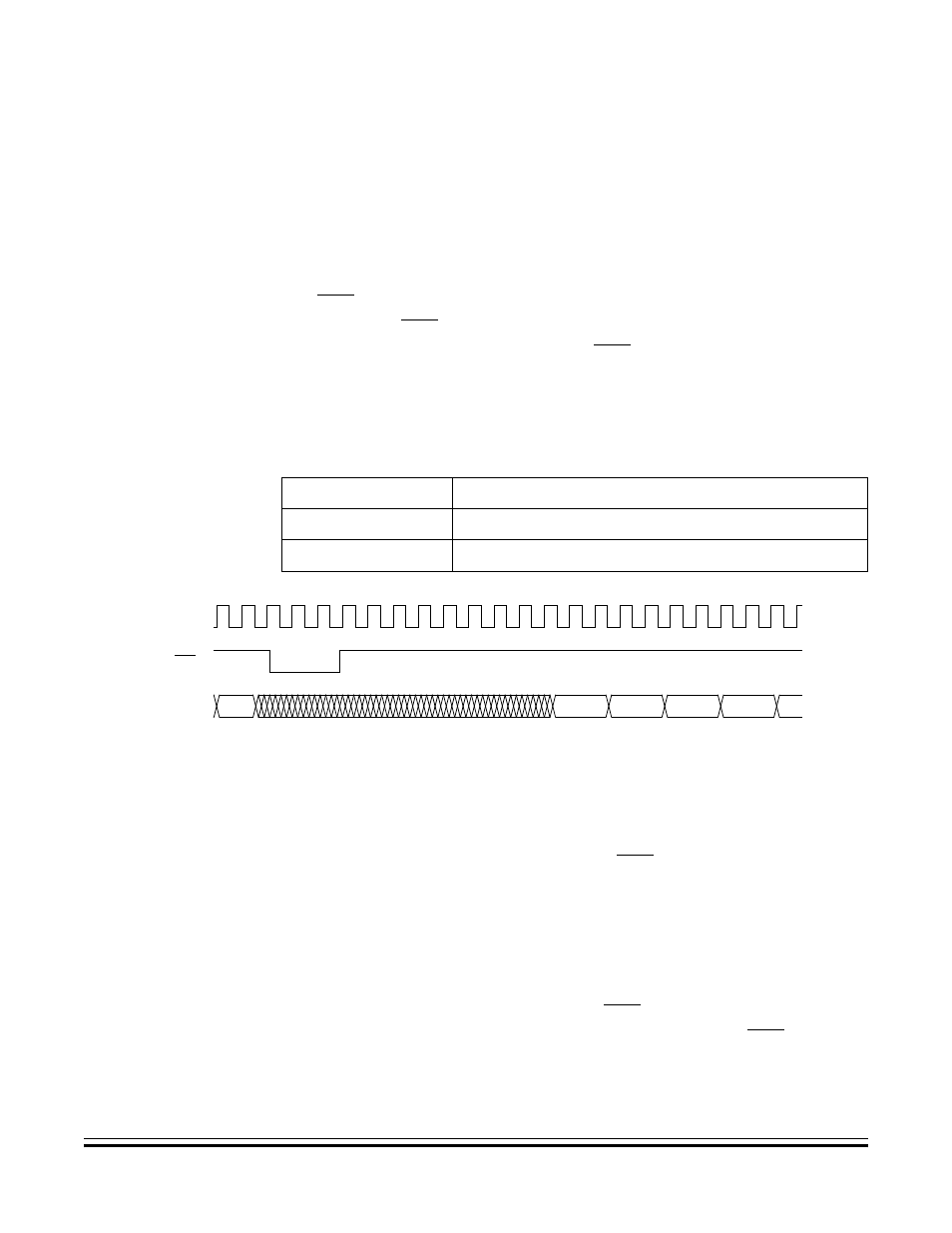

Figure 7-4. External Reset Timing
7.4.2 Active Resets from Internal Sources
All internal reset sources actively pull the RST pin low for 32 CGMXCLK
cycles to allow resetting of external peripherals. The internal reset signal
IRST continues to be asserted for an additional 32 cycles.
See Figure 7-
5 . An internal reset can be caused by an illegal address, illegal opcode,
COP timeout, or POR. (See Figure 7-6. Sources of Internal Reset .)
Note that for POR resets, the SIM cycles through 4096 CGMXCLK
cycles during which the SIM forces the RST pin low. The internal reset
signal then follows the sequence from the falling edge of RST shown in
Figure 7-5 .
Table 7-2. PIN Bit Set Timing
Reset Type Number of Cycles Required to Set PIN
POR 4163 (4096 + 64 + 3)
All others 67 (64 + 3)
RST
IAB PC VECT H VECT L
CGMOUT
