15.6 Port-F Keyboard Interrupt Block Diagram

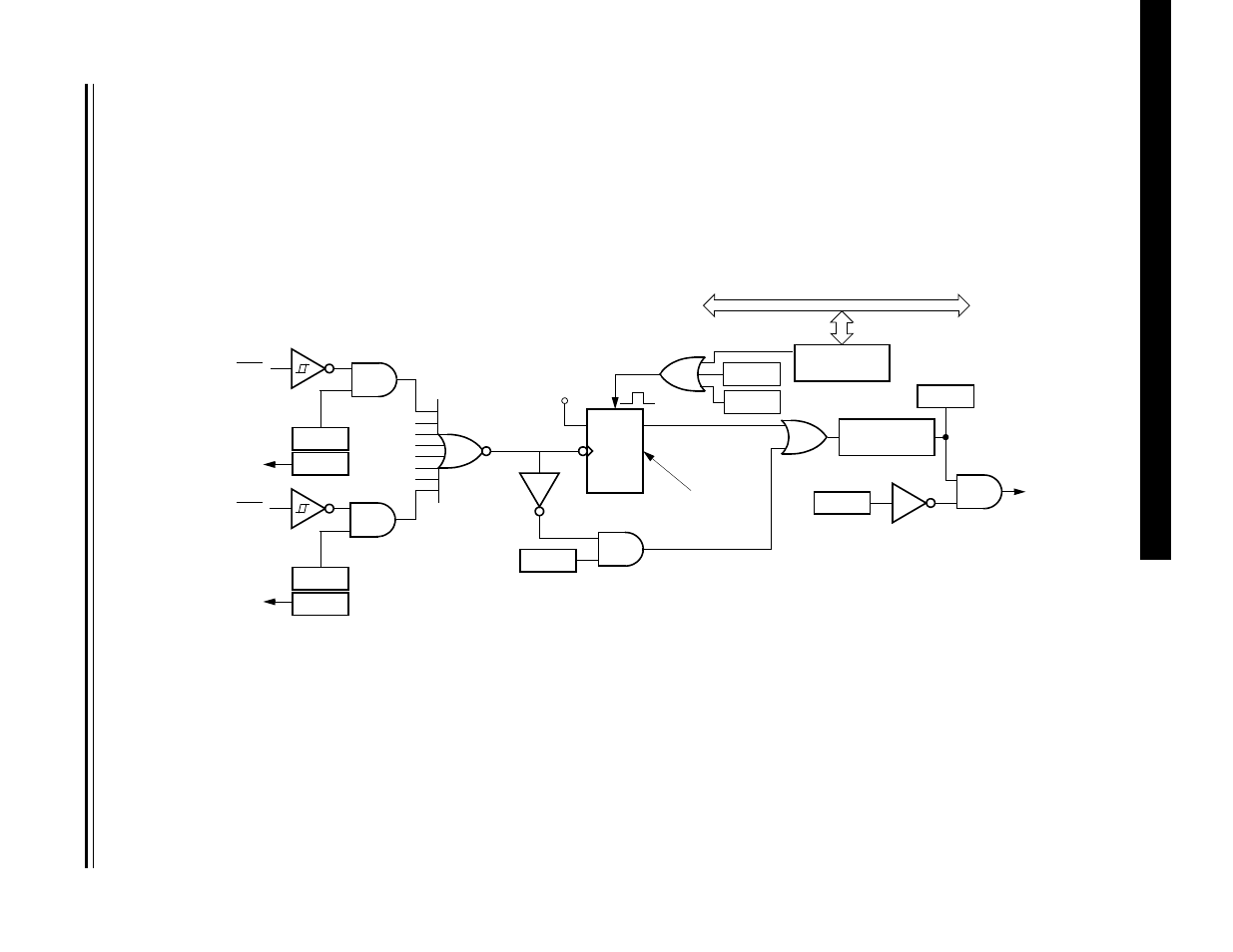

Figure 15-7. Port-F Keyboard Interrupt Block Diagram

KBFIE0

KBFIE7

.

.

.

D

Q

CK

CLR

V

DD

MODEF

IMASKF

KEYBOARD

INTERRUPT FF

VECTOR FETCH

DECODER

ACKF

INTERNAL BUS

RESET

KBF3

KBF0

SYNCHRONIZER

KEYFF

Port-F

Keyboard

Interrupt

Request

PFPE0

PFPE7

TO PULLUP ENABLE

TO PULLUP ENABLE
