12.3. Recommended Connection for Build-in PLL Loop Filter

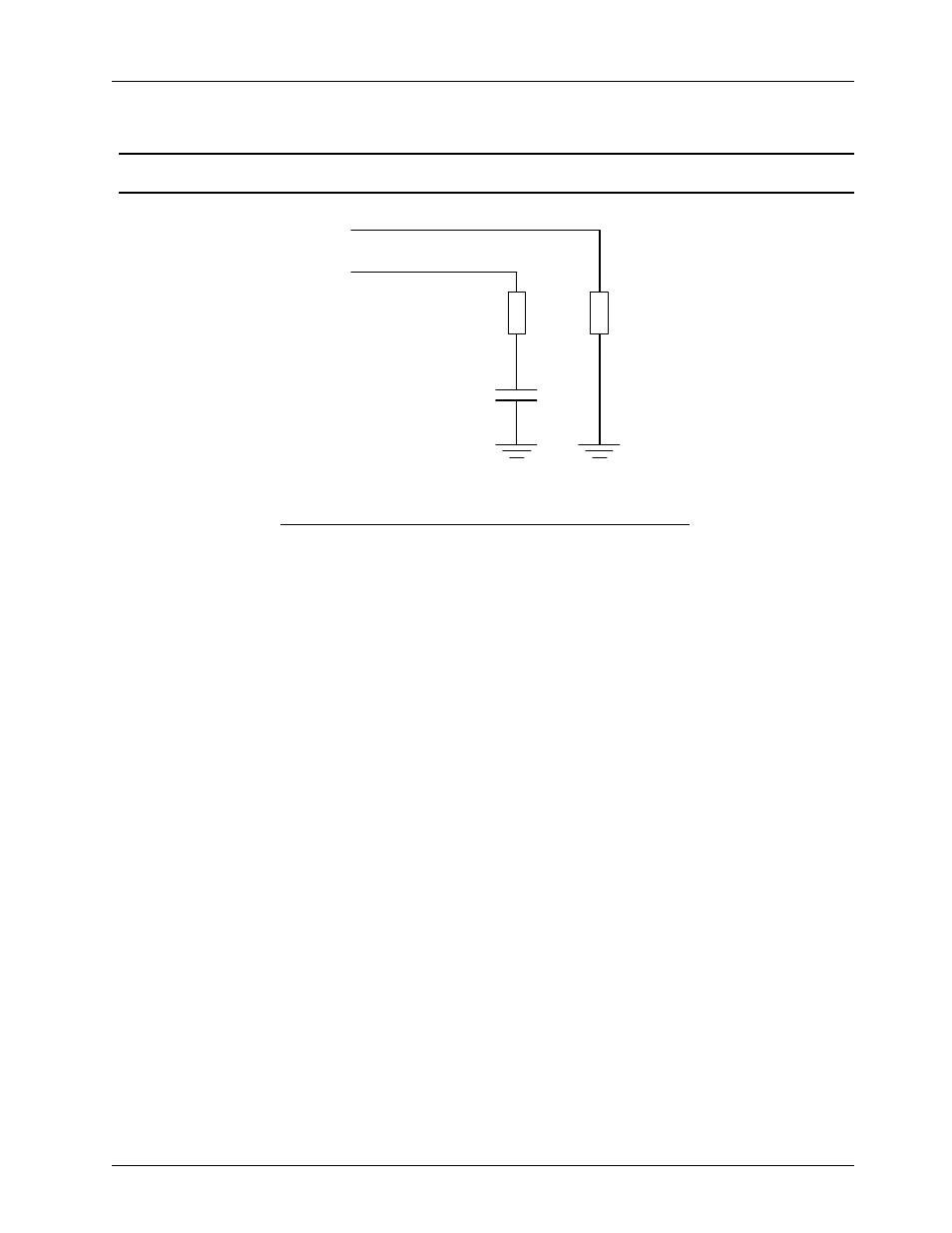

The example of recommended connection for build-in PLL loop filter is shown below.
FIL
RF
Figure 12.3 Recommended connection for build-in PLL loop filter
390 Ω ± 5%
3300pF
± 5%
5.1K Ω ± 5%
