96 operating manual, Hot-plug components, Ports and leds – FUJITSU PRIMERGY BX400 S1 User Manual
Page 96
96
Operating Manual
BX400
S1
Hot-plug components
©
c
o
gni
ta
s.
Ge
se
lls
ch
ft f
ür T
ec
hn
ik
-Do
ku
m
ent
at
io
n
m
b
H 20
12
P
fa
d:
C
:\P
rogr
am
m
e
\F
CT
\t
im
_ap
p\
tim
_l
oc
al
\w
ork
\W
A
LT
E
R
\O
B
J_
DO
K
U
-9
24
9-0
04
.fm
Ports and LEDs

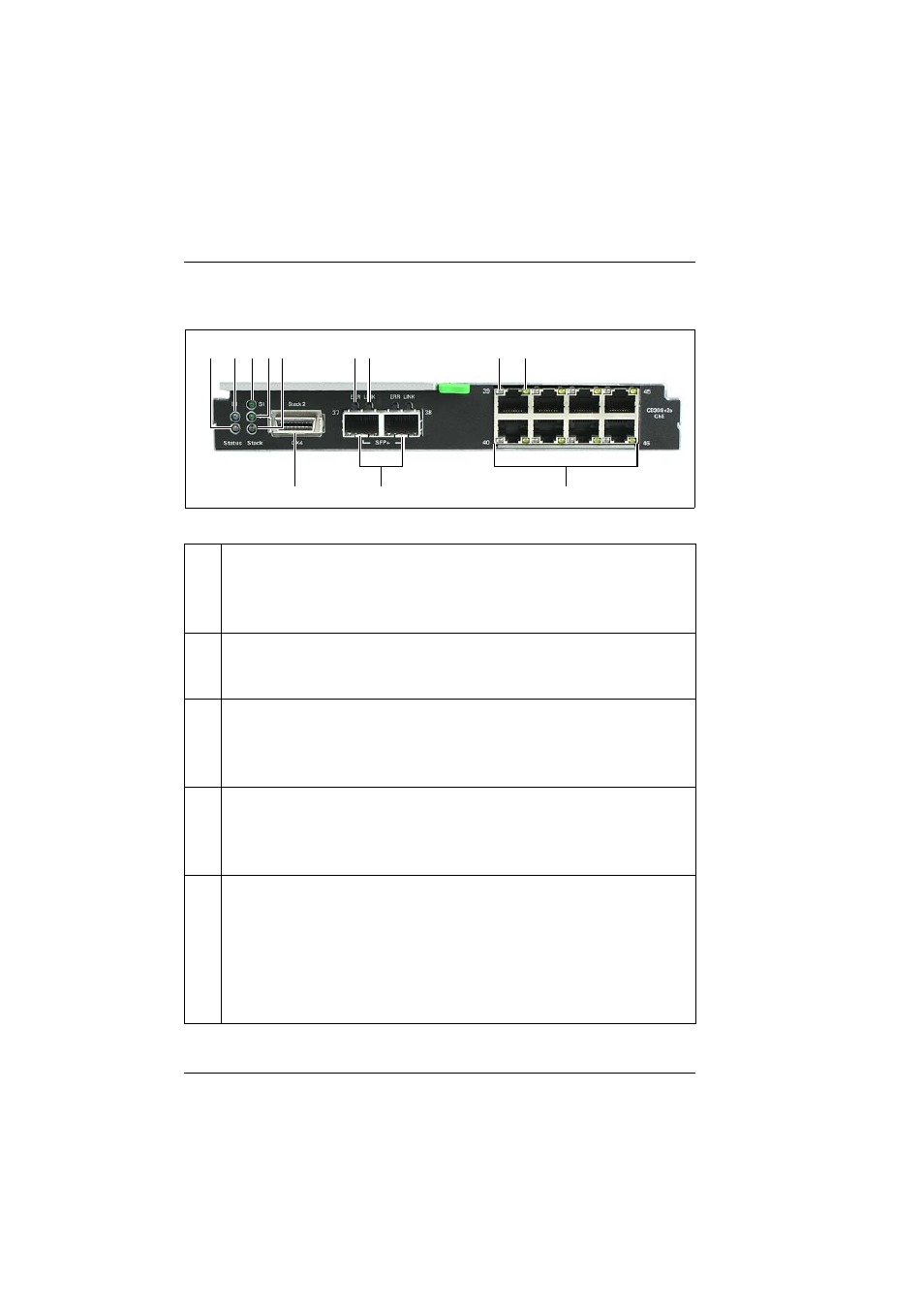

Figure 25: Connection Blade GbE Switch/IBP 36/12
1
Status indicator (green/orange)
Lights up green: Power is supplied to the connection blade
Flashes orange: Connection blade error
Dark:
Power is not supplied to the connection blade
2
ID indicator (blue)
Lit:
ID LED was activated via the management blade
Dark:
Normal operation
3
Stacking port 1 (internal) (green)
Lit:
Stacking port 1 is available
Flashes green:
Stacking port 1 is active
Dark:
Stacking port 1 is not available
4
Stacking port 2 (external) (green)
Lit:
Stacking port 2 is available
Flashes green:
Stacking port 2 is active
Dark:
Stacking port 2 is not available
5
Stacking (green/orange)
Lights up
yellow:
Connection blade is stack master
Flashes yellow:
Connection blade cannot perform role of master
Lights up green: Connection blade is stack slave
Flashes green:
Master selection process is active
Dark:
Connection blade does not belong to a stack
1
2 3 4 5
6 7
8
9
A
B
C
