Ports and LEDs

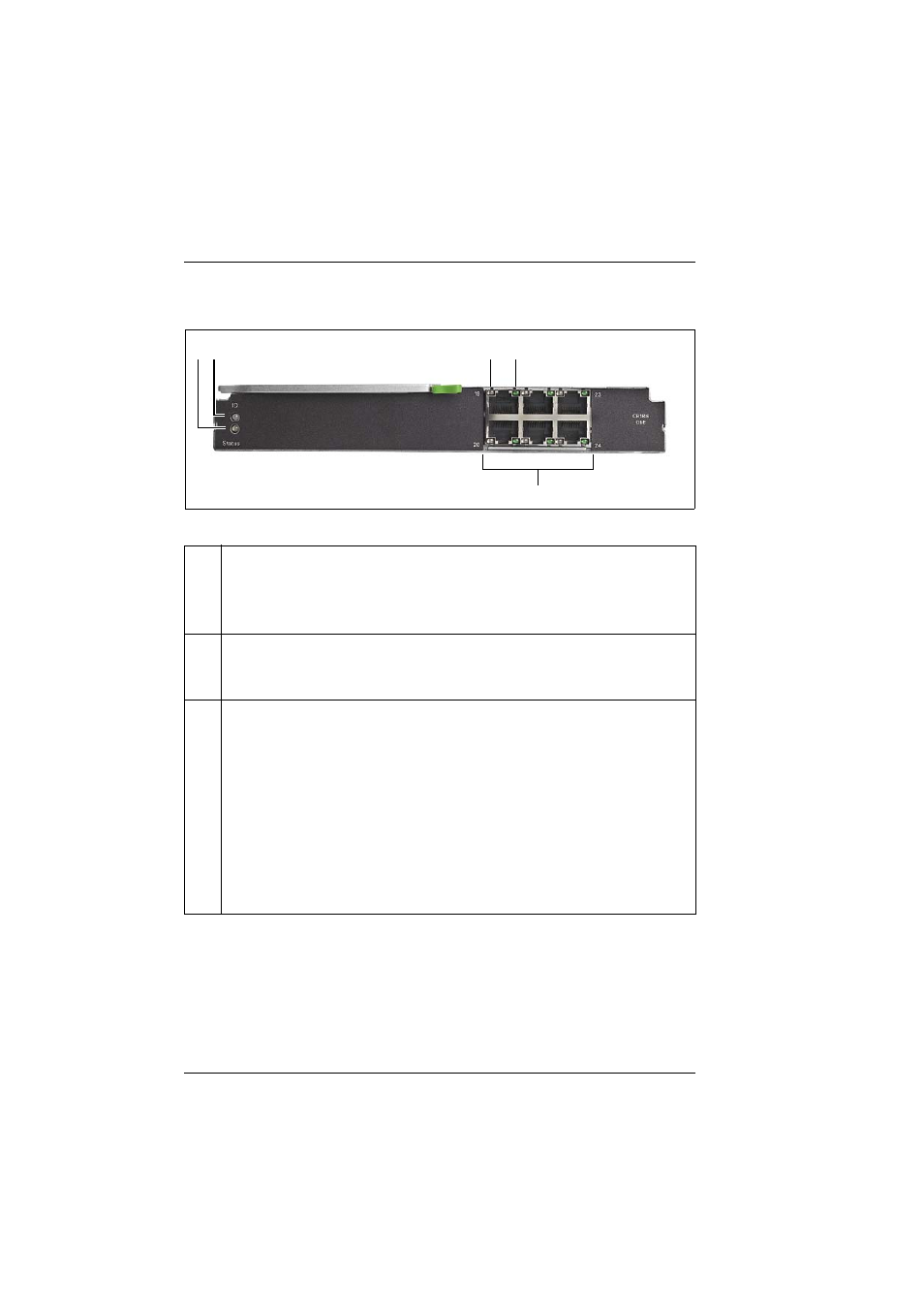

Figure 27: Connection Blade GbE Switch/IBP 18/6
1 Status indicator (green/orange)
Lights up green: Power is supplied to the connection blade
Flashes orange: Connection blade failure
Dark: Power is not supplied to the connection blade
2 ID indicator (blue)
Lit: ID LED was activated via the management blade
Dark: Normal operation
A 1-Gbit Ethernet ports (RJ45 with two integrated LAN status LEDs each)
3 LAN transfer rate (green/orange)
Lights up
orange: LAN transfer rate 1 Gbit/s
Lights up green: LAN transfer rate 100 Mbit/s
Dark: LAN transfer rate 10 Mbit/s
4 LAN connection indicator (green)
Lit: LAN connection available
Flashes: LAN connection active
Dark: LAN connection unavailable or deactivated
1 2 3 4
A
