BX400 S1 Operating Manual 93
Hot-plug components
8.2.1 Connection Blade GbE Switch/IBP 36/12 (SB11A)
The Connection Blade GbE Switch/IBP 36/12 can be used as a layer-2 switch
or an Intelligent Blade Panel (IBP). It provides the following connections:
– 36 internal 1-Gbit ports to the server blades
– 8 external 1-Gbit ports through RJ45 connections
– 4 external 1-Gbit ports through SFP modules for Ethernet ports via fiber-
optic or copper cable
This connection blade can be used in all connection blade slots, see figure
"Connection blade slots" on page 120 .
If the connection blade is installed in one of the slots CB 2, CB 3 or CB 4, the
server blades must have corresponding GbE mezzanine cards. For more
information, see the operating manuals for the relevant server blades.
Ports and LEDs

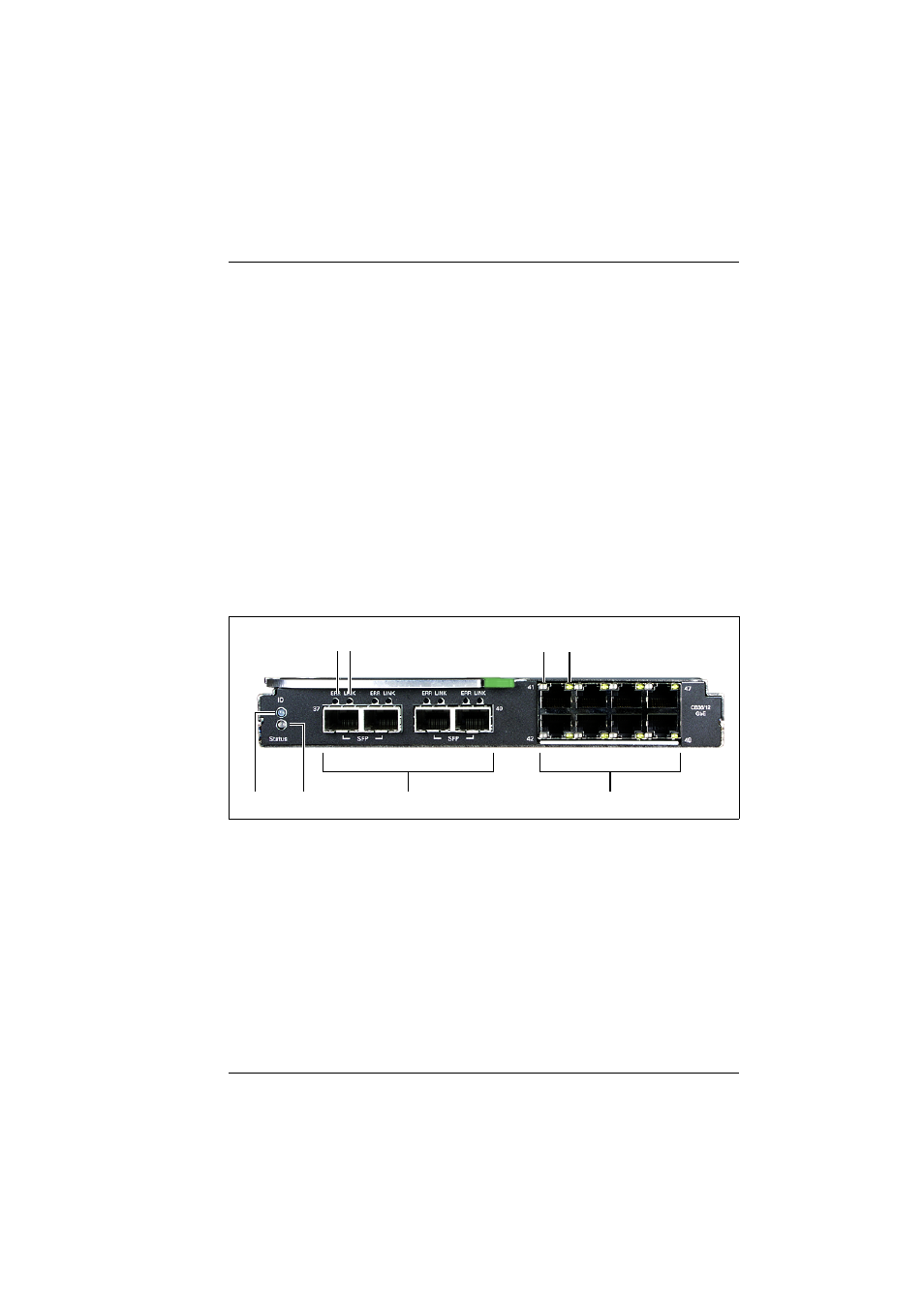

Figure 24: Connection Blade GbE Switch/IBP 36/12
1 2
3 4 5 6
A B
