52 Operating Manual BX400 S1
Installing the hardware
©
c
o gni
ta
s.
Ge
se
lls
ch
ft f
ür T
ec
hn
ik
-Do
ku
m
ent
at
io
n m
b H 20
12
P
fa
d:
C
:\P
rogr
am
m
e \F
CT
\t im
_ap
p\
tim
_l
oc
al
\w
ork
\W
A
LT
E
R
\O
B
J_
DO
K U
-9
24
5-0
04
.fm

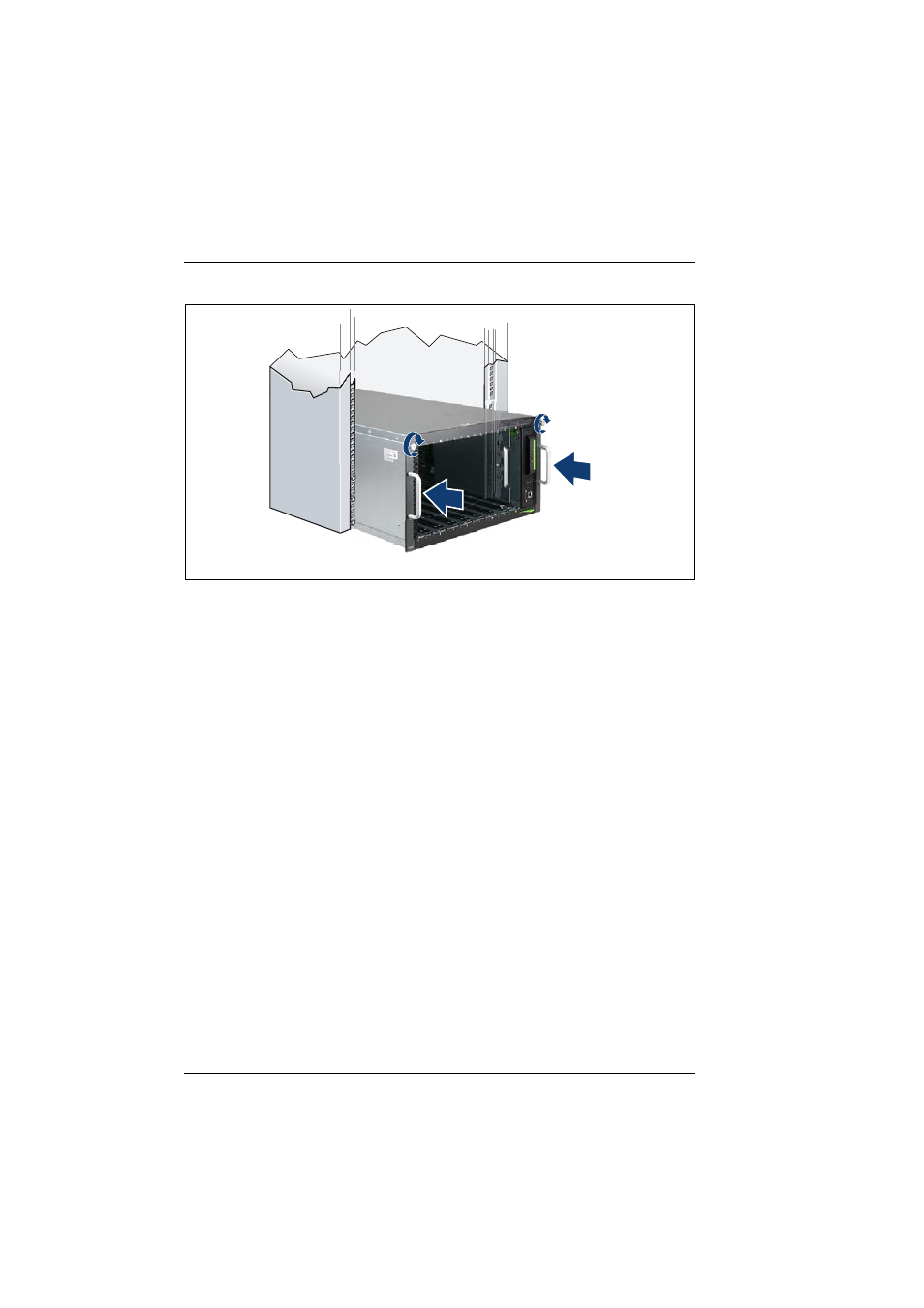

Figure 6: Installing the system unit
Ê
Push the system unit into the rack as far as it will go.
Ê
Fasten the system unit to the rack using the two knurled screws.
Ê
Reinstall the server blades, storage blades, connection blades and
management blades, power supply units, fan units and dummy modules in
their old bays, see
"Installing/removing the system unit" on page 46 . For
assembly instructions see chapter "Hot-plug components" on page 85 .
V
CAUTION!
Incorrect fitting of the system unit may lead to serious errors.
Removing the system unit
V
CAUTION!
● Make a note of the positions of the individual server blades, storage
blades, connection blades, power supply units and fan modules in the
system unit for reinstallation.
To remove the system unit, follow the installation instructions in reverse.
